Description
Overview

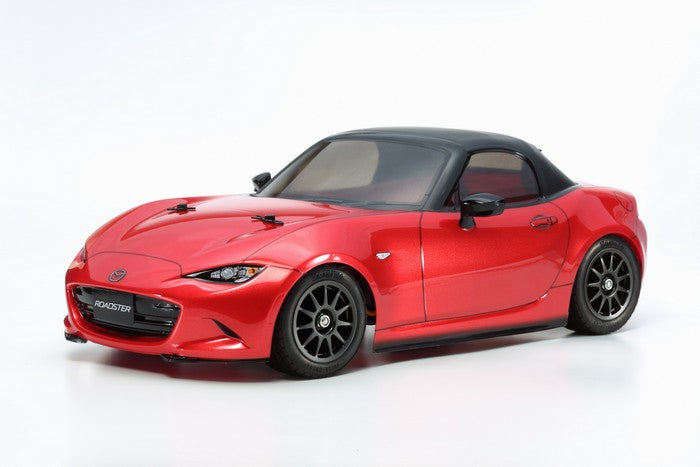

The Tamiya Mazda MX-5 is a spirited 1/10 scale roadster that captures the essence of lightweight driving enjoyment. This kit recreates the fourth-generation Mazda MX-5 (known as the Roadster in Japan and Miata in North America), an iconic platform with heritage dating back to 1989 and total sales exceeding 950,000 units worldwide. The real MX-5 was designed to amplify the thrill of driving through its punchy engine, lightweight construction, and nimble handling—qualities that translate perfectly to this RC model.
Built on Tamiya's M-05 front-wheel-drive chassis with a 225mm (M) wheelbase, this kit delivers the compact, agile character that makes M-chassis cars so enjoyable. The lightweight semi-monocoque frame provides optimized weight distribution and a low center of gravity for excellent stability during high-speed cornering. This version includes the Hobbywing THW-1060 brushed ESC and 540 motor, making it ready to build and drive with minimal additional purchases.
Key Features
- 1/10 scale R/C model assembly kit
- Authentic fourth-generation Mazda MX-5 polycarbonate body
- Dynamic closed-top roadster styling
- Separate plastic side mirror parts
- Stickers for Japanese, U.S., and international market versions
- M-05 front-wheel-drive chassis with 225mm (M) wheelbase
- Three selectable wheelbase options (210mm, 225mm, 239mm)
- Hobbywing THW-1060 waterproof brushed ESC included
- 540-type brushed motor included
- Wide range of M-chassis option parts available
Chassis Features
- Lightweight semi-monocoque frame construction
- Front-wheel-drive (FWD) layout
- Low center of gravity for stability
- Optimized weight distribution
- 4-wheel independent double wishbone suspension
- Friction dampers (upgradeable to oil-filled)
- Gear differential
- 3-piece steering linkage for precise control
- Adjustable wheelbase positions
Performance Benefits
- Excellent stability during high-speed cornering
- Nimble, responsive FWD handling
- Good balance from optimized weight distribution
- Smooth steering response
- Predictable behavior rewards smooth driving
- Perfect for tight tracks and parking lot fun
- Extensive upgrade path available
Usage Notes
The M-05 chassis excels on smooth paved surfaces and is well-suited for parking lot running and tight indoor tracks. The front-wheel-drive layout rewards smooth throttle inputs and precise steering. Standard plastic bushings can be upgraded to ball bearings for improved performance. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/10 |
| Wheelbase | 225mm (M configuration) |
| Wheelbase Options | 210mm / 225mm / 239mm |
| Drive | Front-wheel drive (FWD) |
| Chassis | M-05 |
| Chassis Material | Plastic |
| Body Material | Polycarbonate |
| Motor | 540-type brushed |
| ESC | Hobbywing THW-1060 (included) |
| Suspension | 4-wheel independent double wishbone |
| Dampers | Friction type |
| Differential | Gear type |
| Bearings | Plastic bushings (upgradeable) |
| Manufacturer | Tamiya |
| Item Number | 58624-A |
What's Included
- Complete unassembled M-05 chassis kit
- Polycarbonate Mazda MX-5 body (clear)
- Separate plastic side mirrors
- M-chassis wheels and tires
- Multi-market decal sheet
- 540-type brushed motor
- Hobbywing THW-1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Mazda MX-5 M-05 captures the spirit of lightweight driving enjoyment with its authentic roadster styling and nimble FWD handling. Built on the proven M-05 chassis with included motor and ESC, this kit delivers the fun, responsive character that has made the real MX-5 a legend. Perfect for M-chassis enthusiasts, sports car fans, and anyone seeking a compact, engaging RC driving experience.
