Overview

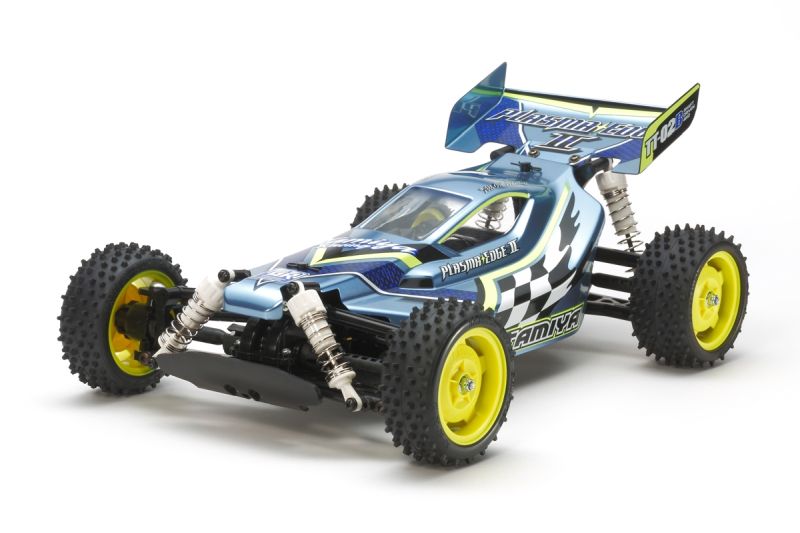

The Tamiya Plasma Edge II is an exciting 1/10 scale 4WD off-road buggy assembly kit that combines classic styling with the modern TT-02B chassis platform. This shaft-driven buggy features a stylish polycarbonate body and rear wing, fluorescent yellow star dish wheels, and white CVA oil shock absorbers that create a distinctive, eye-catching appearance. The TT-02B chassis is specifically designed for off-road buggy applications, offering hassle-free assembly, easy maintenance, and superb controllability on rough terrain.
The Plasma Edge II carries forward Tamiya's tradition of creating buggies that are both visually striking and genuinely capable off-road. The extended suspension arms, sealed gearboxes, and protective motor cover make this platform ideal for everything from backyard bashing to organized club racing. With CVA oil dampers providing excellent shock absorption and the shaft-driven 4WD system delivering confident traction, the Plasma Edge II is ready for jumps, bumps, and aggressive cornering right out of the box.
Key Features
- 1/10 scale electric 4WD off-road buggy assembly kit
- Stylish polycarbonate body with rear wing
- TT-02B dedicated off-road buggy chassis
- Shaft-driven 4WD drivetrain
- 4-wheel independent double wishbone suspension
- Long suspension arms for increased travel

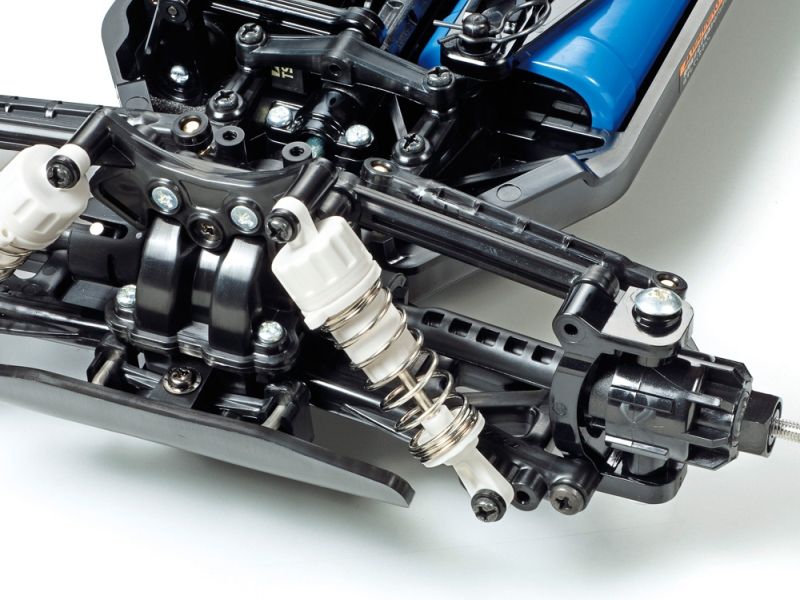

- White CVA oil-filled shock absorbers

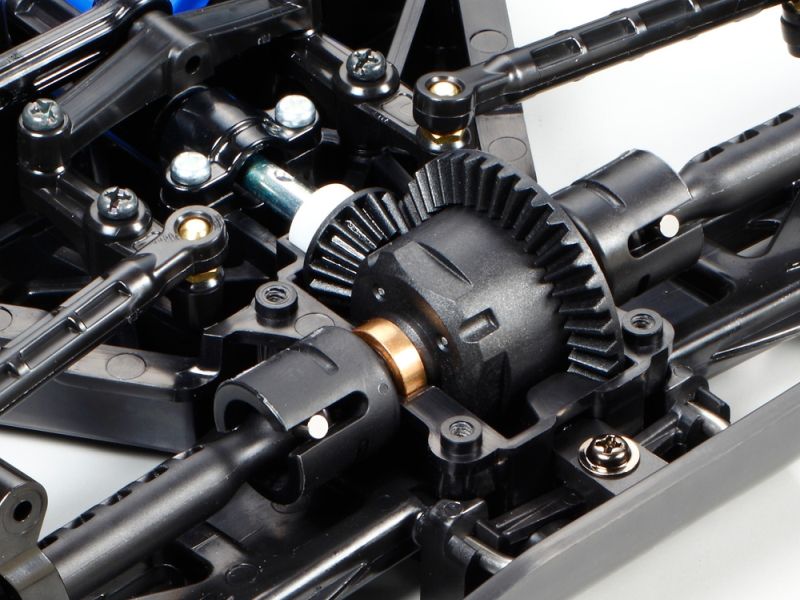

- Front and rear sealed 4-bevel differentials
- Fluorescent yellow star dish wheels
- Square spike off-road tires

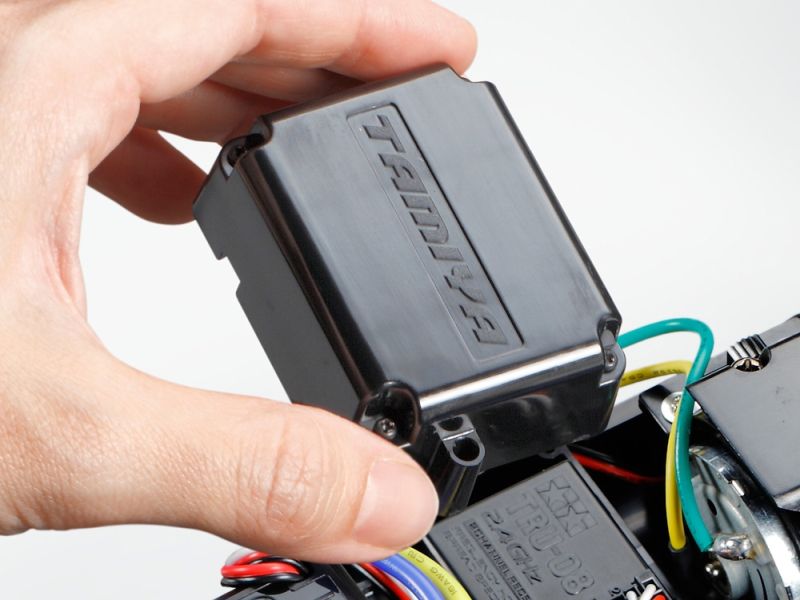

- Protective motor cover and receiver case
- 540 brushed motor included
- 4 adjustable gear ratio options
Chassis Features
- Skid-shaped bathtub frame for off-road durability
- 266mm wheelbase
- 217mm front / 208mm rear tread
- Sealed front and rear gearboxes
- Easy top-access for maintenance
- Identical left/right suspension arms
- Protective receiver case and motor cover
- 3-piece steering tie-rod
Performance Benefits
- CVA oil dampers absorb jumps and rough terrain
- Long suspension arms increase wheel travel
- Sealed differentials keep dirt out
- 4WD provides confident traction in all conditions
- Square spike tires grip loose surfaces effectively
- Easy gear ratio changes for speed/torque tuning
Usage Notes
- Designed for dirt, gravel, grass, and off-road surfaces
- Ideal for backyard bashing and club-level racing
- Suitable for beginner to intermediate builders
- Motor cover protects from debris
- Polycarbonate body requires painting before assembly
- ESC required (sold separately)
- Plastic bushings can be upgraded to ball bearings
Technical Specs
| Specification |
Detail |
| Scale |
1/10 |
| Length |
370mm (14.6") |
| Width |
250mm (9.8") |
| Height |
160mm (6.3") |
| Wheelbase |
266mm |
| Tread (F/R) |
217mm / 208mm |
| Drivetrain |
4WD Shaft-Driven |
| Chassis |
TT-02B |
| Motor |
540 Brushed Type (included) |
| Suspension |
4-Wheel Independent Double Wishbone |
| Dampers |
CVA Oil-Filled (White) |
| Differential |
4-Bevel Sealed (F/R) |
| Gear Ratio |
10.71:1 (adjustable with optional pinions) |
| Front Tires |
32mm width / 82mm diameter (Square Spike) |
| Rear Tires |
41mm width / 82mm diameter (Square Spike) |
What's Included
- Tamiya Plasma Edge II TT-02B assembly kit
- Polycarbonate body and rear wing
- 540 brushed motor
- Fluorescent yellow star dish wheels
- Square spike off-road tires (front and rear)
- White CVA oil-filled dampers
- Marking sticker sheet
- Illustrated instruction manual
Needed to Complete
- Electronic Speed Controller (ESC)
- 2-channel radio system (transmitter and receiver)
- Steering servo
- 7.2V battery pack and compatible charger
- Tamiya PS polycarbonate spray paint
- AA batteries for transmitter
Summary
The Tamiya Plasma Edge II TT-02B delivers classic buggy styling with modern off-road capability. The combination of CVA oil dampers, sealed differentials, and the purpose-built TT-02B chassis creates a platform that handles rough terrain with confidence while remaining accessible for hobbyists of all skill levels. Whether you're looking for a capable basher or a foundation for club racing, the Plasma Edge II offers eye-catching looks and proven performance in an easy-to-maintain package.
