Overview

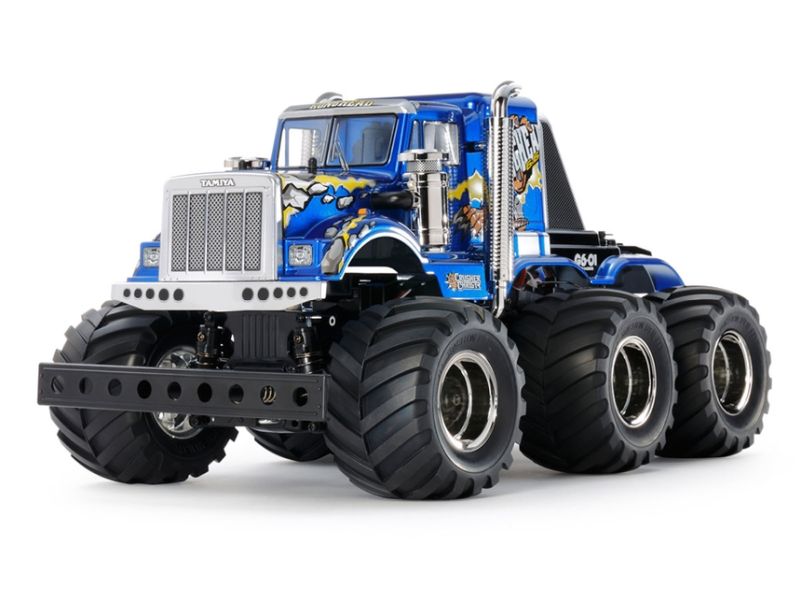

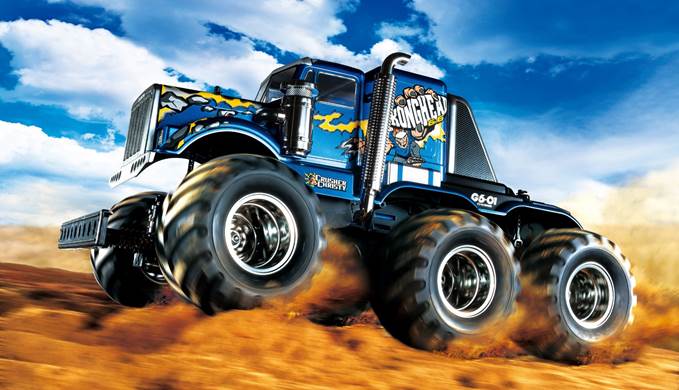

The Tamiya Konghead 6x6 holds the distinction of being Tamiya's first-ever six-wheeled RC vehicle, representing a bold leap in monster truck engineering. This commanding 1/18 scale beast features a polycarbonate body inspired by Tamiya's classic Bullhead monster truck, riding atop the innovative G6-01 gear-driven 6WD chassis. With its aggressive semi-truck styling, metal-plated chrome details, and massive six-wheel presence, the Konghead delivers both visual impact and extraordinary off-road capability.
Built on the G6-01 platform that shares DNA with Tamiya's proven GF-01 wheelie machine, the Konghead utilizes three gear differentials to deliver power to all six wheels, enabling it to conquer slopes of up to 40 degrees. The sealed gearbox protects internal components from dust and debris, while the 6-wheel independent suspension keeps all tires planted across challenging terrain. Whether you're tackling dirt trails, climbing obstacles, or simply enjoying the unique driving experience, the Konghead offers RC fun unlike anything else available.
Key Features
- 1/18 scale R/C model assembly kit with 420mm length, 270mm width, 280mm height
- Tamiya's first-ever six-wheeled RC vehicle
- Polycarbonate body inspired by classic Bullhead monster truck
- Metal-plated air cleaners and exhaust stacks from Bullhead design
- Chrome-plated deep dish wheel rims
- G6-01 gear-driven 6WD chassis
- Three gear differentials (front, center, rear)
- Capable of climbing slopes up to 40 degrees
- Large 113mm diameter off-road tires
- 540-type brushed motor included
- Optional 4-wheel steering conversion capability

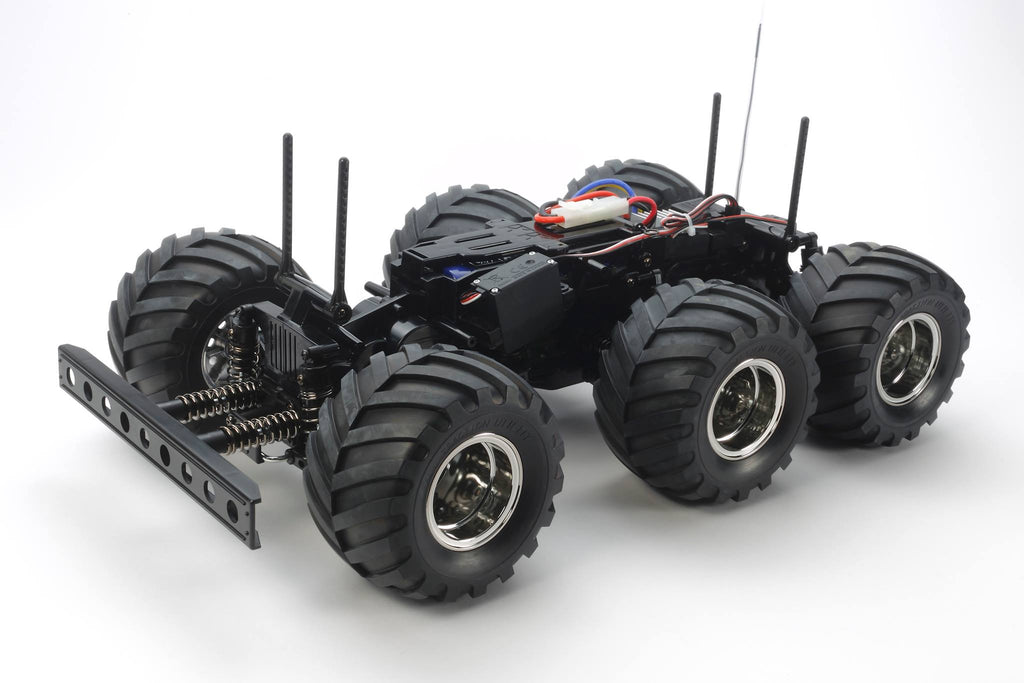

Chassis Features
- Tough slimline ABS monocoque frame
- Front-center-mounted motor position
- Sealed gearbox integrated into frame
- Three built-in gear differentials for smooth cornering
- 6-wheel independent double wishbone suspension
- Friction dampers on all six corners
- 2-piece steering tie-rod with left-mounted servo
- Dual wheelbase: 173mm + 126mm
- Compatible with many GF-01 hop-up and spare parts
Performance Benefits
- Exceptional traction from six driven wheels
- Superior climbing ability on 40-degree slopes
- Excellent stability over rough terrain
- All six wheels maintain ground contact
- Smooth cornering via triple differential system
- Versatile multi-terrain performance
- Optional 4WS for tighter turning radius
Usage Notes
The Konghead excels on dirt, gravel, grass, and pavement with its versatile 6WD system. Standard build uses front-wheel steering, with optional conversion to 4-wheel steering requiring a 4WS-compatible transmitter and additional RC equipment. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
| Specification |
Detail |
| Scale |
1/18 |
| Length |
420mm |
| Width |
270mm |
| Height |
280mm |
| Wheelbase |
173mm + 126mm |
| Tire Diameter |
113mm |
| Drive |
Gear-driven 6WD |
| Chassis |
G6-01 |
| Chassis Material |
ABS Plastic |
| Body Material |
Polycarbonate |
| Motor |
540-type brushed |
| Suspension |
6-wheel independent double wishbone |
| Dampers |
Friction type |
| Differentials |
3 gear differentials |
| Bearings |
Plastic bushings (upgradeable) |
| Manufacturer |
Tamiya |
| Item Number |
58646 |
What's Included
- Complete unassembled G6-01 chassis kit
- Polycarbonate Konghead body (clear)
- Metal-plated air cleaners and exhaust stacks
- Chrome-plated deep dish wheels (6)
- 113mm diameter off-road tires (6)
- Decal sheet
- 540-type brushed motor
- Comprehensive instruction manual
Needed to Complete
- Electronic speed controller (ESC)
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Konghead 6x6 G6-01 delivers a groundbreaking six-wheel-drive experience with its Bullhead-inspired styling, chrome details, and exceptional climbing capability. As Tamiya's first 6WD vehicle, it offers unique performance and head-turning presence. Perfect for monster truck enthusiasts, off-road fans, and anyone seeking an RC experience that stands apart from the ordinary.
