Description
Overview

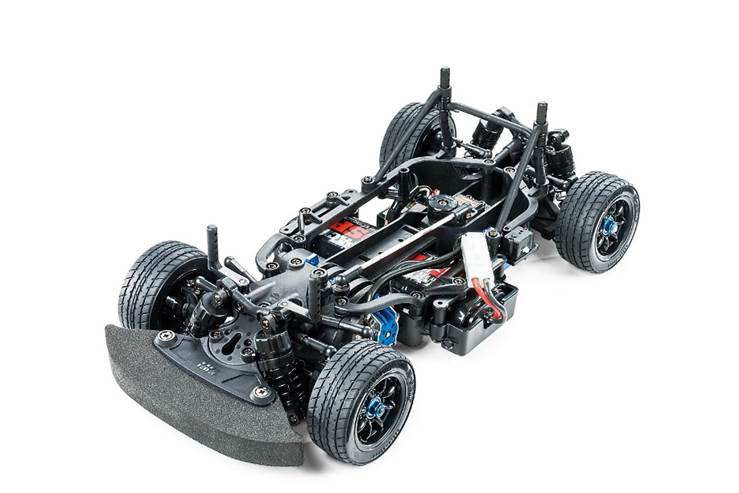

The Tamiya M-07 Concept is a purpose-built 1/10 scale front-wheel-drive competition chassis designed for high-grip on-road racing and serious M-chassis club competition. Representing a major evolution in M-chassis design, the M-07 Concept features a rigid, narrow monocoque frame with optimized weight distribution and race-grade suspension geometry for precise handling and consistent lap times. This chassis is engineered for drivers who demand sharp turn-in, strong corner speed, and predictable FWD behavior at the limit.
Built around a slim, vertically oriented monocoque chassis, the M-07 Concept concentrates mass near the centerline for improved balance and reduced rotational inertia. The front-mounted motor and drivetrain deliver authentic FWD dynamics with excellent traction under acceleration and stable corner exit behavior. With CVA oil dampers, full ball bearings, oil-filled gear differential, and universal drive shafts as standard equipment, the M-07 Concept is ready for competitive racing right out of the box.
Key Features
- 1/10 scale R/C chassis assembly kit with 332mm length, 164mm width
- Purpose-built M-07 Concept competition platform
- Rigid monocoque frame with detachable lower section
- Two selectable wheelbases: 225mm (M) or 239mm (L)
- Oil-filled gear differential for consistent drive
- Universal drive shafts for smooth power delivery
- CVA oil dampers included as standard
- Full ball bearing set throughout drivetrain
- Turnbuckle upper arms for easy camber adjustment
- Hi-torque servo saver included
- Easy-access differential removable from underside
Chassis Features
- Slim monocoque chassis concentrates mass at centerline
- Detachable lower deck section for maintenance
- Front-midship motor position for FWD balance
- Long suspension arms optimize damper leverage ratio
- Dedicated steering linkage components
- Adjustable rear toe angle via spacers
- 3-piece steering tie-rod for precise control
- Compatible with IFMAR Li-Po cell-type battery packs
- Compatible with low-profile servos
Performance Benefits
- Sharp, responsive turn-in from rigid monocoque
- Excellent front traction under acceleration
- Stable corner exit behavior
- Consistent handling from oil-filled differential
- Smooth suspension action from CVA dampers
- Reduced friction via full ball bearings
- Quick setup changes with easy stabilizer access
- Excellent driver feedback for tuning clarity
Usage Notes
The M-07 Concept is designed for high-grip asphalt and carpet track surfaces. The FWD layout rewards smooth throttle application and precise steering inputs, making it ideal for technical tracks with tight corners. The selectable wheelbase allows compatibility with various M-chassis body sets. Recommended for intermediate to advanced builders with M-chassis racing experience. Chassis kit only - body, motor, tires, and electronics sold separately.
Fitment
Compatible RC vehicles: Tamiya M-07.
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/10 |
| Length | 332mm (including bumper) |
| Width | 164mm |
| Wheelbase Options | 225mm (M) / 239mm (L) |
| Drive | Front-wheel drive (FWD) |
| Chassis | M-07 Concept |
| Frame Type | Monocoque |
| Chassis Material | FRP fiberglass reinforced plastic |
| Suspension | 4-wheel independent double wishbone |
| Dampers | CVA oil-filled |
| Differential | Oil-filled gear type |
| Gear Ratio | 5.78:1 (with 20T pinion) |
| Gear Ratio Range | 7.22:1 - 4.81:1 (with optional pinions) |
| Bearings | Full ball bearings |
| Manufacturer | Tamiya |
| Item Number | 58647 |
What's Included
- Complete unassembled M-07 Concept chassis kit
- Monocoque frame with detachable lower section
- Long suspension arms (front and rear)
- CVA oil dampers (4)
- Oil-filled gear differential
- Universal drive shafts
- Full ball bearing set
- Turnbuckle upper arms
- Hi-torque servo saver
- Comprehensive instruction manual
Needed to Complete
- M-chassis compatible body set
- Type 540 brushed or compatible brushless motor
- Electronic speed controller (ESC)
- 2-channel radio system (transmitter and receiver)
- Standard-size or low-profile steering servo
- 7.2V NiMH or 7.4V 2S LiPo battery pack
- Compatible battery charger
- M-chassis wheels and tires
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya M-07 Concept delivers competition-grade M-chassis performance with its rigid monocoque frame, oil-filled differential, CVA dampers, and full ball bearings. Designed for serious FWD racing on high-grip surfaces, this chassis offers excellent feedback, easy tuning access, and selectable wheelbases for body compatibility. Perfect for M-chassis club racers, FWD enthusiasts, and drivers who demand precise, responsive handling from their compact racing platform.
