Description
Overview

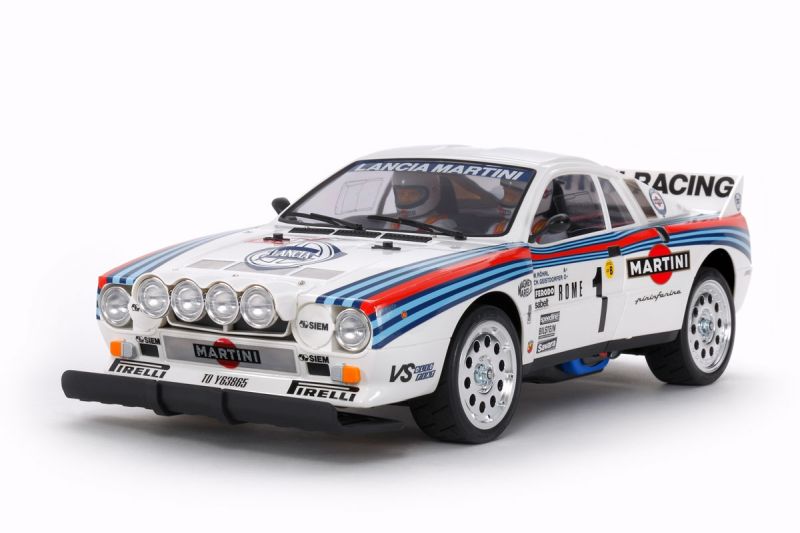

The Tamiya Lancia 037 Rally is an exquisite 1/10 scale RC assembly kit that recreates one of motorsport's most legendary Group B rally cars. Developed specifically for the demanding Group B regulations, the 037 Rally was a rear-wheel-drive machine with a race-spec chassis, midship-mounted 300+ horsepower supercharged 2-liter DOHC inline-4 engine, and an aggressive Pininfarina-designed body. This car dominated the 1983 season, taking a stunning one-two finish at the Monte Carlo Rally opener and continuing with victories in five more events to claim the Manufacturers' Championship.
Tamiya's recreation is a premium offering featuring a highly detailed injection-molded ABS plastic body rather than the typical polycarbonate shell, providing exceptional realism. The kit includes metal-plated light cases, interior parts with driver and co-driver figures, and comprehensive sponsor decals. Mounted on the short-wheelbase TA-02S chassis with CVA oil dampers and ball differential, this kit delivers both museum-quality detail and genuine driving enjoyment.
Key Features
- 1/10 scale electric 4WD touring/rally car assembly kit
- Highly detailed injection-molded ABS plastic body
- Metal-plated light cases for headlights, taillights, and fog lamps
- Separate windshield wipers and side mirror parts
- Interior with driver and co-driver figures plus dashboard
- TA-02S short-wheelbase shaft-driven 4WD chassis
- Rear ball differential for precise handling
- Front gear differential
- 4-wheel independent double wishbone suspension
- CVA oil-filled shock dampers
- Semi-gloss plated racing wheels
- Racing semi-slick tires
- 540 brushed motor included
- TBLE-02S ESC included (brushless compatible)
Racing Heritage
The Lancia 037 Rally holds a unique place in motorsport history as the last rear-wheel-drive car to win the World Rally Championship. In an era when all-wheel-drive was becoming dominant, the mid-engined 037 proved that superior chassis balance and driver skill could overcome the traction advantage of 4WD competitors. The 1983 championship victory remains one of rally racing's most celebrated achievements.

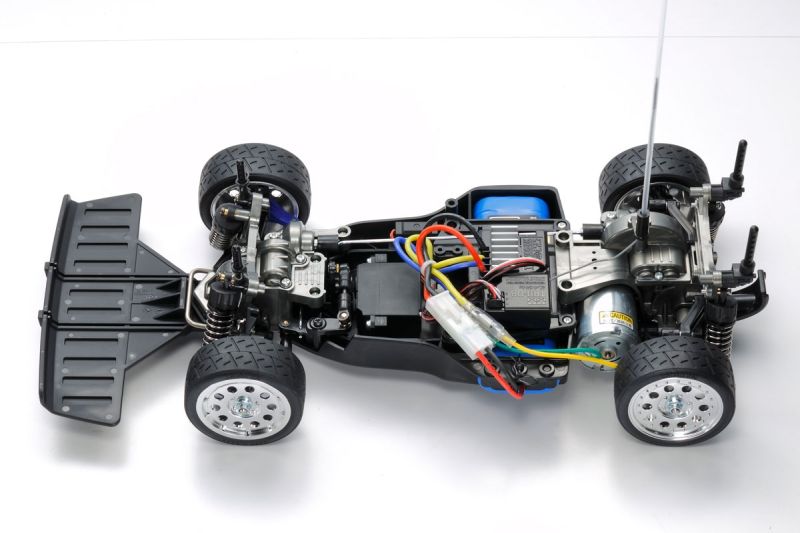

Chassis Features
- TA-02S short-wheelbase bathtub frame
- 236mm wheelbase optimized for compact rally body
- 152mm front and rear tread
- Shaft-driven 4WD system
- Rear ball differential for precise corner exit
- Front 3-bevel gear differential
- 8.59:1 gear ratio
- ABS plastic construction
Performance Benefits
- CVA oil dampers provide excellent shock absorption
- Ball differential enables precise throttle control
- Short wheelbase enhances agility
- Low center of gravity for stability
- Semi-slick tires optimize grip on smooth surfaces
- TBLE-02S ESC supports brushless upgrades (21.5T limit)
Usage Notes
- Designed for smooth paved surfaces and on-road use
- Premium kit ideal for collectors and display
- Suitable for intermediate to advanced builders
- ABS body requires TS synthetic lacquer paint
- Highly detailed interior adds to scale realism
- Plastic bushings can be upgraded to ball bearings
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/10 |
| Length | 422mm (16.6") |
| Width | 186mm (7.3") |
| Height | 132mm (5.2") |
| Wheelbase | 236mm |
| Tread (F/R) | 152mm |
| Drivetrain | 4WD Shaft-Driven |
| Chassis | TA-02S |
| Motor | 540 Brushed Type (included) |
| ESC | TBLE-02S (brushless compatible) |
| Suspension | 4-Wheel Independent Double Wishbone |
| Dampers | CVA Oil-Filled |
| Differential | Ball (Rear) / Gear (Front) |
| Gear Ratio | 8.59:1 |
| Tire Width/Diameter | 27mm / 65mm |
| Body Material | ABS Plastic (Injection Molded) |
What's Included
- Tamiya Lancia 037 Rally TA-02S assembly kit
- Injection-molded ABS plastic body
- Metal-plated headlight, taillight, and fog lamp cases
- Separate wipers and side mirrors
- Interior with driver, co-driver, and dashboard
- 540 brushed motor
- TBLE-02S electronic speed controller
- Semi-gloss plated racing wheels
- Racing semi-slick tires
- Comprehensive sponsor decal sheet
- Illustrated instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo
- 7.2V battery pack and compatible charger
- Tamiya TS synthetic lacquer spray paint
- AA batteries for transmitter
Summary
The Tamiya Lancia 037 Rally TA-02S is a premium kit that celebrates one of rallying's greatest champions. With its exceptional injection-molded body, museum-quality details including interior figures, and the capable TA-02S chassis with CVA dampers, this kit delivers both collector-grade authenticity and genuine driving enjoyment. For rally enthusiasts, Group B historians, and hobbyists seeking something truly special, the Lancia 037 Rally offers an unmatched combination of heritage and craftsmanship.
