Overview

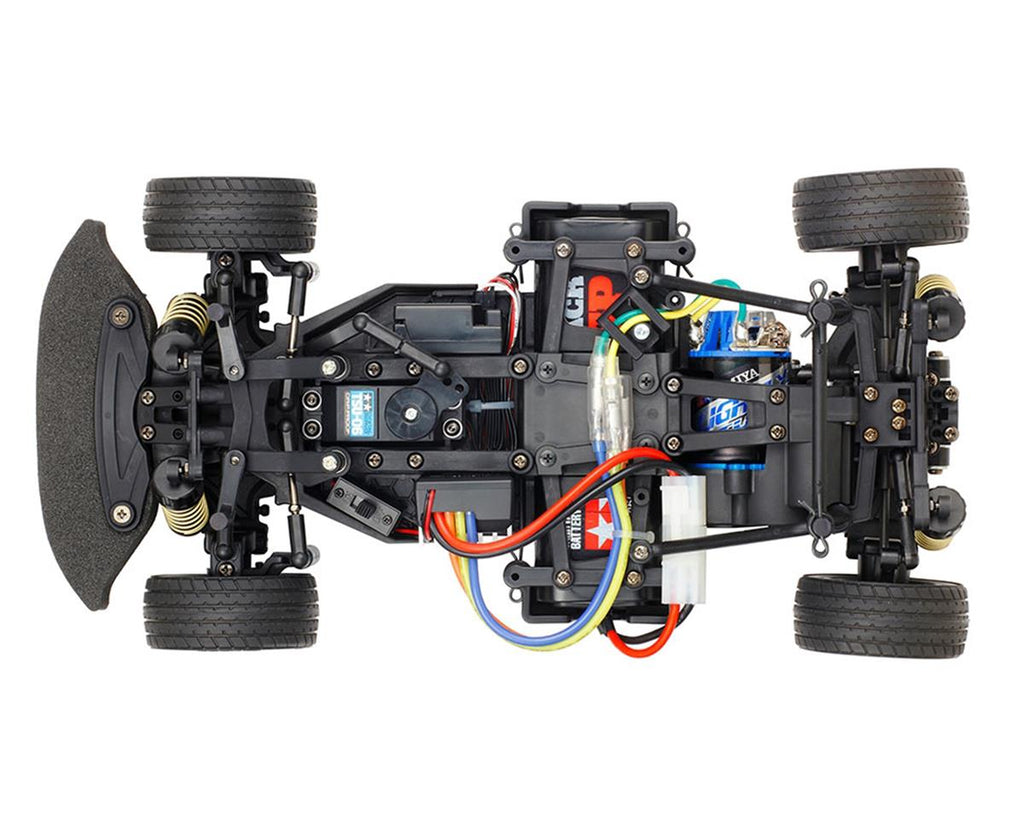

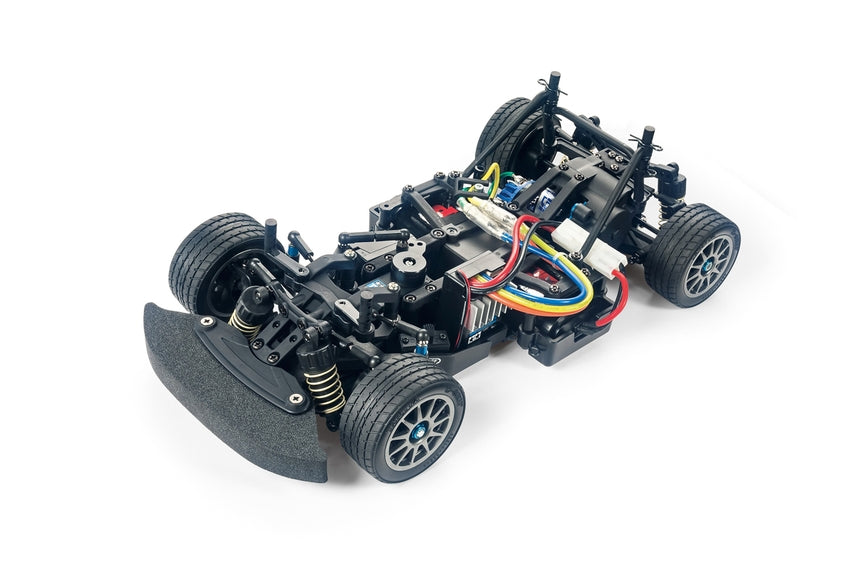

The Tamiya M-08 Concept Chassis Kit represents the pinnacle of M-chassis rear-wheel-drive engineering. This high-performance 1/10 scale R/C chassis assembly kit employs a midship motor, rear-wheel-drive layout for superior rear traction, combined with a main frame split into front and rear sections that allows three different wheelbase configurations. The M-08 delivers responsive drive characteristics and competition-ready performance for serious M-chassis enthusiasts.
Built around a rigid monocoque construction, the M-08 offers fuss-free maintenance with easy-access differential that can be removed from the underside with minimal disassembly. CVA oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for extensive setup options, while the silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential, and universal drive shafts. This chassis-only kit is compatible with appropriately-sized existing Tamiya M-chassis body sets.
Key Features
- 1/10 scale R/C chassis assembly kit

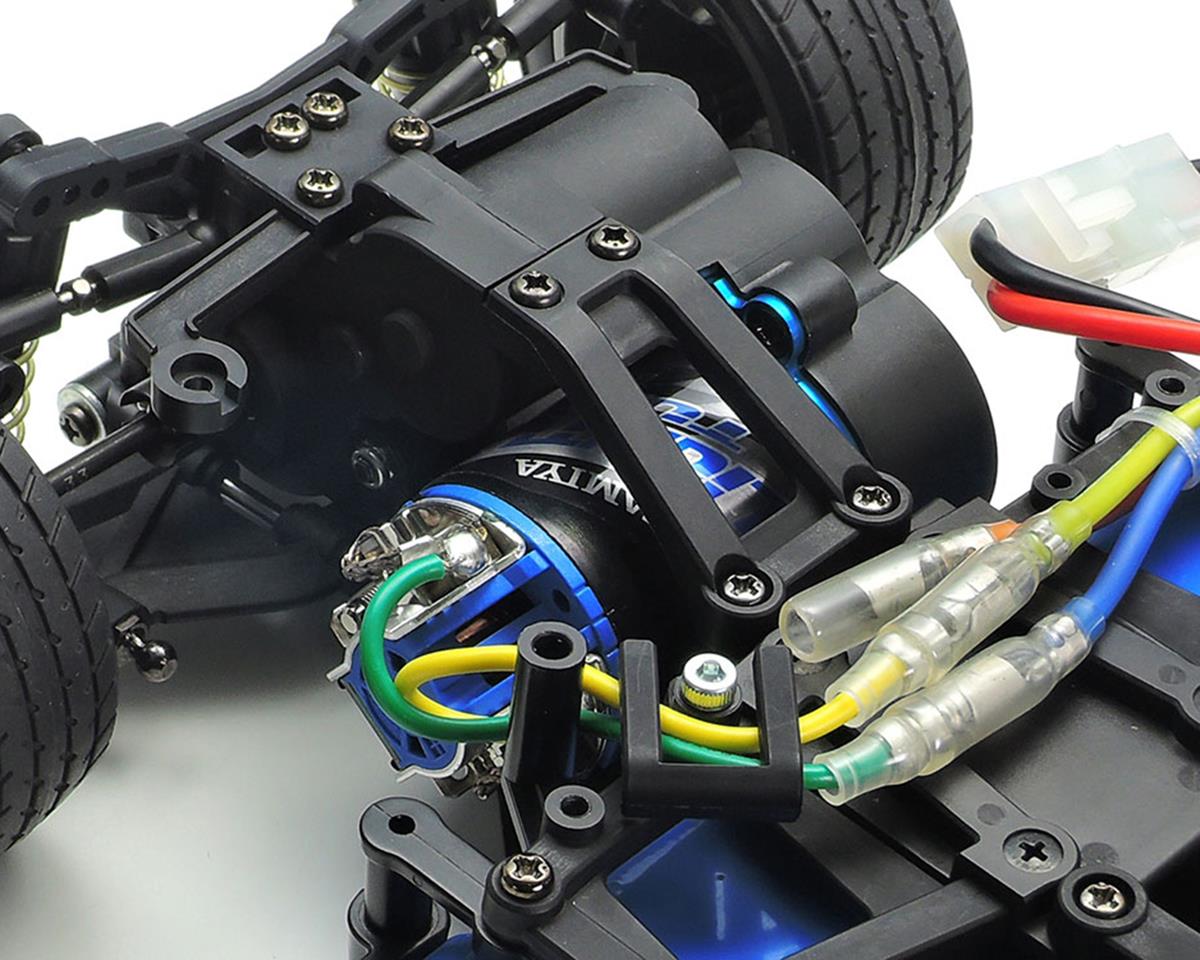

- Midship motor, rear-wheel-drive (MR) layout
- Main frame split into front and rear sections
- Three wheelbase options: 210mm (S), 225mm (M), 239mm (L)
- CVA oil dampers with long suspension arms

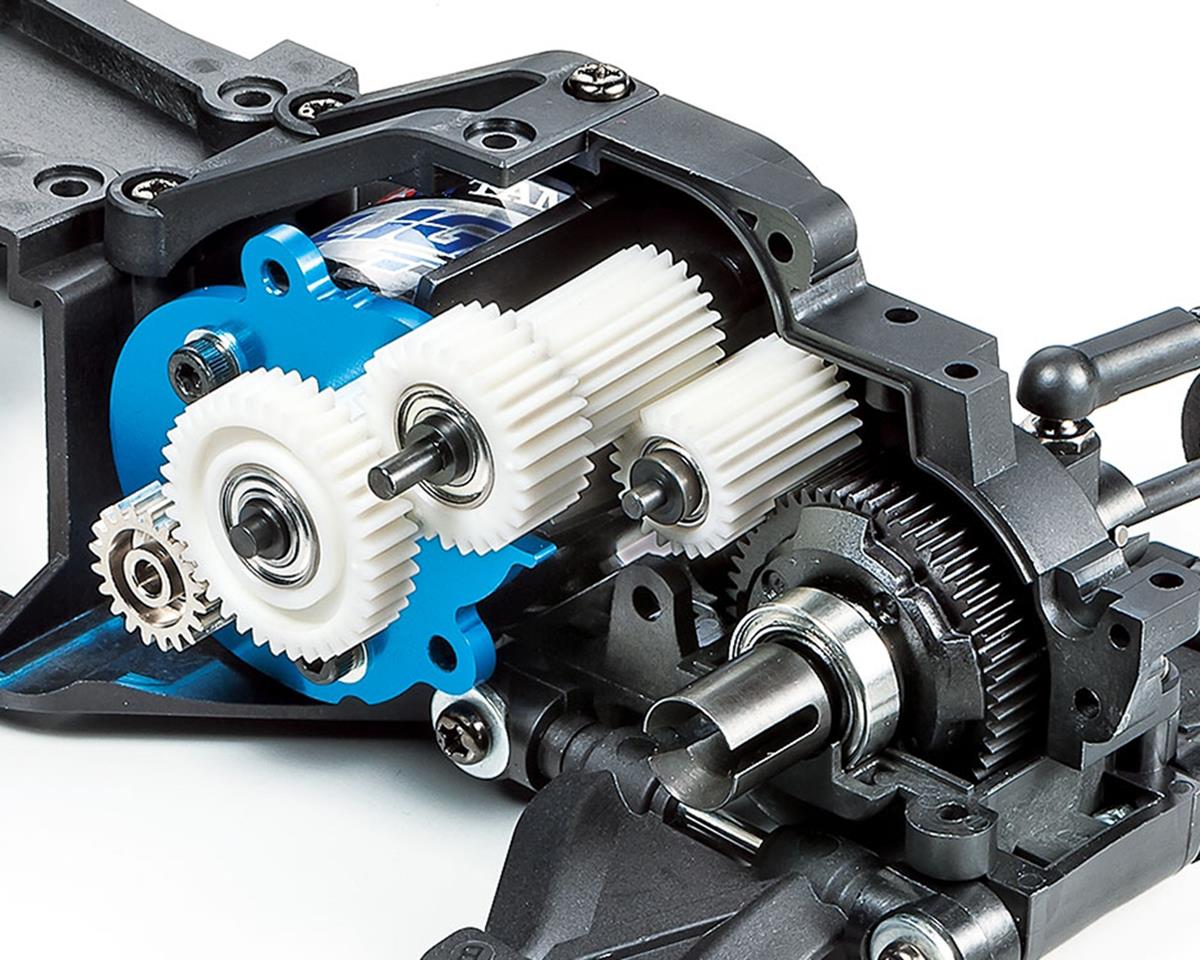

- Full ball bearing drivetrain
- Oil-filled gear differential with easy underside access
- Universal drive shafts

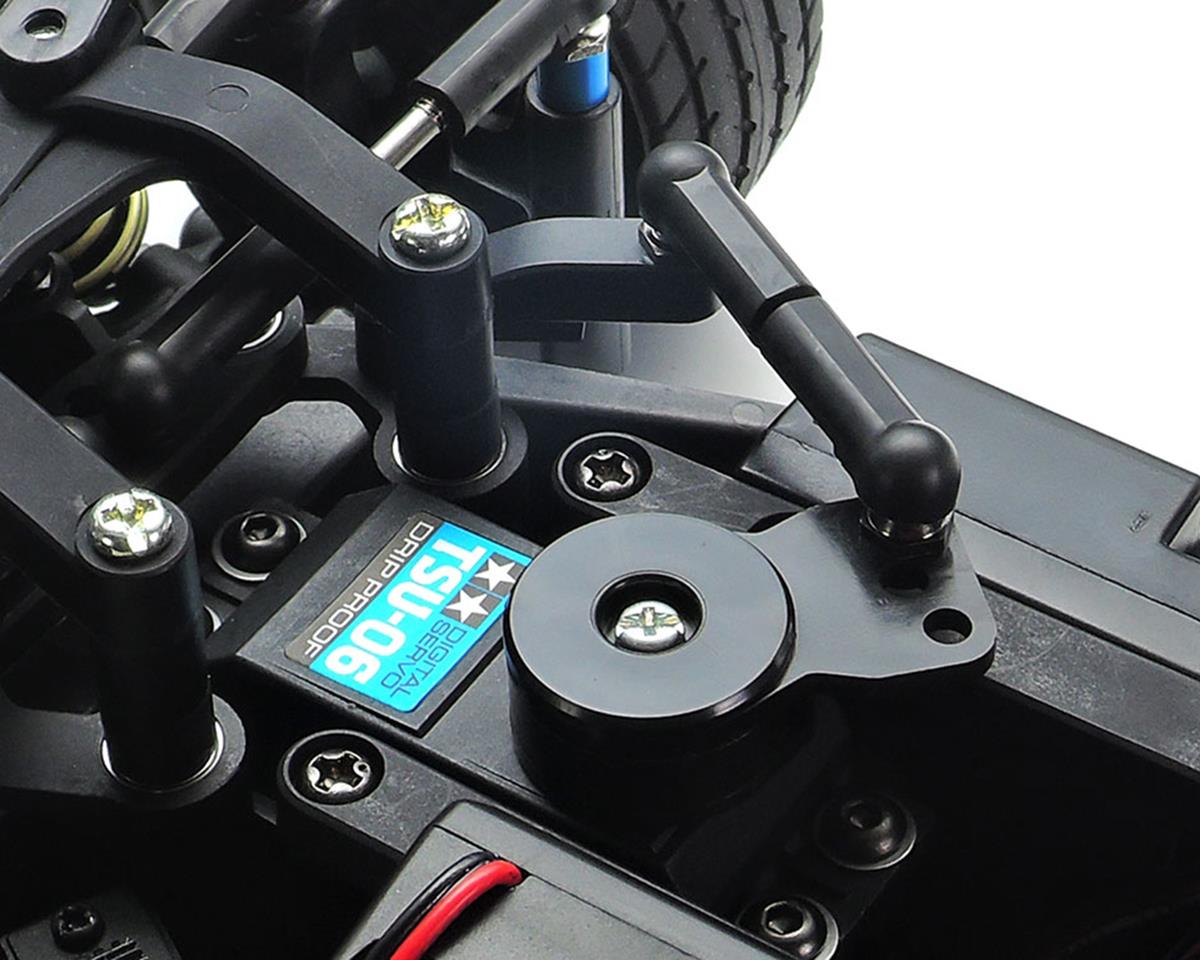

- Hi-torque servo saver
- Updated front suspension mounts (0°) and hub carriers (2°)
- Compatible with M-06 chassis bodies
- Compatible with M-07 Concept Hop-Up Option parts
Chassis Features
- Rigid monocoque frame construction
- Detachable front (suspension/servo) and rear (motor/battery) sections
- FRP fiberglass reinforced plastic construction
- Oil-filled gear differential from M-07

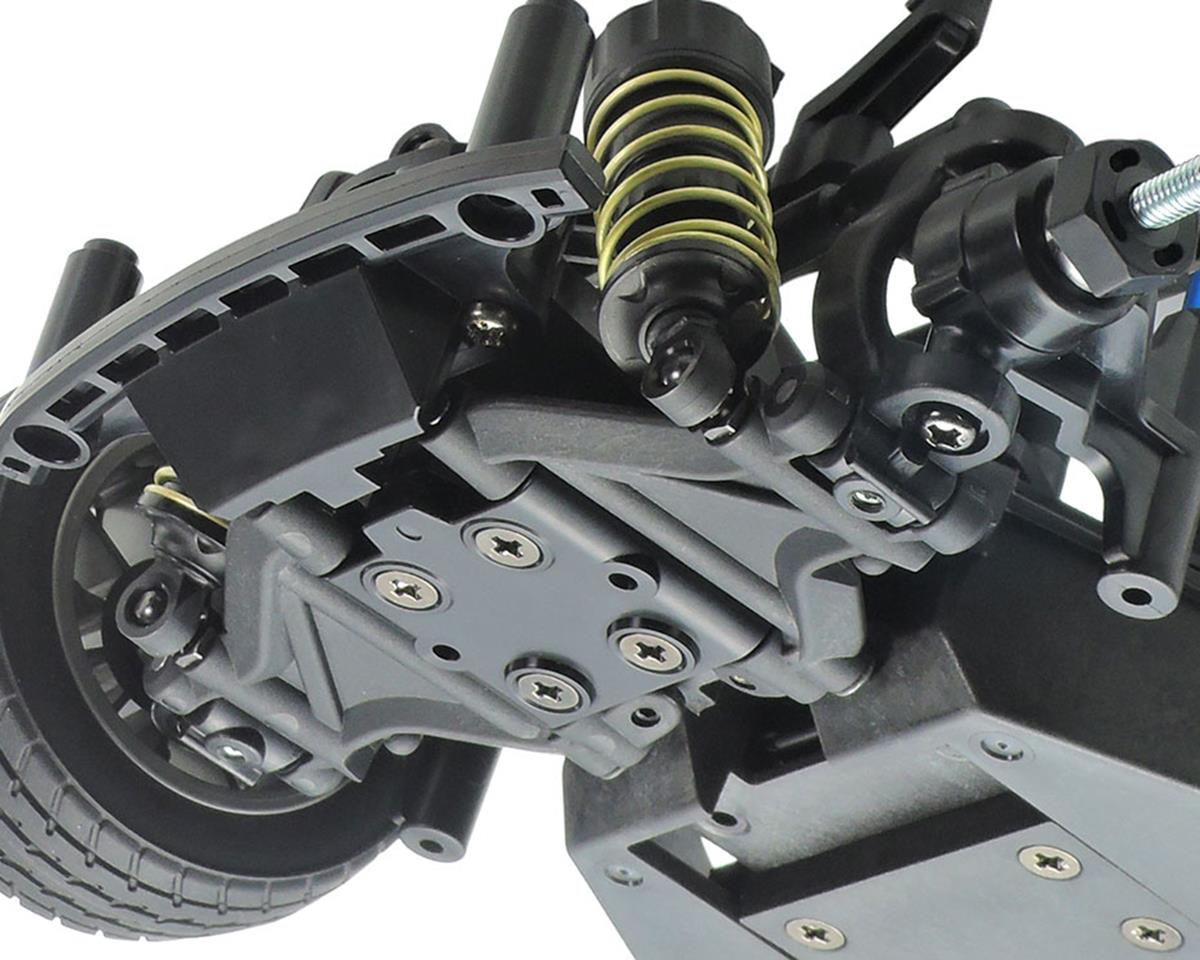

- 0-degree suspension mount with 2-degree hub carrier (2° total caster)
- Proven M-07 Concept suspension arms, uprights, and aluminum parts

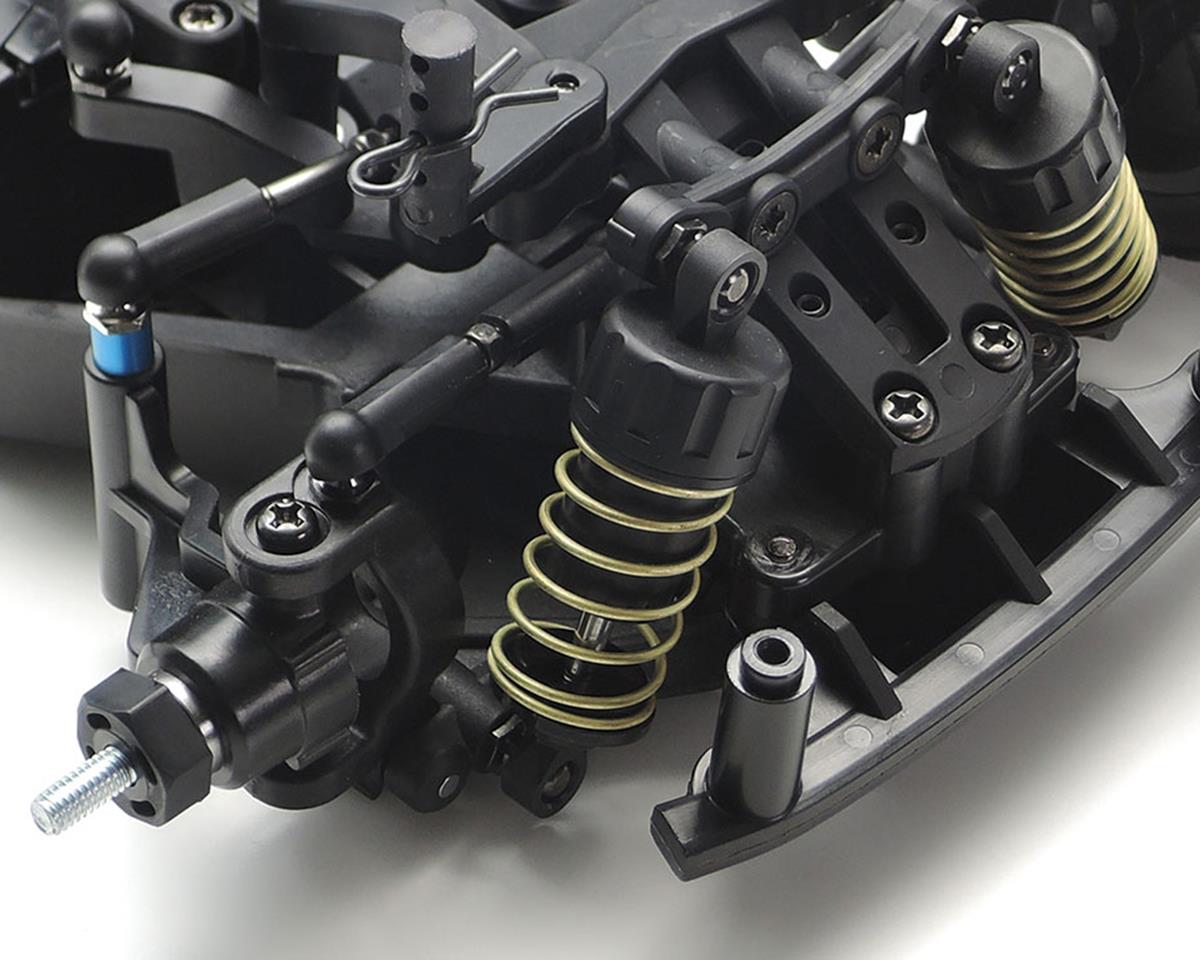

- Smooth 4-wheel double wishbone suspension
- Long suspension arms for ground-hugging drive
Performance Benefits
- Superior rear traction from midship motor layout
- Responsive, engaging rear-wheel-drive handling
- CVA oil dampers for precise suspension control
- Full ball bearings minimize friction and power loss
- Universal drive shafts for smooth power delivery
- Easy-access differential for quick maintenance
- Wide range of setup options for tuning
- Extensive Hop-Up Option parts availability
Usage Notes
The M-08 Concept is designed for on-road driving on smooth paved surfaces. The rear-wheel-drive layout provides exciting, engaging handling that rewards skilled driving. This is a chassis-only kit—body, wheels, tires, motor, ESC, and radio equipment are sold separately. Compatible with M-06 bodies and M-07 Concept Hop-Up Option parts. Recommended for experienced builders seeking a competition-capable platform.
Fitment
Compatible RC vehicles: Tamiya M-08 Concept.
Technical Specs
| Scale: |
1/10 |
| Wheelbase: |
210mm (S) / 225mm (M) / 239mm (L) |
| Drive: |
Rear-wheel drive (RWD) |
| Motor Position: |
Midship (MR layout) |
| Chassis: |
M-08 Concept |
| Chassis Material: |
FRP Fiberglass Reinforced Plastic |
| Suspension: |
4-wheel double wishbone |
| Dampers: |
CVA oil-filled |
| Differential: |
Oil-filled gear type |
| Bearings: |
Full ball bearings |
| Manufacturer: |
Tamiya |
| Item Number: |
58669 |
What's Included
- Complete unassembled M-08 Concept chassis kit
- CVA oil dampers
- Full ball bearing set
- Oil-filled gear differential
- Universal drive shafts
- Hi-torque servo saver
- Comprehensive instruction manual
Needed to Complete
- M-chassis body (M-06 compatible)
- M-chassis wheels and tires
- 540-type motor
- Electronic speed controller (ESC)
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya M-08 Concept Chassis Kit delivers high-performance rear-wheel-drive M-chassis engineering with its midship motor layout, three wheelbase options, and competition-ready features. With full ball bearings, CVA oil dampers, and extensive Hop-Up compatibility, this chassis is ideal for experienced RC enthusiasts seeking an engaging, tunable platform for club racing or spirited driving.
