Description
Overview

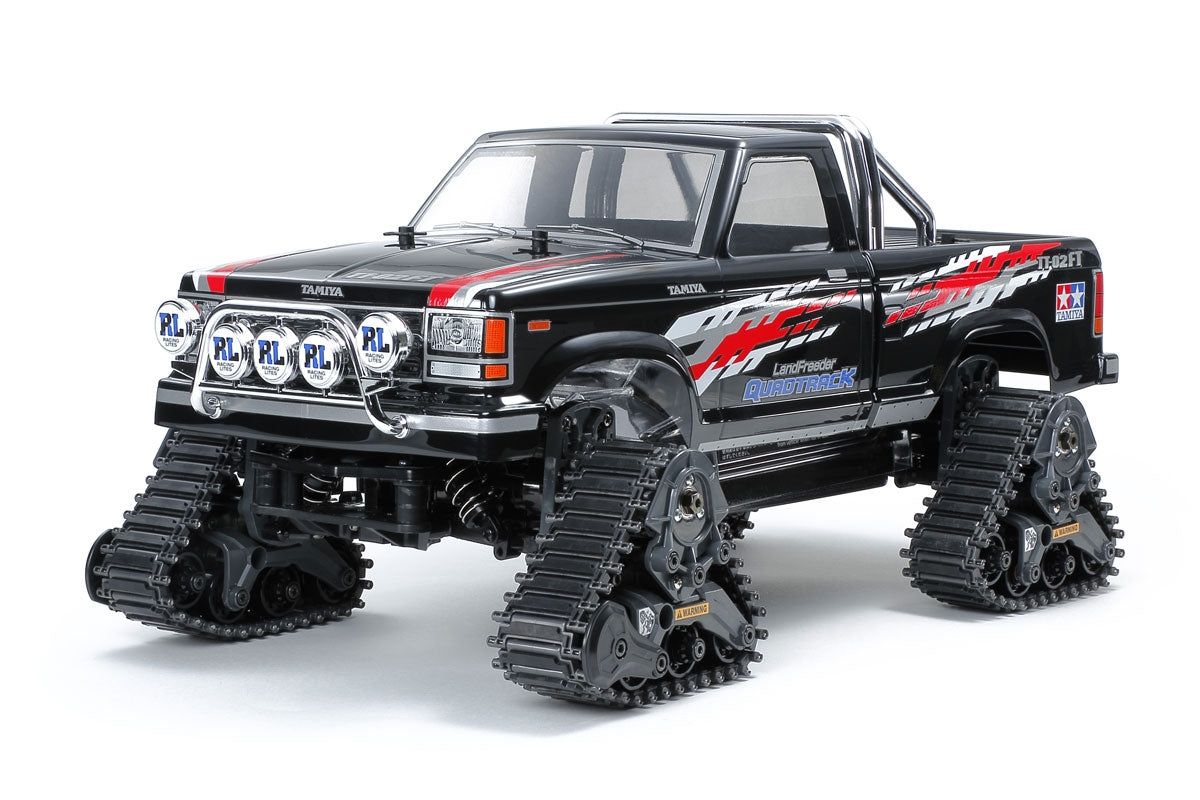

The Tamiya Landfreeder Quadtrack is a fresh and unique twist on the RC world—a tracked off-road vehicle that delivers superlative traction through four individual track units instead of wheels. This assembly kit creates an R/C model truck designed for high performance on poor surfaces, capable of plowing through snow, sand, mud, and other testing conditions where traditional wheeled vehicles would struggle. The innovative TT-02FT chassis represents a new frontier in Tamiya off-road engineering.

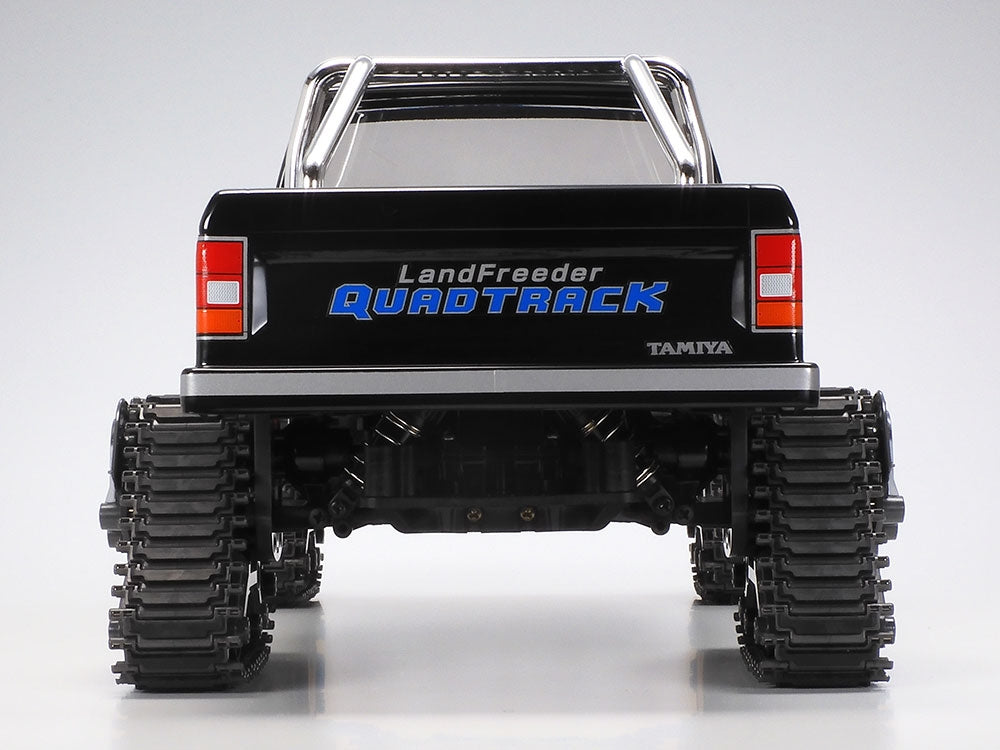

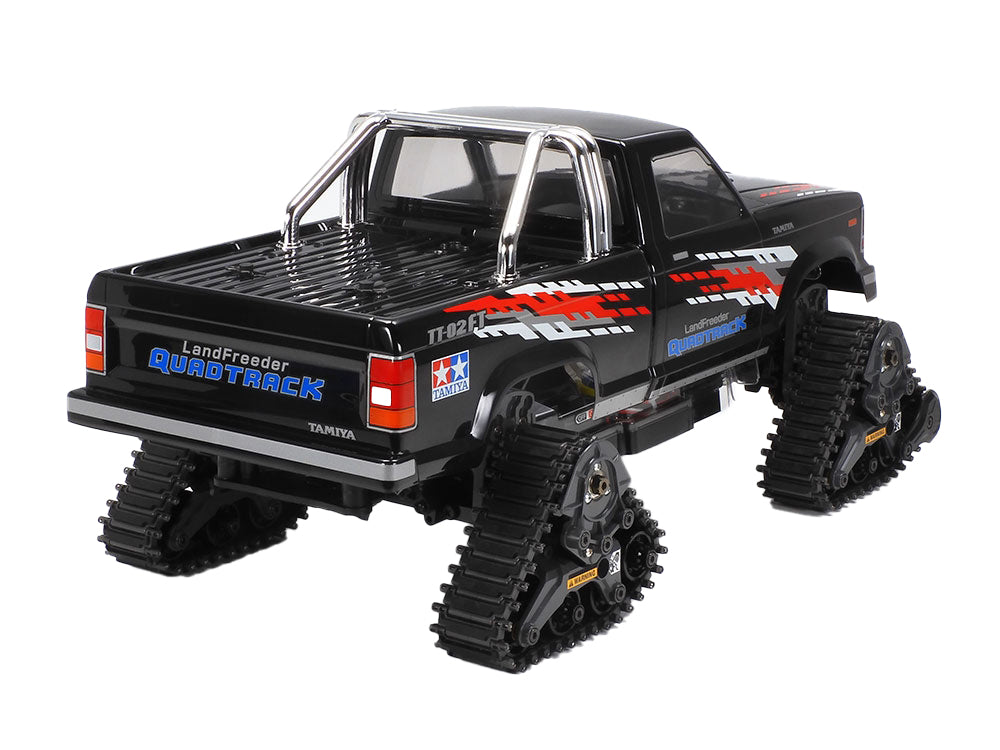

The 1980s pickup truck style polycarbonate body comes pre-painted in Tamiya PS-5 Black with PS-31 Smoke windows, featuring chrome-look fog lamps, grille guard, and roll bar recreated using separate metal-plated parts. A polycarbonate chassis cover and wheel well liners protect the internals from dirt and debris. With four swinging track units, sprung rollers for obstacle negotiation, and the proven TT-02 architecture at its core, the Landfreeder Quadtrack opens up entirely new terrain possibilities.
Key Features
- 1/10 scale R/C model assembly kit with 425mm length, 247mm width, 199mm height
- Pre-painted polycarbonate body (PS-5 Black with PS-31 Smoke windows)
- Four individual track units replacing traditional wheels
- Each track unit features sprocket and four rollers
- Sprung third roller for enhanced obstacle negotiation
- Metal-plated fog lamps, grille guard, and roll bar
- Polycarbonate chassis cover for dirt protection
- Wheel well liners prevent debris damage
- Two types of track links included (standard and grouser)
- CR-Tuned motor included
- ESC included (brushless compatible)

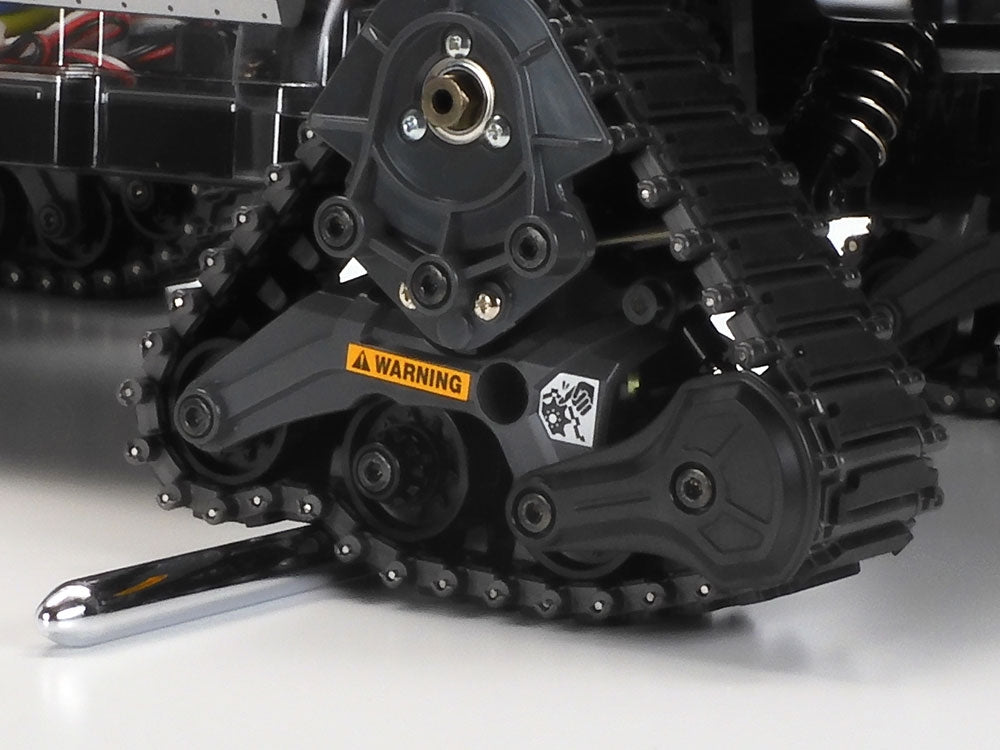

Track Unit Technology
- Four independent track units attached to suspension arms
- Each track has 60mm contact length and 39mm width
- Powered via drive sprocket attached to chassis drive shaft
- Track units swing for superior ground contact
- Sprung roller allows easier obstacle negotiation
- Plastic assembly type design with metal link pins
- Minimal friction power loss for smooth low-speed driving
- Two link types for grip customization

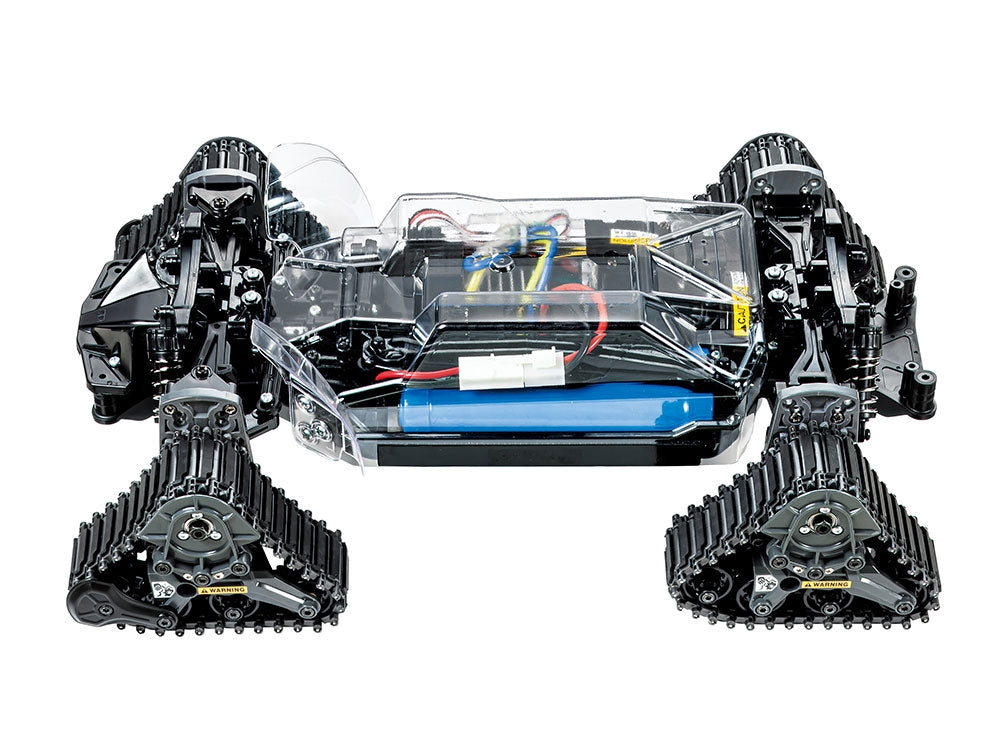

Chassis Features
- TT-02FT chassis variant with track unit accommodation
- Shaft-driven 4WD architecture
- Bathtub-type frame construction
- TT-02 4-bevel differentials
- Identical suspension arms for easy maintenance
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension base
- Friction dampers
- Plenty of ground clearance
Performance Benefits
- Superior traction on snow, sand, mud, and rough terrain
- Four independent track units maximize ground contact
- Swinging track design adapts to uneven surfaces
- Sprung rollers help negotiate small obstacles
- Low-speed efficiency from minimal friction track design
- Customizable grip with standard and grouser track links
- Protected internals for extended off-road durability
Usage Notes
The Landfreeder Quadtrack excels on challenging surfaces including snow, sand, mud, gravel, and rough terrain where wheeled vehicles would struggle. The track units provide incredible traction but are designed for moderate speeds and technical terrain navigation rather than high-speed running. The pre-painted body requires only sticker application. Compatible with brushless motors (sensored) of 21.5 turns and higher. Recommended for builders ages 14 and up.
Technical Specs
| Scale: | 1/10 |
| Length: | 425mm |
| Width: | 247mm |
| Height: | 199mm |
| Wheelbase: | 251mm |
| Track Contact: | 60mm per track |
| Track Width: | 39mm |
| Drive: | Shaft-driven 4WD (tracked) |
| Chassis: | TT-02FT |
| Body Material: | Polycarbonate (pre-painted) |
| Motor: | CR-Tuned brushed |
| ESC: | Included (brushless compatible) |
| Suspension: | 4-wheel double wishbone base |
| Dampers: | Friction type |
| Differentials: | 4-bevel type |
| Gear Ratio: | 8.27:1 (9 additional ratios available) |
| Manufacturer: | Tamiya |
| Item Number: | 58690 |
What's Included
- Complete unassembled TT-02FT chassis kit
- Pre-painted polycarbonate Landfreeder body (Black)
- Four complete track unit assemblies
- Standard track links
- Grouser track links
- Metal-plated fog lamps, grille guard, roll bar
- Polycarbonate chassis cover
- Wheel well liners
- Sticker sheet
- CR-Tuned brushed motor
- Electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Basic assembly tools
Summary
The Tamiya Landfreeder Quadtrack TT-02FT is a truly unique RC vehicle featuring four independent track units for unparalleled traction on challenging terrain. With its pre-painted body, customizable track configurations, and protected chassis design, this kit opens up entirely new off-road possibilities. Perfect for RC enthusiasts seeking something genuinely different, snow/sand runners, and anyone wanting to explore terrain that defeats conventional wheeled vehicles.
