Overview

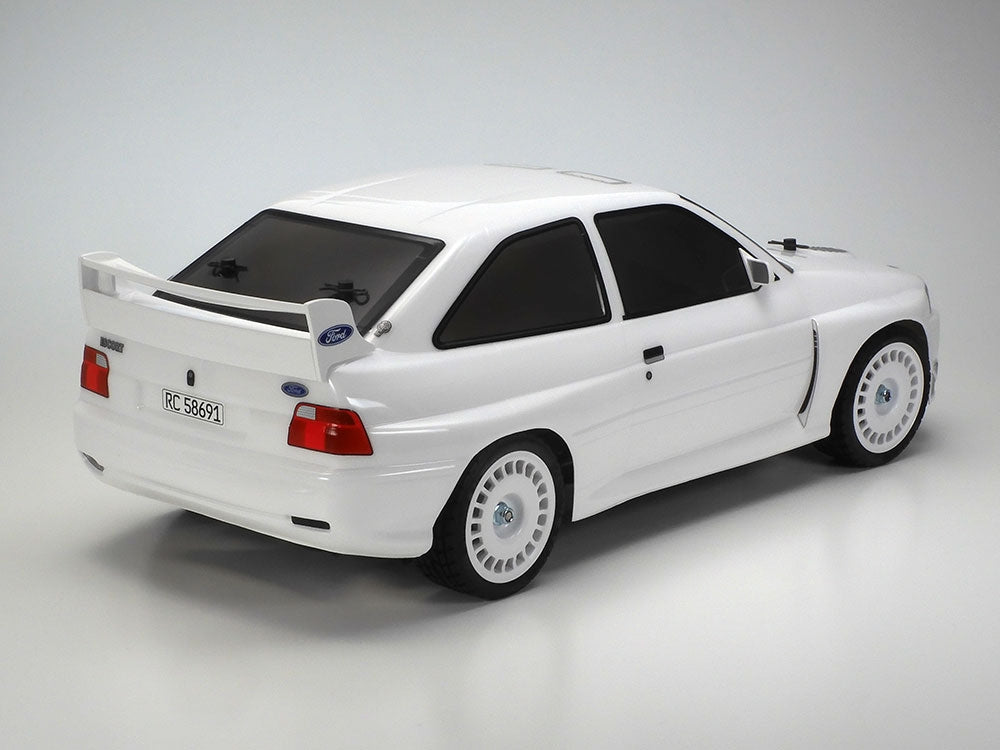

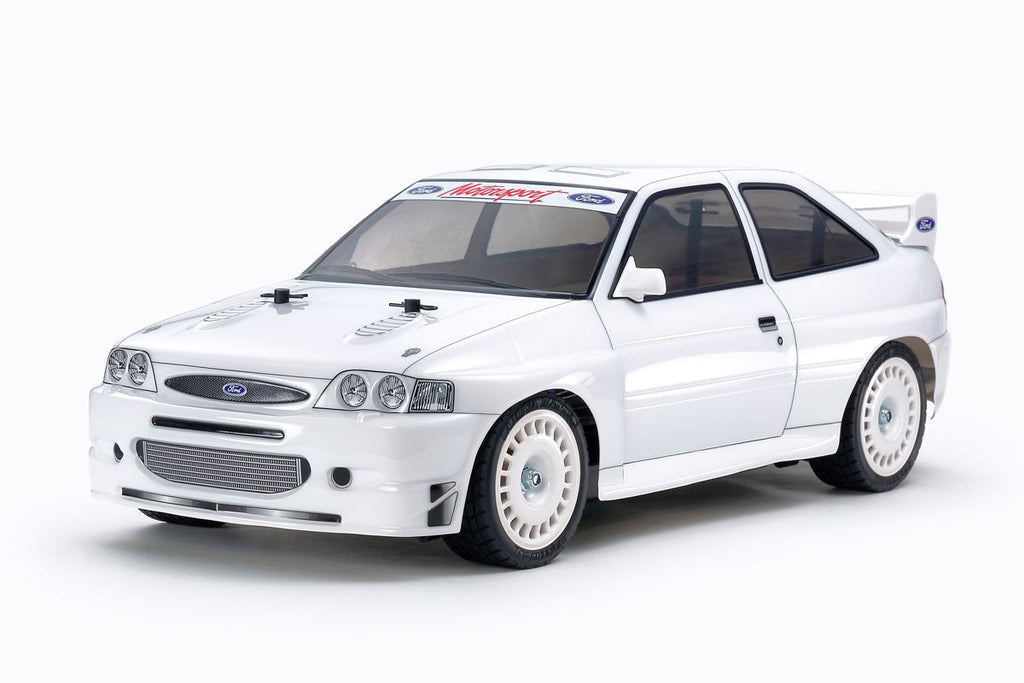

The Tamiya 1998 Ford Escort Custom RC assembly kit recreates a customized street version of the iconic three-door hatchback Ford Escort Mk.6. This special "street spec" version features aggressive styling modifications including blister fenders, front spoiler, and rear wing that transform the everyday hatchback into a performance-inspired machine. The actual Escort was powered by an inline-4 2-liter engine offering 300PS and 50Kgm of torque, and this kit captures that tuner car attitude perfectly.
Built on Tamiya's versatile TT-02 shaft-driven 4WD chassis, the Ford Escort Custom features a lightweight and durable polycarbonate body capturing the powerful customized form. Separately molded parts recreate the side mirrors and mini rear wing with precision, while white dish wheels paired with treaded tires complete the simple, clean tuner aesthetic. With included motor and ESC, this kit delivers street car styling with accessible RC performance.
Key Features
- 1/10 scale R/C model assembly kit with 425mm length, 189mm width, 145mm height
- Customized Ford Escort Mk.6 three-door hatchback body
- Street spec styling with blister fenders
- Front spoiler for aggressive appearance
- Separately molded mini rear wing
- 1.0mm thick polycarbonate body shell
- Dedicated separately molded side mirrors
- White dish wheels for clean tuner look
- Treaded semi-pneumatic tires
- TT-02 shaft-driven 4WD chassis

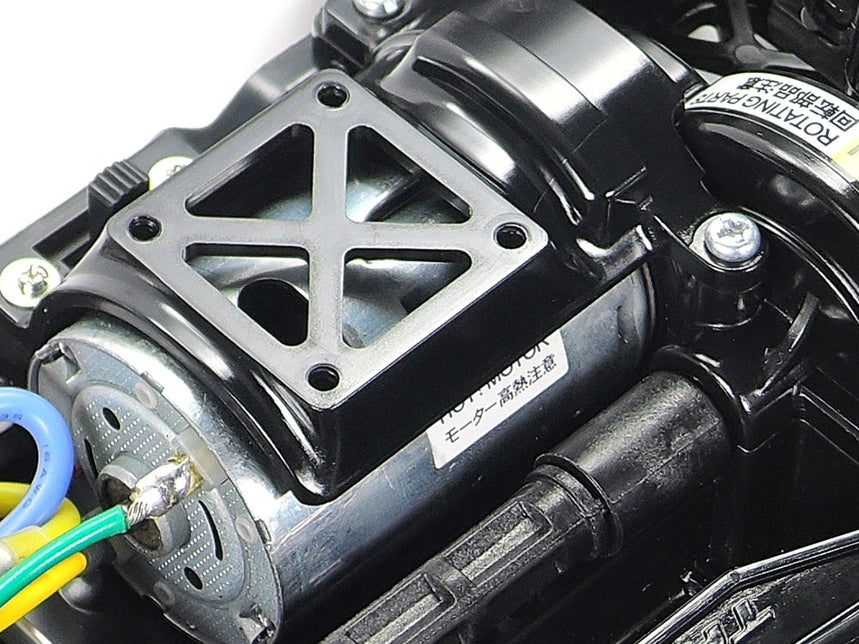

- 540-Type brushed motor included
- TBLE-04S ESC included (brushless compatible)

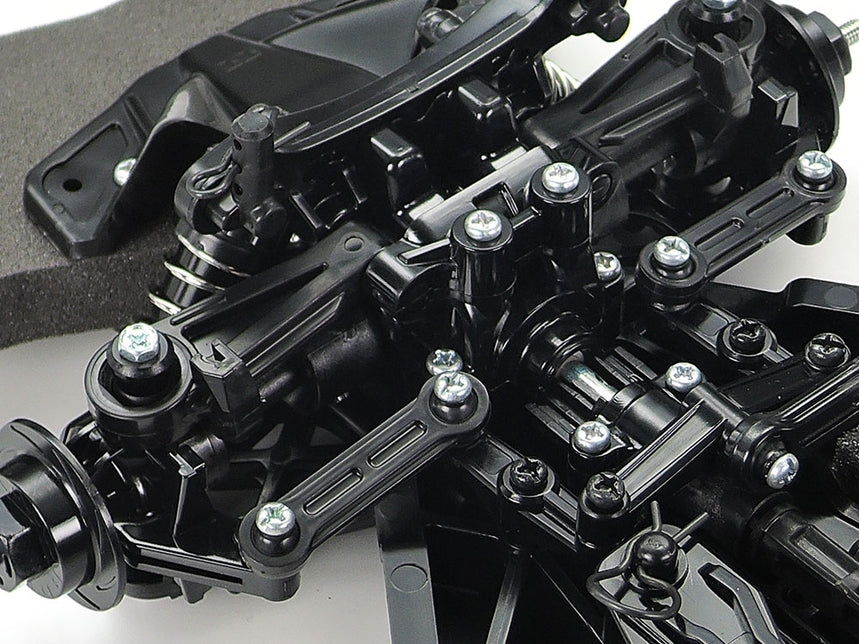

Chassis Features
- Shaft-driven 4WD with longitudinal layout
- Durable bathtub-type frame
- Battery on left, motor on right for excellent stability
- Identical left and right suspension arms for easy assembly
- Easy-to-maintain gearboxes
- 2 wheelbase options, 2 ground clearance settings, 2 tread setups
- 10 possible gear ratios (8.27:1 standard)

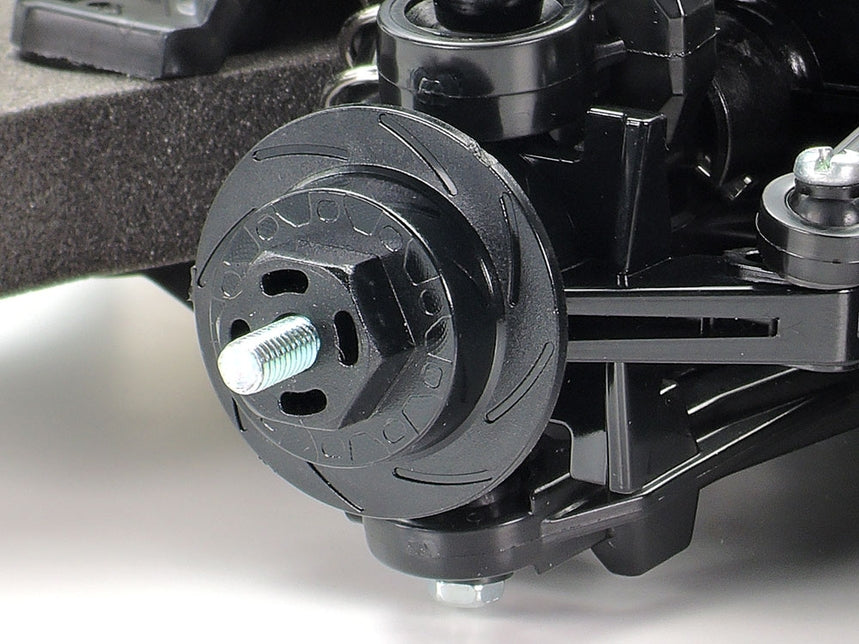

- Brake disc-shaped wheel hubs
- Resin ball links for smooth steering motion
Performance Benefits
- Excellent stability from balanced 4WD layout
- Fully independent double wishbone suspension
- Friction dampers for predictable handling
- 4-bevel resin differentials front and rear
- 3-piece steering tie-rod for smooth action
- Treaded tires for versatile tarmac grip
- TBLE-04S ESC compatible with brushless motors
- Wide range of Hop-Up Option parts available
Usage Notes
Designed for on-road driving on smooth paved surfaces including parking lots, driveways, and RC tracks. The treaded semi-pneumatic tires provide excellent grip on tarmac. The TBLE-04S ESC is compatible with sensored brushless motors of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
| Scale: |
1/10 |
| Length: |
425mm |
| Width: |
189mm |
| Height: |
145mm |
| Wheelbase: |
257mm |
| Tire Size: |
27mm width × 67mm diameter |
| Drive: |
Shaft-driven 4WD |
| Chassis: |
TT-02 |
| Body Material: |
1.0mm Polycarbonate |
| Motor: |
540-Type brushed |
| ESC: |
TBLE-04S (brushless compatible) |
| Suspension: |
Fully independent double wishbone |
| Dampers: |
Friction type |
| Differentials: |
4-bevel resin |
| Gear Ratio: |
8.27:1 (9 additional ratios available) |
| Manufacturer: |
Tamiya |
| Item Number: |
58691 |
What's Included
- Complete unassembled TT-02 chassis kit
- 1.0mm polycarbonate Ford Escort Custom body (clear)
- Separately molded side mirrors
- Separately molded mini rear wing
- White dish wheels (4)
- Treaded semi-pneumatic tires (4)
- Comprehensive sticker sheet
- Window masking stickers
- 540-Type brushed motor
- TBLE-04S electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya 1998 Ford Escort Custom TT-02 brings tuner car styling to the RC world with its customized street spec body featuring blister fenders and aggressive aerodynamic additions. Built on the versatile TT-02 4WD platform with included motor and brushless-compatible ESC, this kit delivers accessible performance with upgrade potential. Perfect for hot hatch enthusiasts, Ford fans, and RC hobbyists seeking a unique compact touring car experience.
