Overview

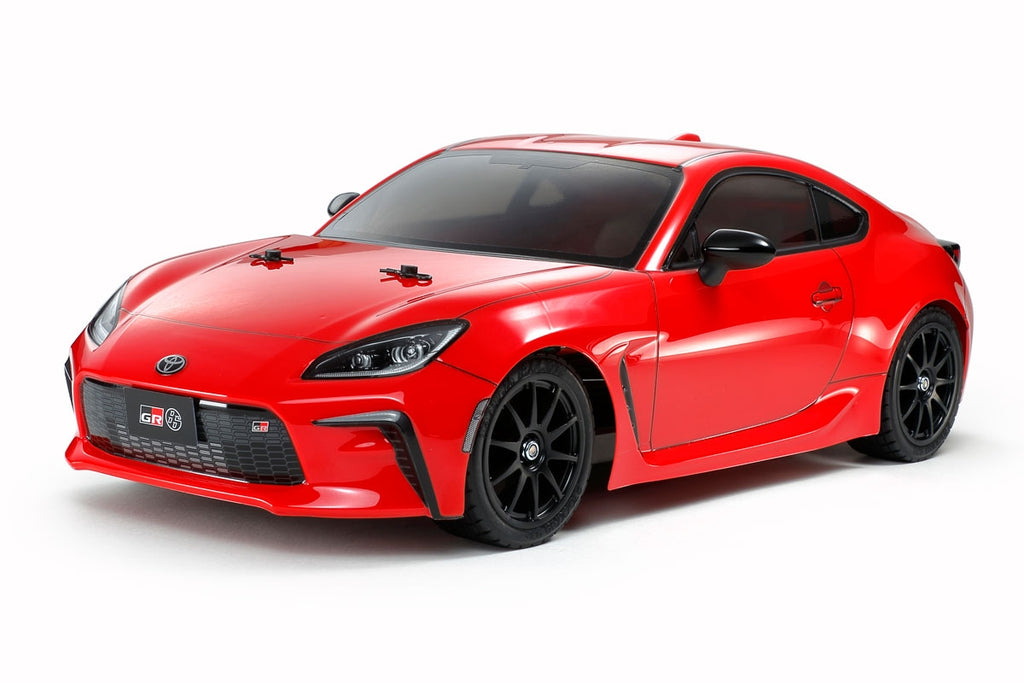

The Tamiya Toyota GR 86 RC assembly kit brings Toyota's latest lightweight sports car to the RC world in stunning 1/10 scale detail. Announced in April 2021, the GR 86 is a front-engine, rear-wheel-drive sports car powered by a 2.4-liter horizontally opposed four-cylinder DOHC engine capable of 235hp. The GR 86 delivers direct feel and the pure joy of driving to owners, embodying Toyota's commitment to accessible driver-focused performance.
Built on Tamiya's versatile TT-02 shaft-driven 4WD chassis, this kit faithfully recreates the GR 86's stylish form with a polycarbonate body capturing every design element. Separate polycarbonate headlight cases, rear combination lamps, and detailed side mirrors ensure authentic appearance. The functional Matrix Grille, air outlets, and distinctive shark fin are all depicted with precision. With black 10-spoke wheels, treaded tires, and the proven TT-02 platform, this kit delivers sports car styling with accessible RC performance.
Key Features
- 1/10 scale R/C model assembly kit with 428mm length, 188mm width, 131mm height
- Authentic Toyota GR 86 body capturing the stylish sports car form

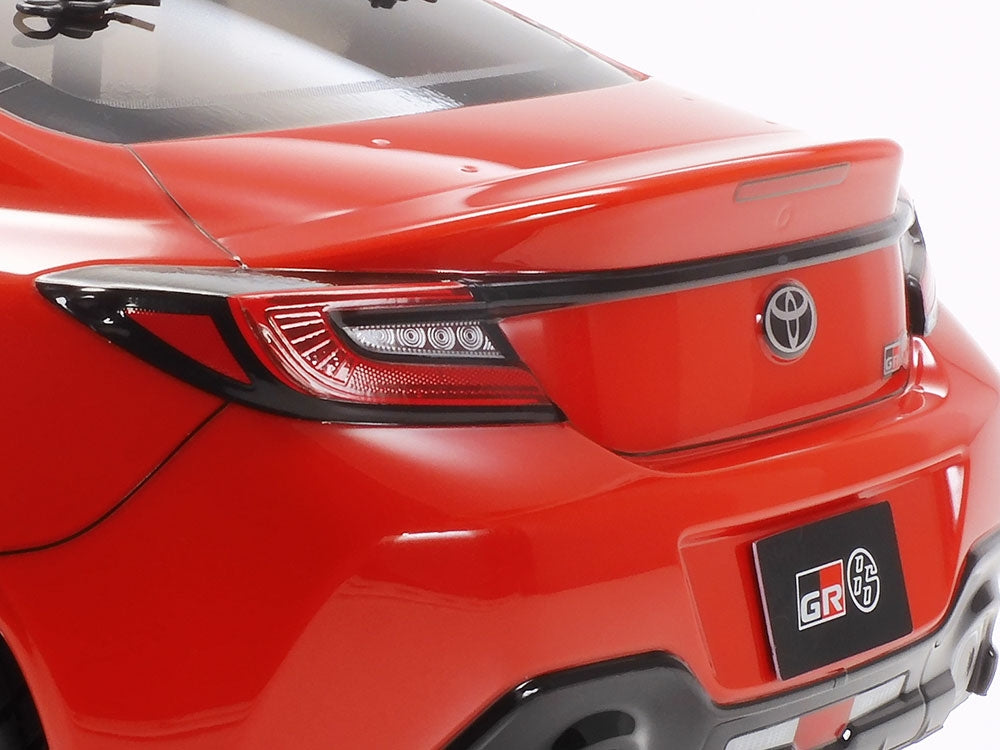

- Polycarbonate body with separate headlight and taillight cases
- Functional Matrix Grille depicted using stickers
- Air intakes flanking front bumper authentically depicted
- Air outlets on front fenders realistically rendered
- Two-tone side mirrors (bottom: semi-gloss black)

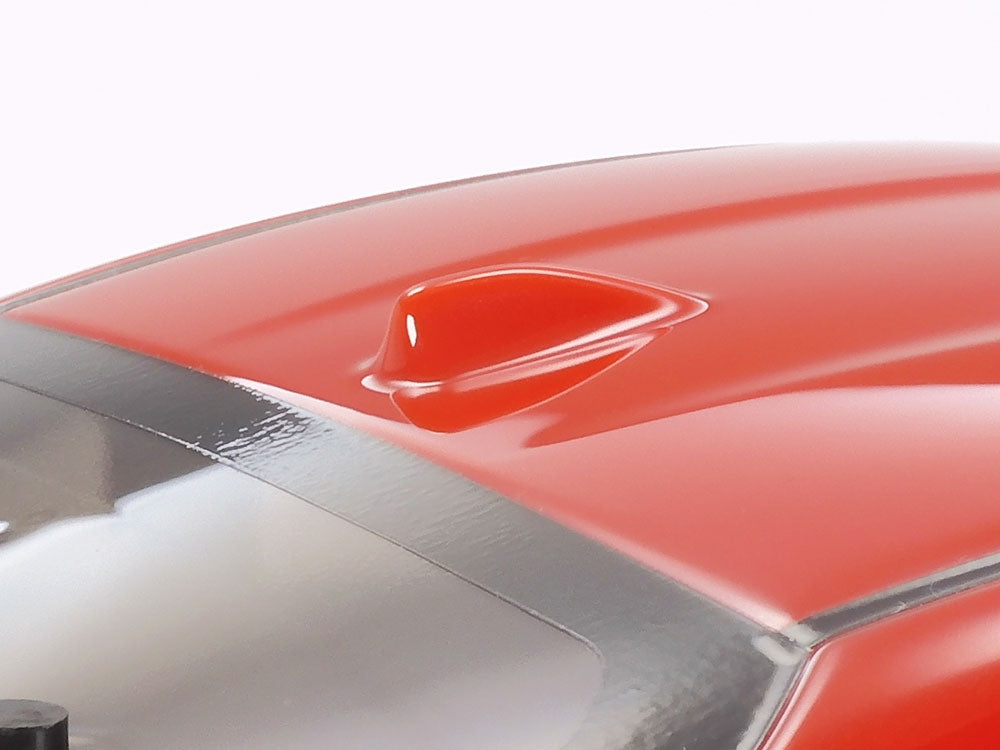

- Roof indentation and stylish shark fin captured in detail
- Duckbill trunk lid design

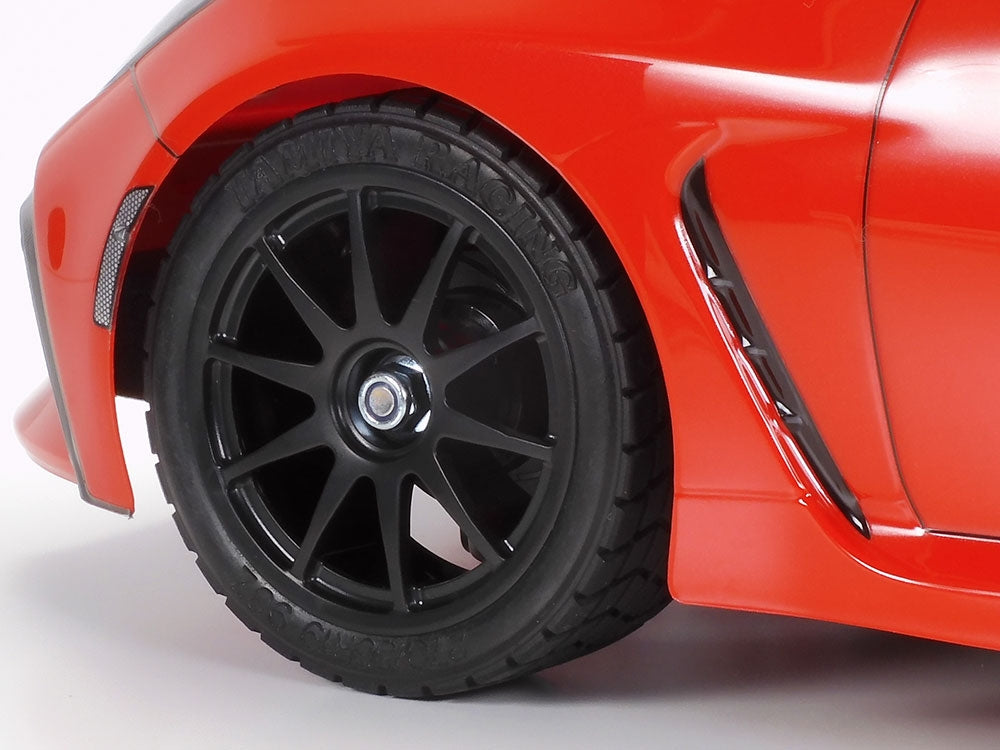

- Black 10-spoke wheels with treaded semi-pneumatic tires
- TT-02 shaft-driven 4WD chassis
- 540-Type Torque Tuned motor and TBLE-04S ESC included
Chassis Features
- Shaft-driven 4WD with longitudinal layout
- Battery on left, motor on right for excellent stability
- Identical left and right suspension arms for easy assembly
- Easy-to-maintain gearboxes
- 2 wheelbase options, 2 ground clearance settings, 2 tread setups
- 10 possible gear ratios (8.27:1 standard)

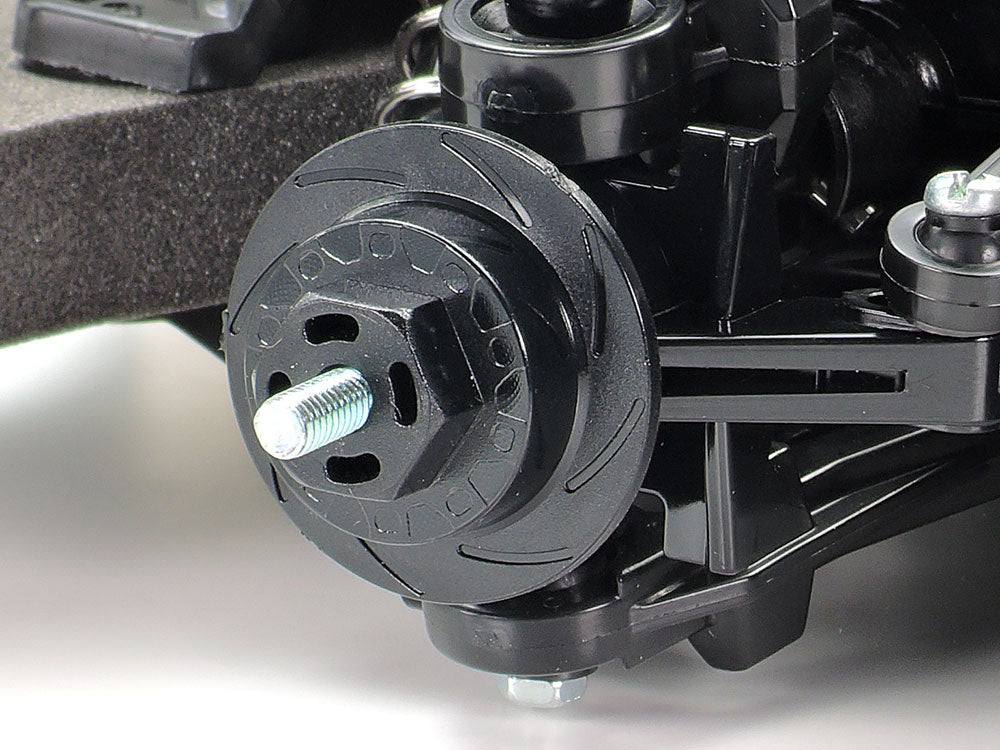

- Brake disc-shaped wheel hubs
- Resin ball links for smooth steering motion
Performance Benefits
- Excellent stability from balanced 4WD layout
- Fully independent double wishbone suspension
- Friction dampers for predictable handling
- 4-bevel resin differentials front and rear
- 3-piece steering tie-rod for smooth action
- Treaded tires for versatile tarmac grip
- Highly adaptable chassis with extensive tuning options
Usage Notes
Designed for on-road driving on smooth paved surfaces including parking lots, driveways, and RC tracks. The treaded semi-pneumatic tires provide excellent grip on tarmac. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints. The license plate is cut out of polycarbonate for added detail.
Technical Specs
| Scale: |
1/10 |
| Length: |
428mm |
| Width: |
188mm |
| Height: |
131mm |
| Wheelbase: |
257mm |
| Tire Size: |
27mm width × 67mm diameter |
| Drive: |
Shaft-driven 4WD |
| Chassis: |
TT-02 |
| Body Material: |
Polycarbonate |
| Motor: |
540-Type Torque Tuned brushed |
| ESC: |
TBLE-04S |
| Suspension: |
Fully independent double wishbone |
| Dampers: |
Friction type |
| Differentials: |
4-bevel resin |
| Gear Ratio: |
8.27:1 (9 additional ratios available) |
| Manufacturer: |
Tamiya |
| Item Number: |
58694 |
What's Included
- Complete unassembled TT-02 chassis kit
- Polycarbonate Toyota GR 86 body (clear)
- Separate polycarbonate headlight cases
- Separate polycarbonate rear combination lamps
- Two-tone side mirrors
- Black 10-spoke wheels (4)
- Treaded semi-pneumatic tires (4)
- Comprehensive sticker sheet
- Window masking stickers
- 540-Type Torque Tuned motor
- TBLE-04S electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Toyota GR 86 TT-02 captures Toyota's latest driver-focused sports car in authentic 1/10 scale detail. With its highly detailed polycarbonate body featuring separate light cases and precision detailing, plus the versatile TT-02 4WD platform with included motor and ESC, this kit delivers sports car styling and enjoyable on-road performance. Perfect for Toyota enthusiasts, sports car fans, and RC hobbyists seeking a modern JDM icon.
