Overview

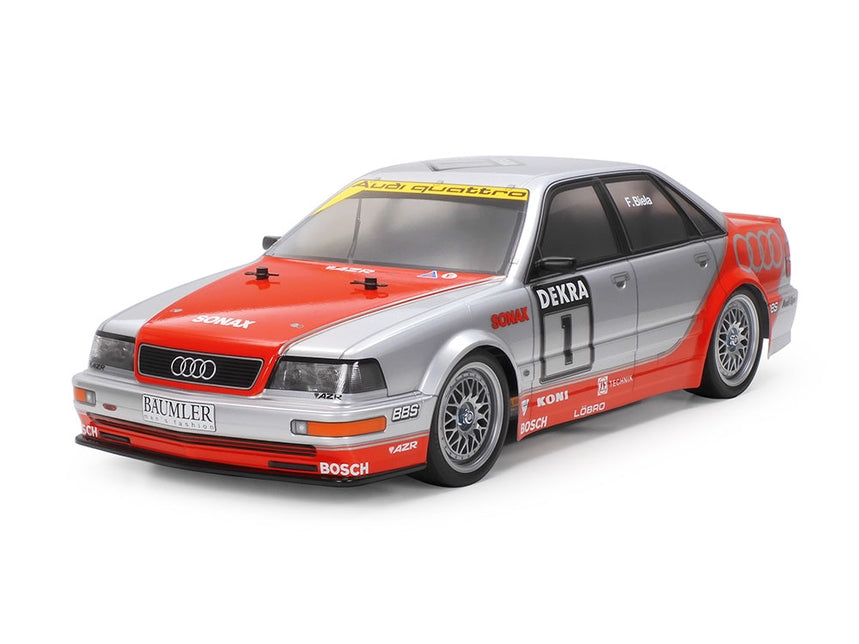

The Tamiya 1992 Audi V8 Touring RC assembly kit brings legendary German Touring Car Championship (DTM) dominance to your workbench in stunning 1/10 scale detail. The Audi V8 achieved back-to-back DTM championships in 1990 and 1991, and this kit recreates the 1992 iteration featuring a more powerful 3.6-liter V8 engine and improvements across the board. Powered by Audi's famed quattro four-wheel drive, the V8 Touring demonstrated overwhelming strength, including a clean sweep of the podium in the first race at the Nürburgring.
Built on Tamiya's versatile TT-02 shaft-driven 4WD chassis, this kit faithfully captures the V8's powerful touring car form with a polycarbonate body and highly realistic front and rear light cases. The authentic detailing includes slimline side mirrors and comprehensive livery stickers to recreate the iconic red racing sections. With silver mesh wheels, racing slicks, and included motor and ESC, this kit delivers DTM championship heritage with accessible RC performance.
Key Features
- 1/10 scale R/C model assembly kit with 463mm length, 188mm width, 138mm height
- Authentic 1992 Audi V8 Touring DTM racing body
- Polycarbonate body capturing the powerful touring car form
- Separate polycarbonate front and rear light cases
- Eye-catching slimline side mirrors as separate plastic parts
- Stickers for sponsor logos and red livery sections
- Two-piece silver mesh wheels for detailed realistic look
- Racing slick tires
- TT-02 shaft-driven 4WD chassis
- 540-Type brushed motor and HobbyWing THW 1060 ESC included
- Window masking stickers included
Racing Heritage
- Back-to-back DTM Champion in 1990 and 1991
- 1992 specification with improved 3.6-liter V8 engine
- Clean podium sweep at Nürburgring opening race 1992
- Legendary quattro four-wheel drive system
- Overcame significant ballast handicaps
- Dominant force in early 1990s German touring car racing
Chassis Features
- Shaft-driven 4WD with longitudinal layout
- Battery on left, motor on right for excellent stability
- Identical left and right suspension arms for easy assembly
- Easy-to-maintain gearboxes
- 2 wheelbase options, 2 ground clearance settings, 2 tread setups
- 10 possible gear ratios (8.27:1 standard)
- Brake disc-shaped wheel hubs
- Resin ball links for smooth steering motion
Performance Benefits
- Excellent stability from balanced 4WD layout
- Fully independent double wishbone suspension
- Friction dampers for predictable handling
- 4-bevel resin differentials front and rear
- 3-piece steering tie-rod for smooth action
- Racing slick tires for maximum tarmac grip
- Highly adaptable chassis with extensive tuning options
Usage Notes
Designed for on-road driving on smooth paved surfaces including parking lots, driveways, and RC tracks. The racing slick tires provide excellent grip on tarmac. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints. A wealth of Hop-Up Option parts is available to tune the TT-02 chassis to your performance needs.
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Technical Specs
| Scale: |
1/10 |
| Length: |
463mm |
| Width: |
188mm |
| Height: |
138mm |
| Wheelbase: |
257mm |
| Tire Size: |
27mm width × 67mm diameter |
| Drive: |
Shaft-driven 4WD |
| Chassis: |
TT-02 |
| Body Material: |
Polycarbonate |
| Motor: |
540-Type brushed |
| ESC: |
HobbyWing THW 1060 (2-3S compatible) |
| Suspension: |
Fully independent double wishbone |
| Dampers: |
Friction type |
| Differentials: |
4-bevel resin |
| Gear Ratio: |
8.27:1 (9 additional ratios available) |
| Manufacturer: |
Tamiya |
| Item Number: |
58699 |
What's Included
- Complete unassembled TT-02 chassis kit
- Polycarbonate 1992 Audi V8 Touring body (clear)
- Separate polycarbonate front and rear light cases
- Separate plastic side mirrors
- Two-piece silver mesh wheels (4)
- Racing slick tires (4)
- DTM livery sticker sheet
- Window masking stickers
- 540-Type brushed motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya 1992 Audi V8 Touring TT-02 celebrates one of DTM's most dominant racing machines with an authentic 1/10 scale recreation. With its highly detailed polycarbonate body, realistic light cases, and proven TT-02 4WD platform, this kit delivers championship-winning quattro heritage and enjoyable on-road performance. Perfect for DTM enthusiasts, Audi collectors, and RC hobbyists seeking classic German touring car racing excellence.
