Overview

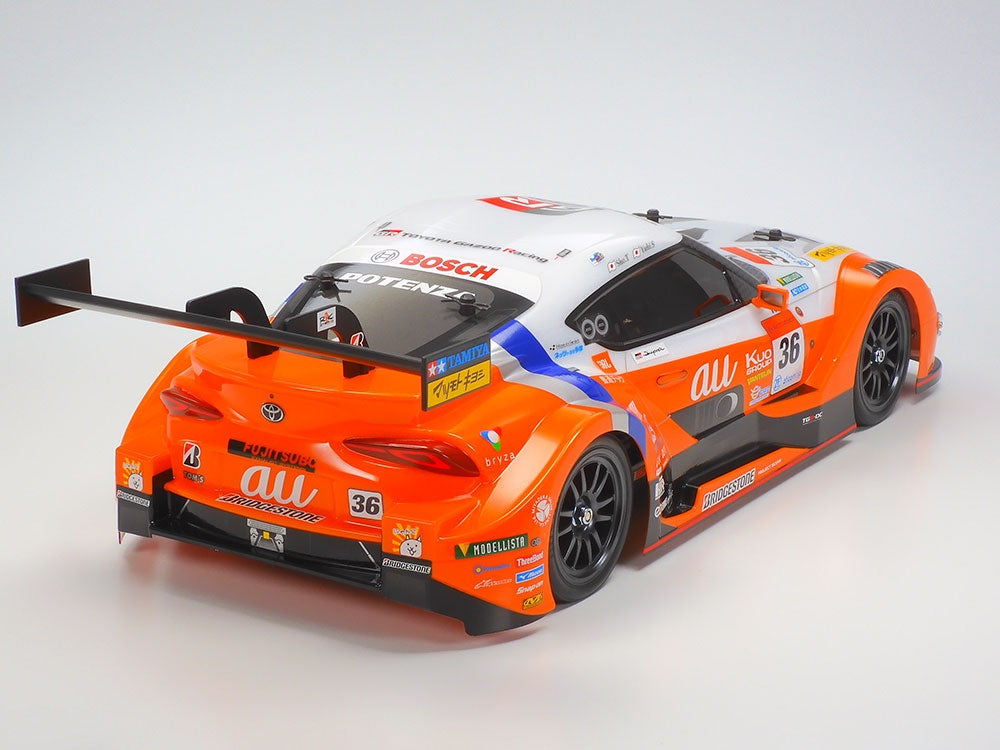

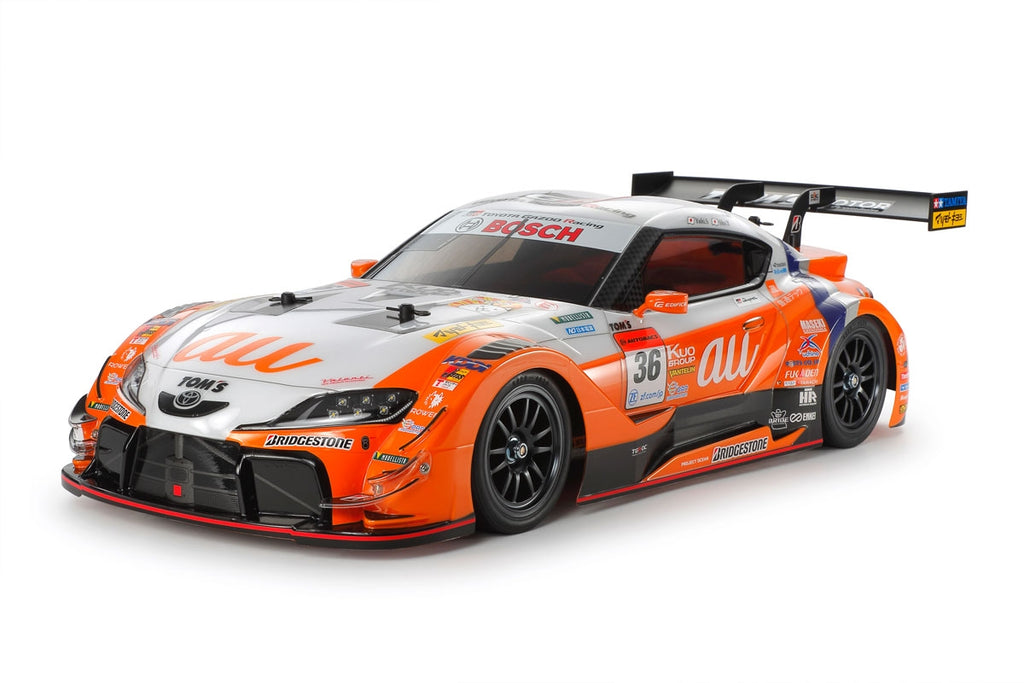

The Tamiya au TOM'S GR Supra GT500 RC assembly kit captures one of Japan's most dramatic racing championship stories in stunning 1/10 scale detail. This model depicts the au TOM'S GR Supra that staged an astonishing comeback to take the Super GT series GT500 class championship with victory from fourth on the grid in the season-ending race at Fuji Speedway. The GR Supra GT500 was developed as a replacement for the LEXUS LC500, featuring a carbon monocoque frame, dedicated aerodynamic components, and the powerful 2,000cc inline 4-cylinder direct injection turbo-charged "RI4AG" engine.
Built on Tamiya's versatile TT-02 shaft-driven 4WD chassis, this kit faithfully recreates the championship-winning race car with a polycarbonate body capturing the bulging overfenders and complex side sections. Separate polycarbonate canards and light cases, plus ABS wing and side mirrors, ensure authentic detail. With gun metal 12-spoke wheels, racing slicks, and included motor and ESC, this kit delivers Super GT styling with accessible RC performance.
Key Features
- 1/10 scale R/C model assembly kit with 466mm length, 188mm width, 125mm height
- Authentic au TOM'S GR Supra GT500 Super GT championship body
- Polycarbonate body with bulging overfenders and complex side sections

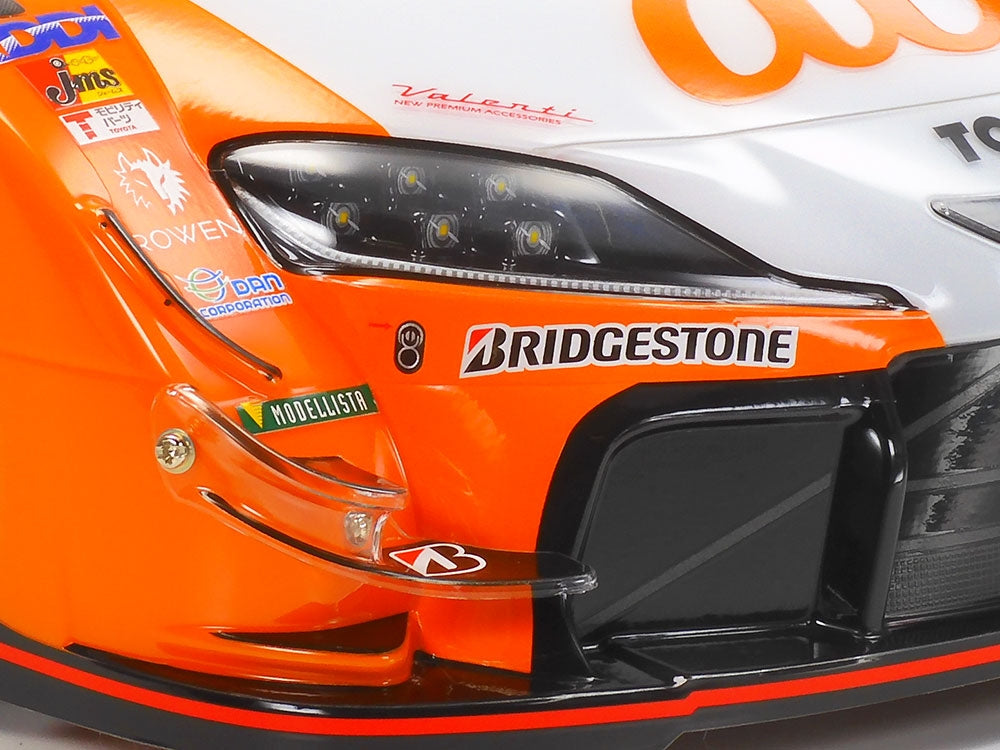

- Separate polycarbonate canards and headlight cases
- Dedicated ABS side mirrors developed specifically for this model
- ABS plastic rear wing recreation
- Lateral duct detailing on side sections
- Gun metal 12-spoke wheels paired with racing slicks
- TT-02 shaft-driven 4WD chassis
- 540-Type brushed motor and HobbyWing THW 1060 ESC included
- Includes Urethane Bumper M for body protection
Racing Heritage
- Super GT GT500 class championship winner
- Dramatic comeback victory from 4th on grid at Fuji finale
- Developed under GT500 class regulations
- Carbon monocoque frame construction
- 2,000cc inline 4-cylinder direct injection turbo "RI4AG" engine
- Successor to the championship LEXUS LC500

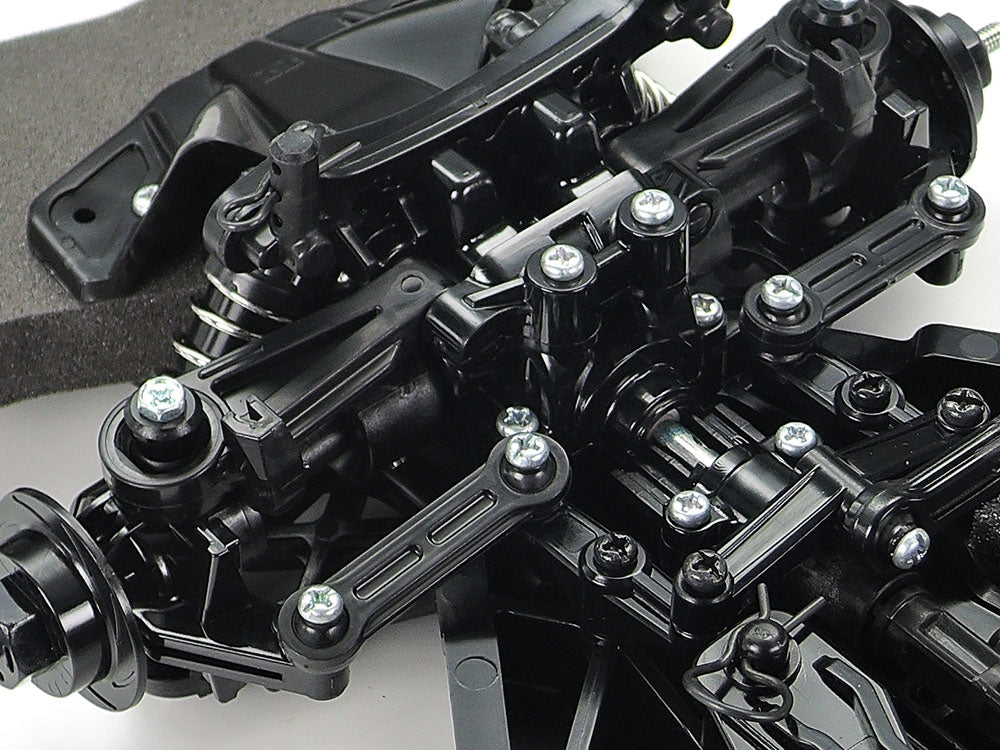

Chassis Features
- Shaft-driven 4WD with longitudinal layout
- Battery on left, motor on right for excellent stability
- Identical left and right suspension arms for easy assembly
- Easy-to-maintain gearboxes
- 2 wheelbase options, 2 ground clearance settings, 2 tread setups
- 10 possible gear ratios (8.27:1 standard)

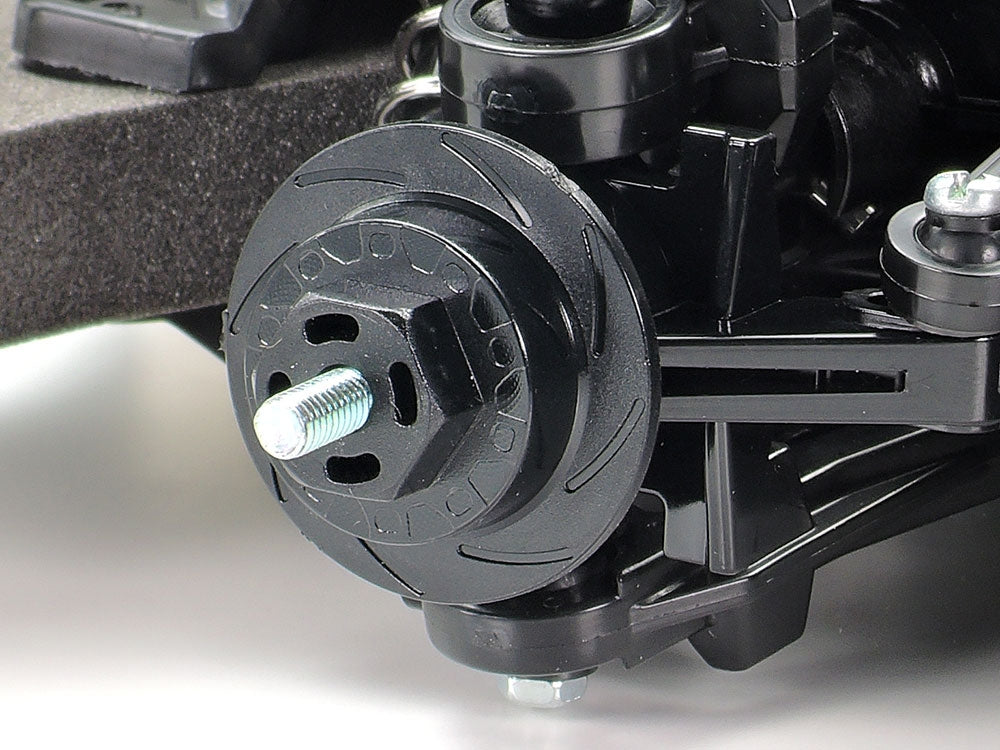

- Brake disc-shaped wheel hubs
- Resin ball links for smooth steering motion
Performance Benefits
- Excellent stability from balanced 4WD layout
- Fully independent double wishbone suspension
- Friction dampers for predictable handling
- 4-bevel plastic differentials front and rear
- 3-piece steering tie-rod for smooth action
- Racing slick tires for maximum tarmac grip
- Highly adaptable chassis with extensive tuning options
Usage Notes
Designed for on-road driving on smooth paved surfaces including parking lots, driveways, and RC tracks. The racing slick tires provide excellent grip on tarmac. Note that LEDs are not attachable to the headlight cases. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
| Scale: |
1/10 |
| Length: |
466mm |
| Width: |
188mm |
| Height: |
125mm |
| Wheelbase: |
257mm |
| Tire Size: |
27mm width × 67mm diameter |
| Drive: |
Shaft-driven 4WD |
| Chassis: |
TT-02 |
| Body Material: |
Polycarbonate with ABS parts |
| Motor: |
540-Type brushed |
| ESC: |
HobbyWing THW 1060 (2-3S compatible) |
| Suspension: |
Fully independent double wishbone |
| Dampers: |
Friction type |
| Differentials: |
4-bevel plastic |
| Gear Ratio: |
8.27:1 (9 additional ratios available) |
| Manufacturer: |
Tamiya |
| Item Number: |
58703 |
What's Included
- Complete unassembled TT-02 chassis kit
- Polycarbonate au TOM'S GR Supra body (clear)
- Separate polycarbonate canards and light cases
- ABS rear wing and side mirrors
- Gun metal 12-spoke wheels (4)
- Racing slick tires (4)
- Race team livery sticker sheet
- Window masking stickers
- Urethane Bumper M
- 540-Type brushed motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya au TOM'S GR Supra GT500 TT-02 captures one of Super GT's most dramatic championship victories in authentic 1/10 scale detail. With its highly detailed polycarbonate body, separate aerodynamic components, and proven TT-02 4WD platform, this kit delivers championship-winning styling and enjoyable on-road performance. Perfect for Super GT fans, Toyota enthusiasts, and RC hobbyists seeking an authentic Japanese racing experience.
