Overview

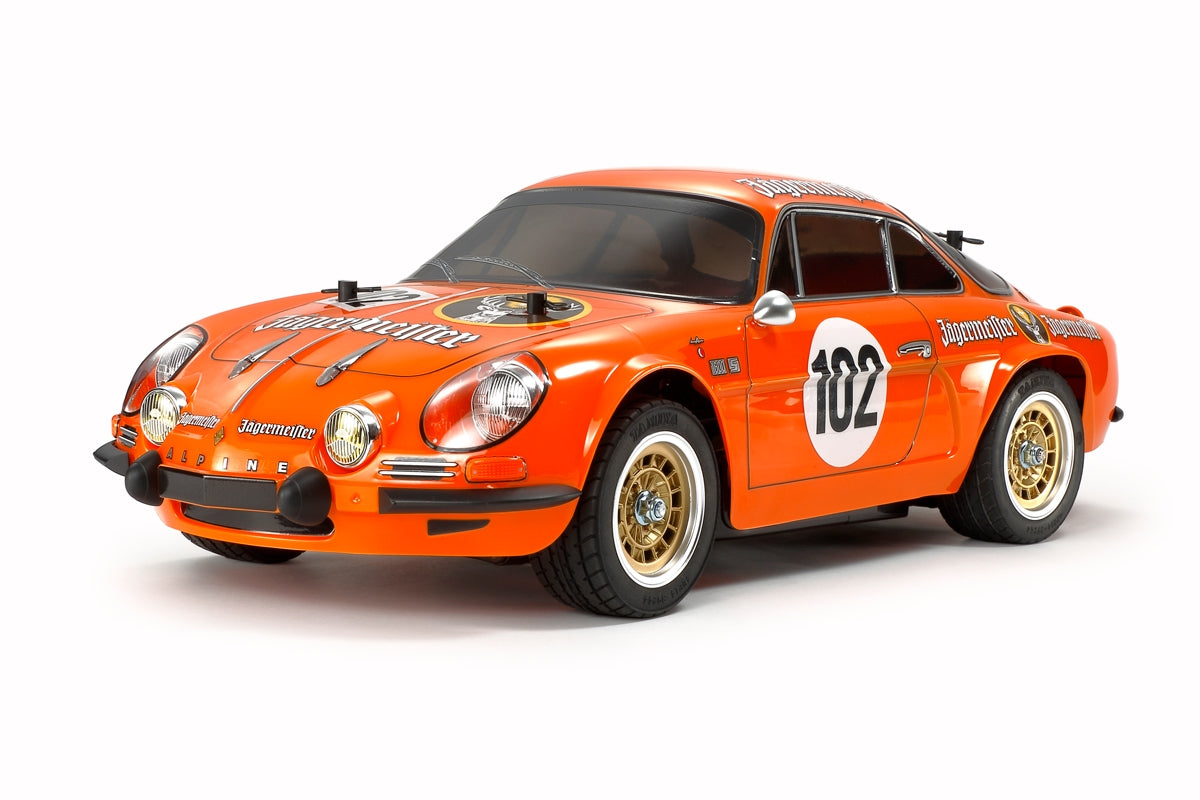

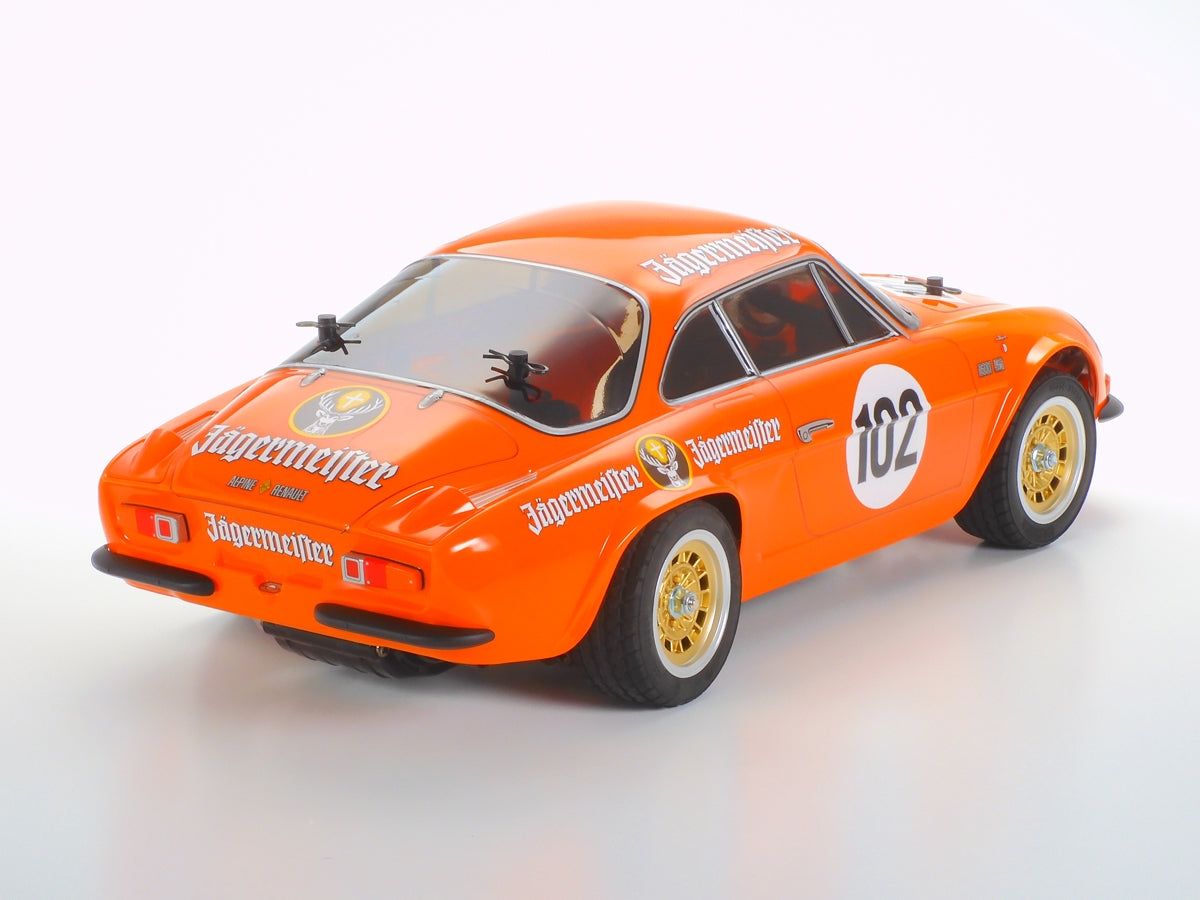

The Tamiya Alpine A110 Jägermeister 1973 RC assembly kit celebrates one of rally racing's most iconic French sports cars in its legendary orange livery. The Alpine A110 was a compact coupe featuring a lightweight FRP body based upon a steel backbone chassis with rear-mounted inline-4 engine positioned longitudinally. Production continued from 1963 until 1977, and the A110 achieved motorsport fame with victory at the 1971 Monte Carlo Rally before becoming the first World Rally Champion in 1973.
This particular version recreates the Jägermeister orange livery that achieved class victory in German circuit races. Built on Tamiya's rear-motor, rear-wheel-drive M-06 chassis, the kit authentically replicates the A110's compact coupe form with a polycarbonate body, separate ABS headlights, bumpers, and detailed side mirrors with metal-plated surfaces. The M-06's RR layout mirrors the real car's engine placement for authentic driving characteristics.
Key Features
- 1/10 scale R/C model assembly kit with 395mm length, 168mm width, 121mm height
- Authentic Alpine A110 body with iconic Jägermeister orange livery
- 1.0mm thick polycarbonate body shell
- Separate ABS plastic headlights, front/rear bumpers, and side mirrors
- Metal-plated mirror surfaces for realistic detail
- M-06 rear-motor, rear-wheel-drive chassis (210mm wheelbase)
- Silver dish wheels with gold color discs
- 60D radial front tires and 60D super radial rear tires
- 540-Type brushed motor included
- HobbyWing THW 1060 ESC included
- Window masking stickers included
Historical Significance
- 1973 World Rally Championship winner - first ever WRC champion
- 1971 Monte Carlo Rally victory
- Class victory in German circuit races with Jägermeister livery
- Lightweight FRP body on steel backbone chassis
- Rear-mounted inline-4 engine configuration
- Production from 1963-1977
Chassis Features
- Rear-mounted motor, rear-wheel-drive (RR) layout
- Longitudinally-mounted battery pack
- R/C equipment positioned on either side for optimum balance
- Low center of gravity design
- 3-piece steering linkage for nimble handling
- 3-bevel differential gear
- Three wheelbase options: 210mm, 225mm (M05M), 239mm (M05L)
- 5.8:1 gear ratio with 20T pinion
Performance Benefits
- Excellent rear traction from RR motor placement
- 4-wheel independent double wishbone suspension
- Friction dampers for predictable handling
- Nimble handling response from 3-piece steering
- Good weight distribution for balanced cornering
- Compact size ideal for tight tracks
- Authentic rear-drive handling characteristics
Usage Notes
The M-06 excels on smooth paved surfaces and is particularly well-suited for tight tracks where its compact size and agile handling shine. The rear-wheel-drive layout requires smooth throttle inputs—the rear traction is excellent but can break loose with aggressive driving, allowing fun controlled slides. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Technical Specs
| Scale: |
1/10 |
| Length: |
395mm |
| Width: |
168mm |
| Height: |
121mm |
| Wheelbase: |
210mm |
| Tread: |
138mm (front and rear) |
| Tire Size: |
25mm width × 59mm diameter |
| Drive: |
Rear-wheel drive (RWD) |
| Chassis: |
M-06 |
| Body Material: |
1.0mm Polycarbonate |
| Motor: |
540-Type brushed |
| ESC: |
HobbyWing THW 1060 (2-3S compatible) |
| Suspension: |
4-wheel independent double wishbone |
| Dampers: |
Friction type |
| Differential: |
3-bevel gear |
| Gear Ratio: |
5.8:1 |
| Manufacturer: |
Tamiya |
| Item Number: |
58708 |
What's Included
- Complete unassembled M-06 chassis kit
- 1.0mm polycarbonate Alpine A110 body (clear)
- Separate ABS headlights with realistic detail
- ABS front and rear bumpers
- ABS side mirrors with metal-plated surfaces
- Silver dish wheels with gold discs (4)
- 60D radial front tires (2)
- 60D super radial rear tires (2)
- Jägermeister livery decal sheet
- Window masking stickers
- 540-Type brushed motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V battery pack (NiMH recommended)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Alpine A110 Jägermeister 1973 M-06 celebrates the first World Rally Champion with an authentic recreation of the legendary French sports car. The rear-motor M-06 chassis mirrors the real A110's layout for authentic driving feel, while the detailed body with separate ABS parts captures every classic line. With included motor, ESC, and iconic orange livery decals, this kit is perfect for rally enthusiasts, classic car collectors, and RC hobbyists seeking a unique compact chassis experience.
