Description
Overview

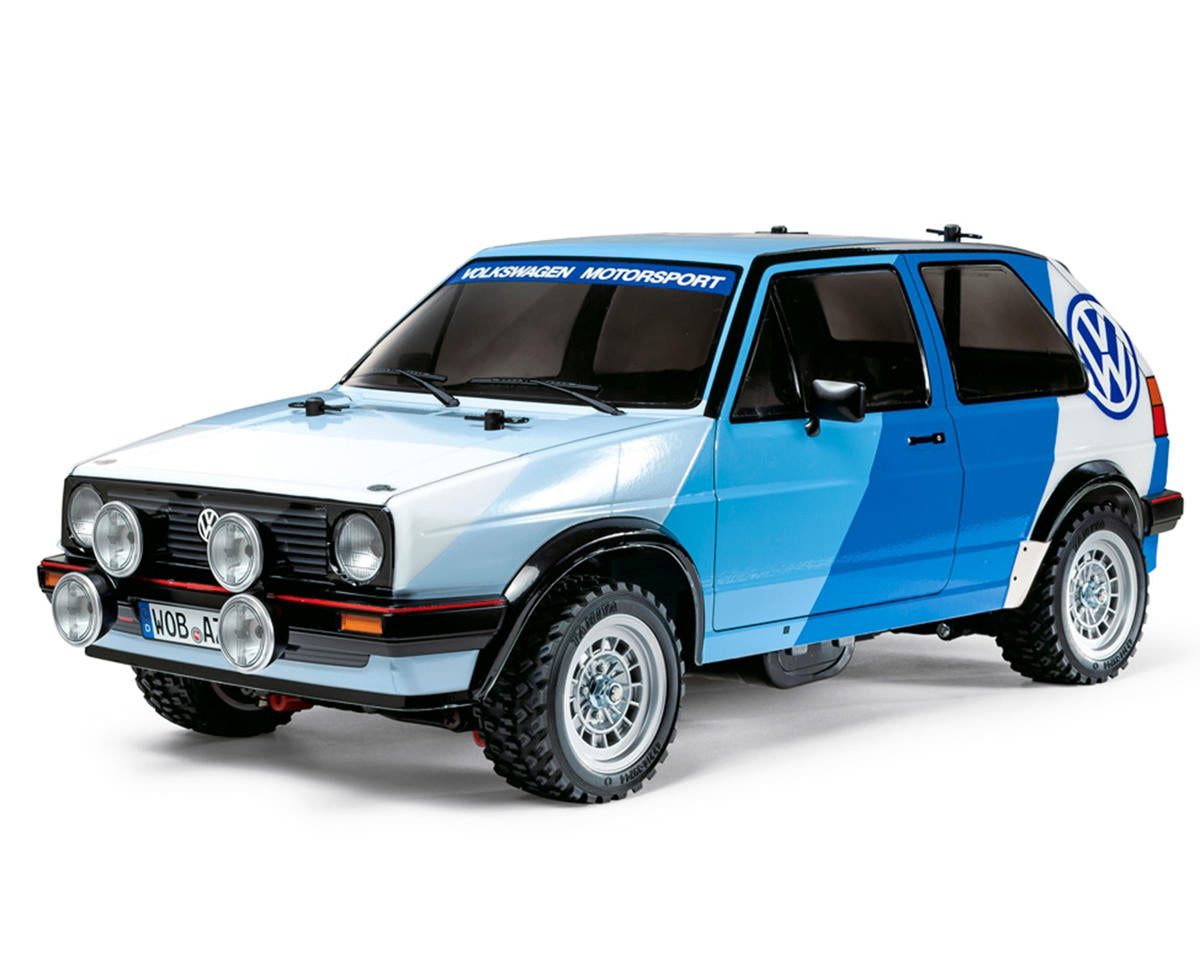

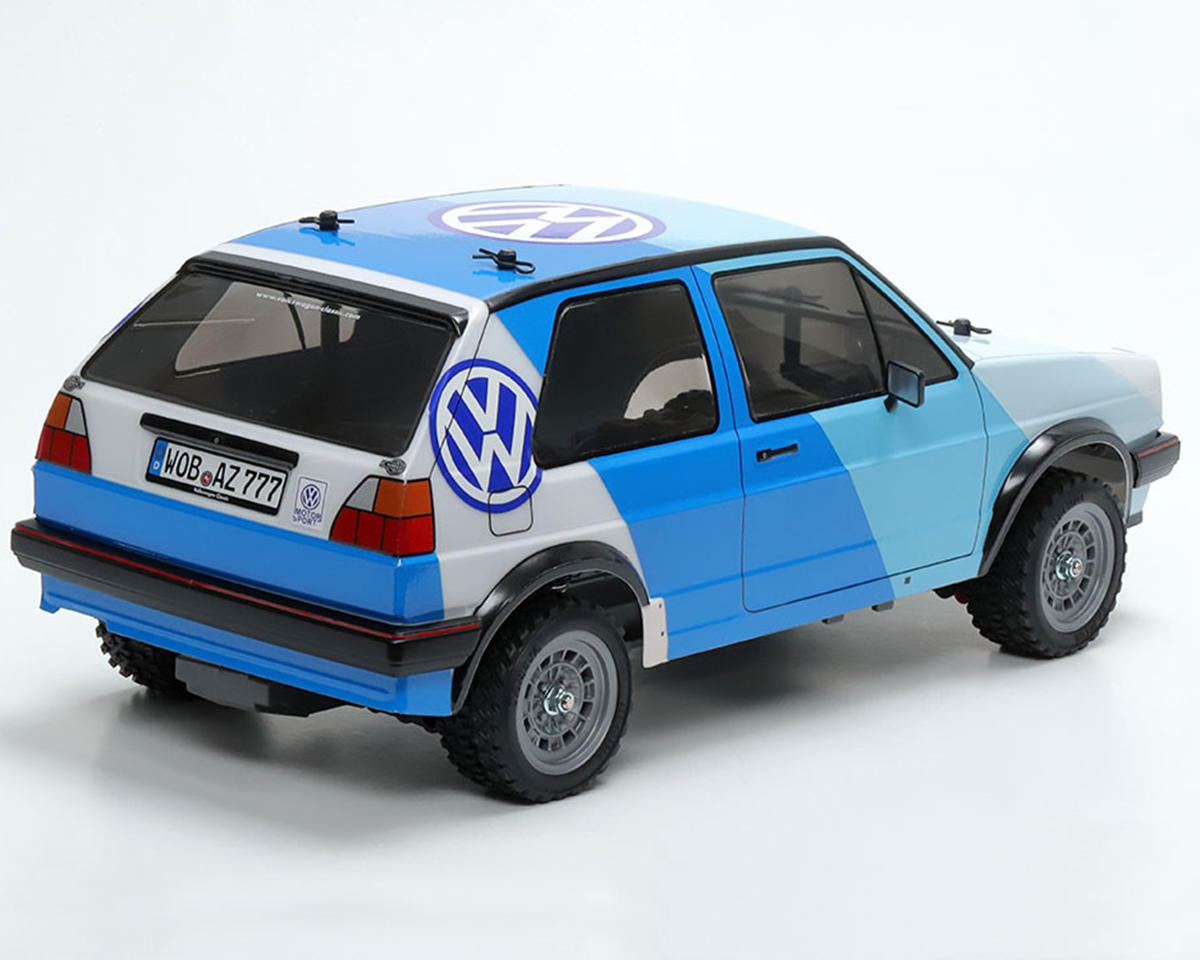

The Tamiya Volkswagen Golf II GTI 16V Rally RC assembly kit celebrates one of Europe's most beloved hot hatches in championship rally configuration. This 1/10 scale model recreates the legendary Mk2 Golf GTI with its 1,781cc inline-4 16-valve engine—the car that met with success in global rally races and became champion of its Group A class in 1986. The timeless European styling, aggressive stance, and rally-ready details make this kit irresistible for Volkswagen enthusiasts and rally fans alike.
The MF-01X chassis is purpose-built for mixed-surface driving, featuring a rear-mounted motor layout and compact monocoque frame design that gives this model true rally character. The slimline three-piece monocoque forms the centerpiece of the chassis, with the propeller shaft positioned to the right and power going via gears to both axles. Whether you're carving tarmac or sliding across flat dirt, the Golf II GTI 16V Rally delivers nimble, engaging handling that rewards skilled driving.
Key Features
- 1/10 scale R/C model assembly kit with 397mm length, 170mm width, 142mm height
- Authentic Volkswagen Golf II GTI 16V Rally Group A champion body
- Lightweight, durable polycarbonate body shell

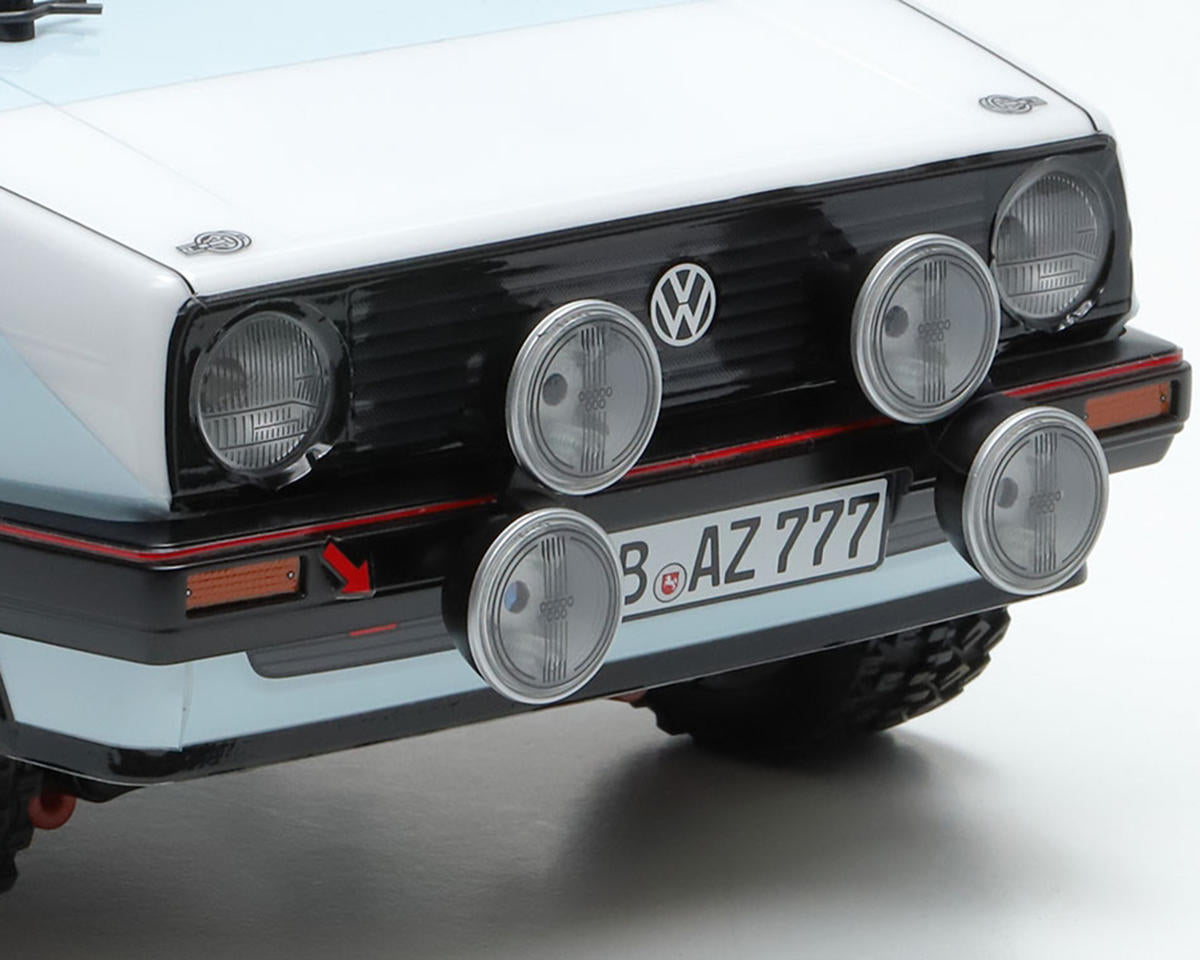

- Separately molded plastic headlight cases and spotlights (LED compatible)
- Separately molded taillight cases (LED compatible)
- Dedicated parts for distinctive side mirrors with sticker surfaces
- Separate bumper component
- MF-01X shaft-driven 4WD chassis with monocoque frame
- Rear-mounted motor layout for balanced rally dynamics
- Dish wheels paired with rally block tires
- 540 Torque Tuned motor included
- HobbyWing THW 1060 ESC included
- Comprehensive decal sheet for body details
Performance Benefits
- Nimble, confidence-inspiring 4WD handling
- Rear motor layout provides realistic rally dynamics
- Central battery pack location for excellent balance
- 4-wheel independent double wishbone suspension
- Coil-sprung friction dampers front and rear
- 3-bevel differential gears for smooth power delivery
- 2-piece steering tie-rod for precise response
- Compact size suits tight indoor and outdoor tracks
- Three wheelbase options: 210mm, 225mm, and 239mm (L)
Usage Notes
The MF-01X chassis excels on both paved surfaces and flat dirt, making it a true mixed-surface rally platform. The compact size and nimble handling are well-suited for tight tracks and indoor venues. The rear-motor layout requires a slightly different driving technique than front or mid-motor cars—trail braking and smooth throttle inputs work best. Polycarbonate light cases are compatible with separately sold 5mm LEDs. Recommended for ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
- Scale: 1/10
- Length: 397mm
- Width: 170mm
- Height: 142mm
- Wheelbase: 239mm (L) - also 210mm and 225mm options
- Tread: 138mm front and rear
- Tire Size: 26mm width × 60mm diameter
- Frame: Monocoque type
- Drive: Shaft-driven 4WD
- Motor Position: Rear-mounted
- Chassis: MF-01X
- Body Material: Polycarbonate
- Motor: 540 Torque Tuned brushed
- ESC: HobbyWing THW 1060 (2-3S compatible)
- Suspension: 4-wheel independent double wishbone
- Dampers: Coil-sprung friction type
- Differentials: 3-bevel gear type
- Gear Ratio: 9.5:1
- Manufacturer: Tamiya
- Item Number: 58714
What's Included
- Complete unassembled MF-01X chassis kit
- Polycarbonate Volkswagen Golf II GTI 16V Rally body (clear)
- Separately molded headlight cases and spotlights
- Separately molded taillight cases and bumper
- Dedicated side mirror parts
- Dish wheels (4)
- Rally block tires (4)
- Body detail sticker sheet
- Window masking tape
- 540 Torque Tuned motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools (screwdrivers, pliers, hobby knife)
- Optional: 5mm LED light unit for headlights and taillights
Summary
The Tamiya Volkswagen Golf II GTI 16V Rally MF-01X brings classic hot-hatch heritage to the mixed-surface rally arena. Built on the compact, versatile MF-01X 4WD chassis with rear-mounted motor layout, this kit delivers authentic rally dynamics and engaging handling on both tarmac and dirt. Perfect for European motorsport fans, VW enthusiasts, and builders seeking a nimble, customizable platform with genuine all-surface capability and extensive hop-up options.
