Overview

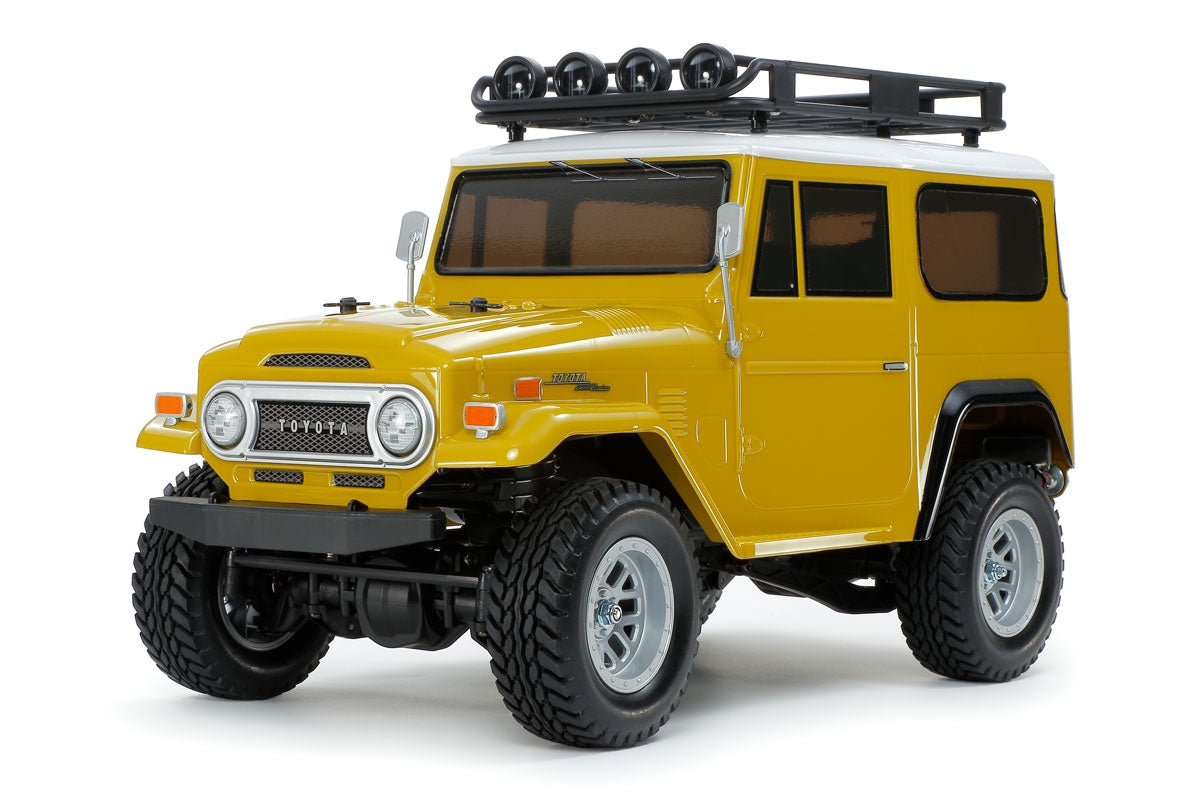

The Tamiya Toyota Land Cruiser 40 is a 1/10 scale electric 4WD scale crawler and trail truck kit that faithfully recreates one of the most legendary off-road vehicles ever produced. Built on Tamiya's CC-02 chassis, this model blends authentic scale detail with a rugged ladder-frame design engineered for realistic off-road driving, rock crawling, and trail exploration.
The Toyota Land Cruiser J40 series was produced from 1960 to 1984 (and until 2001 in some markets), earning a legendary reputation for off-road capability and reliability that continues to inspire enthusiasts worldwide. This RC kit captures the classic short-wheelbase design with impressive attention to detail, including separately molded scale accessories and an authentic roof rack with light pods.
Key Features
- 1/10 scale electric 4WD scale crawler/trail truck assembly kit
- Officially licensed Toyota Land Cruiser 40 body
- CC-02 ladder-frame chassis inspired by full-size 4WD vehicles
- Longitudinal motor placement behind front axle
- Shaft-driven 4WD drivetrain with separate gearbox and transfer case
- Four-link rigid suspension front and rear
- CVA oil-filled shock absorbers
- Lockable 3-bevel gear differentials

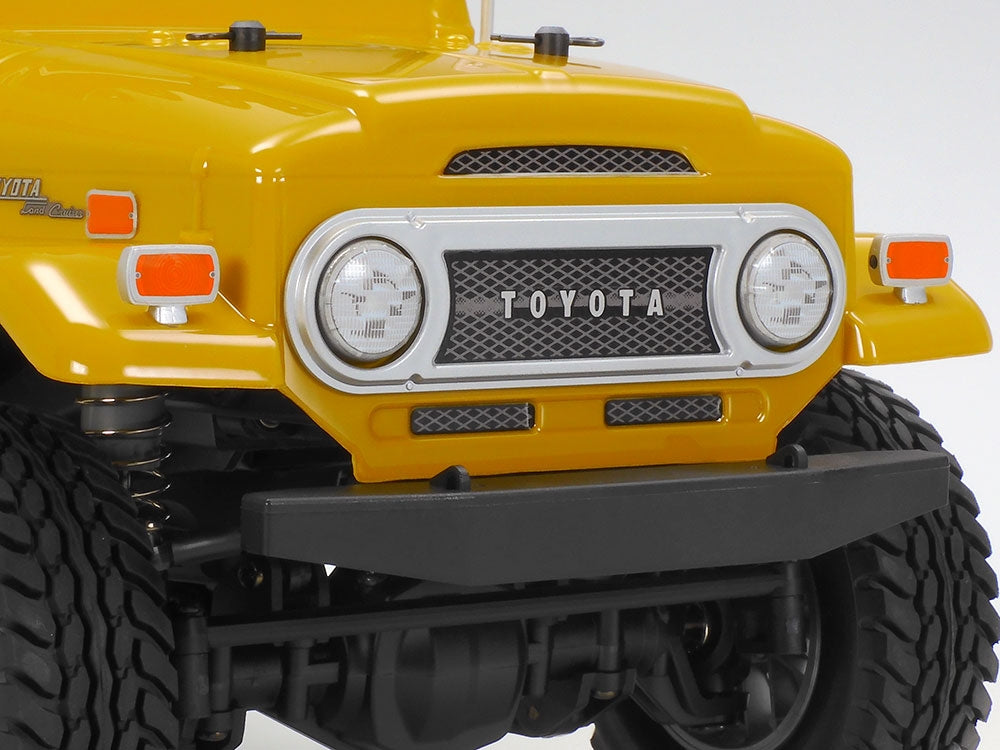

- Detailed scale body with separate grille, mirrors, and turn signals

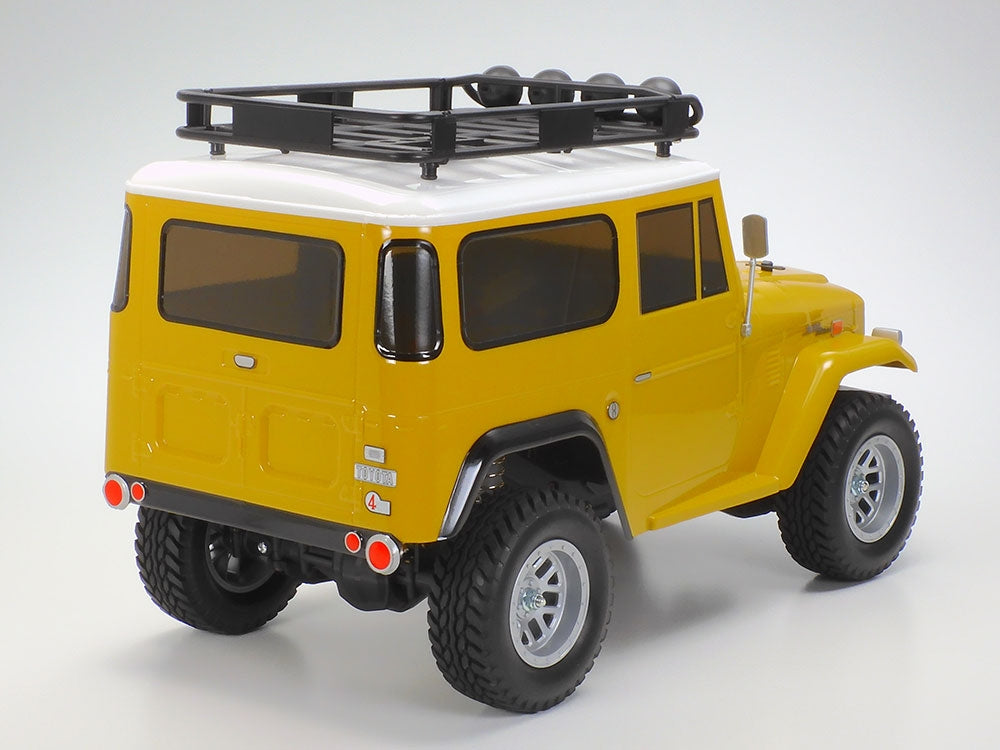

- Roof rack with integrated light pods
- Silver 12-spoke wheels with block pattern tires
- Type 540 motor and Hobbywing 1060 ESC included
- Integrated window tint and frame decals included
Historical Significance
The Toyota Land Cruiser 40 series represents the golden era of purpose-built off-road vehicles. Produced for over two decades, the J40 became the benchmark for 4WD capability, serving military, commercial, and recreational users across the globe. Its simple, rugged design and legendary reliability established Toyota's reputation in the off-road segment and continues to influence modern SUV design. This Tamiya kit celebrates that heritage with authentic scale reproduction.
Chassis Features
- CC-02 ladder-frame construction inspired by real 4WD vehicles
- Motor mounted longitudinally behind front axle
- Separated gearbox and transfer case
- Propeller shafts transmitting power to front and rear axles
- Reinforced plastic axle housings
- Lockable 3-bevel differentials (for low-grip surfaces)

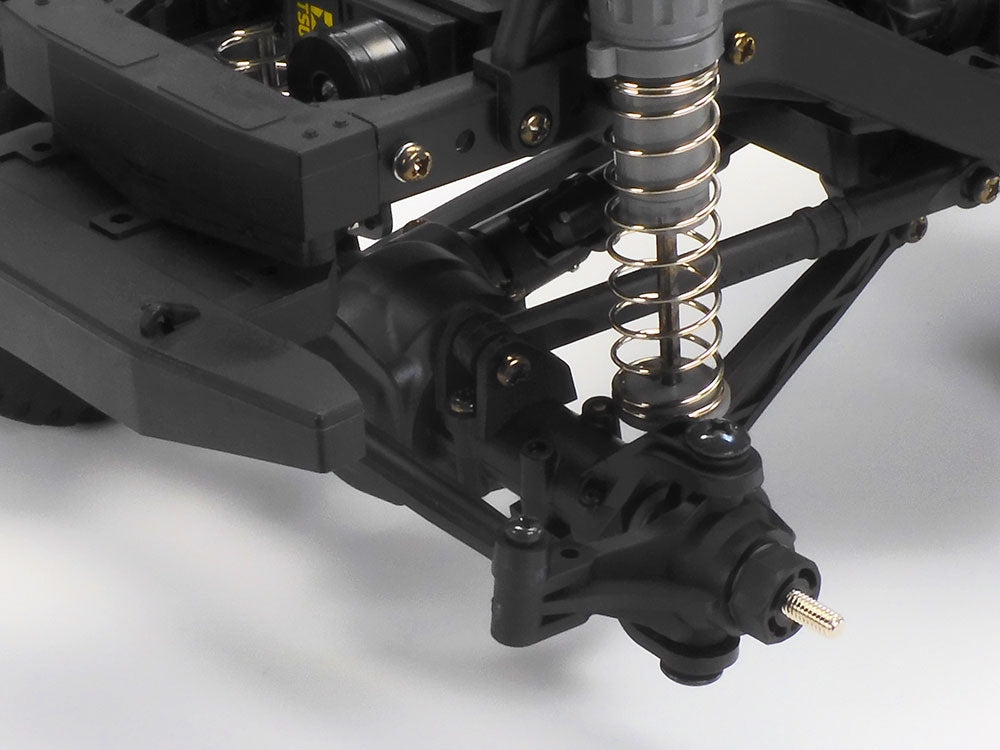

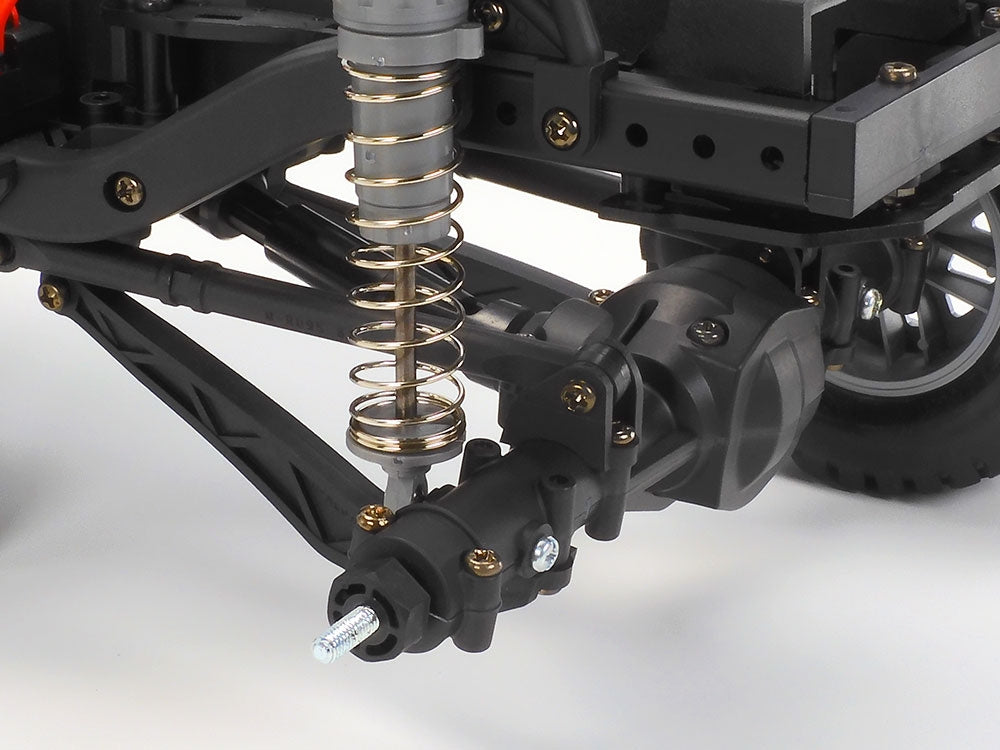

- Four-link rigid suspension system
- CVA oil-filled dampers all around
- Gear ratio: 17.33:1 (with 16T pinion)
- Ample ground clearance for off-road terrain
- Adjustable wheelbase capability
Performance Benefits
- Four-link suspension delivers excellent articulation over obstacles
- Lockable differentials improve traction on challenging surfaces
- CVA oil dampers provide controlled, consistent suspension action
- Low gear ratio (17.33:1) optimized for low-speed crawling
- Longitudinal motor placement ensures balanced weight distribution
- Shaft-driven 4WD delivers reliable power to all wheels
- Ladder-frame design provides superior durability
- Block pattern tires offer excellent grip on rocks and trails
Usage Notes
- Designed for trail driving, rock crawling, and scale realism
- Optimized for low-speed off-road operation, not high-speed running
- Differentials can be locked for improved traction on loose surfaces
- Polycarbonate body requires Tamiya PS spray paint
- Window tint and frame decals included - eliminates need to paint windows
- Wide wheels also included for stance customization
- Plastic bushings included - upgrade to ball bearings recommended
- M-size wheelbase configuration (252mm)
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Technical Specs
| Specification |
Detail |
| Scale |
1/10 |
| Length |
390mm (15.4") |
| Width |
200-237mm (7.9"-9.3") |
| Height |
240mm (9.4") |
| Wheelbase |
252mm (M-size) |
| Tread (Front/Rear) |
164mm / 167mm |
| Tire Width/Diameter |
33mm / 90mm |
| Drive System |
4WD (Shaft-Driven) |
| Chassis |
CC-02 Ladder-Frame |
| Suspension |
4-Link Rigid (Front & Rear) |
| Dampers |
CVA Oil-Filled |
| Differentials |
3-Bevel Gear (Lockable) |
| Motor |
Type 540 Brushed (Included) |
| ESC |
Hobbywing 1060 2-3S (Included) |
| Gear Ratio |
17.33:1 (with 16T pinion) |
What's Included
- Tamiya Toyota Land Cruiser 40 complete CC-02 chassis kit
- Polycarbonate Land Cruiser 40 body
- Separately molded scale detail parts (grille, mirrors, turn signals)
- Roof rack with light pods
- Integrated window tint and frame decals
- Type 540 brushed motor
- Hobbywing 1060 electronic speed controller (ESC)
- Silver 12-spoke wheels (plus wide wheels)
- Block pattern off-road tires
- CVA oil-filled dampers
- Assembly hardware and instruction manual
Needed to Complete
- 2-channel radio system with receiver
- Steering servo
- 7.2-7.4V (2S) battery pack
- Compatible battery charger
- Tamiya PS polycarbonate spray paint
- AA batteries for transmitter
Summary
The Tamiya Toyota Land Cruiser 40 on the CC-02 chassis delivers the ultimate scale crawling and trail truck experience. This officially licensed kit faithfully recreates the legendary J40 series Land Cruiser that defined off-road capability for over two decades. The CC-02's ladder-frame design, four-link suspension, and lockable differentials provide authentic off-road behavior, while included scale details like the roof rack with light pods and separately molded accessories ensure display-worthy realism. With motor and ESC included, this kit is ready for trail adventures right out of the box.
