Overview

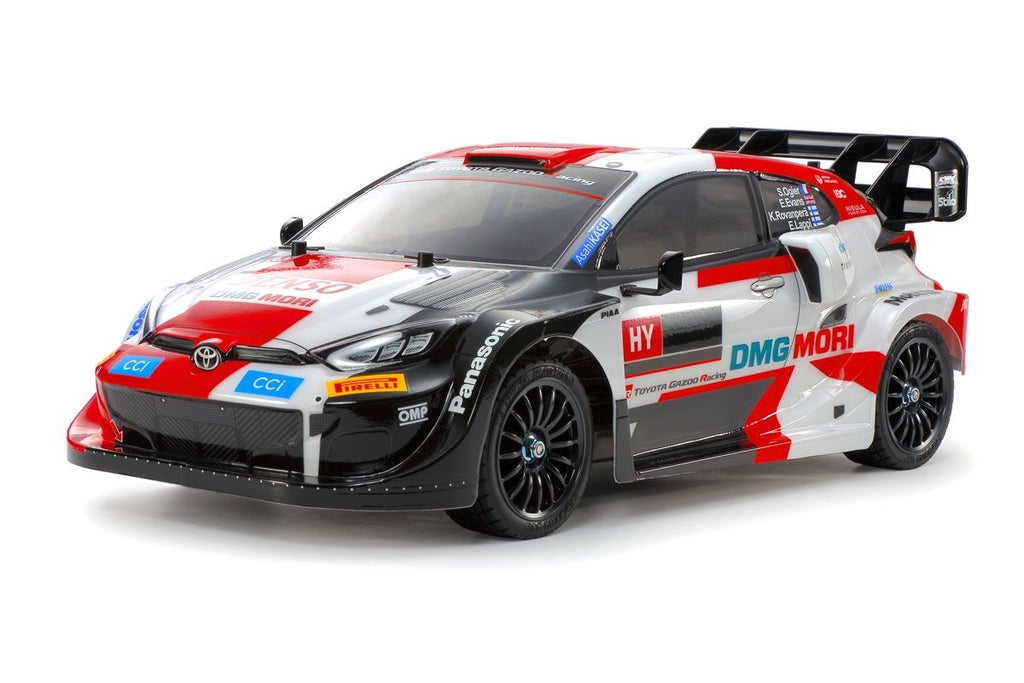

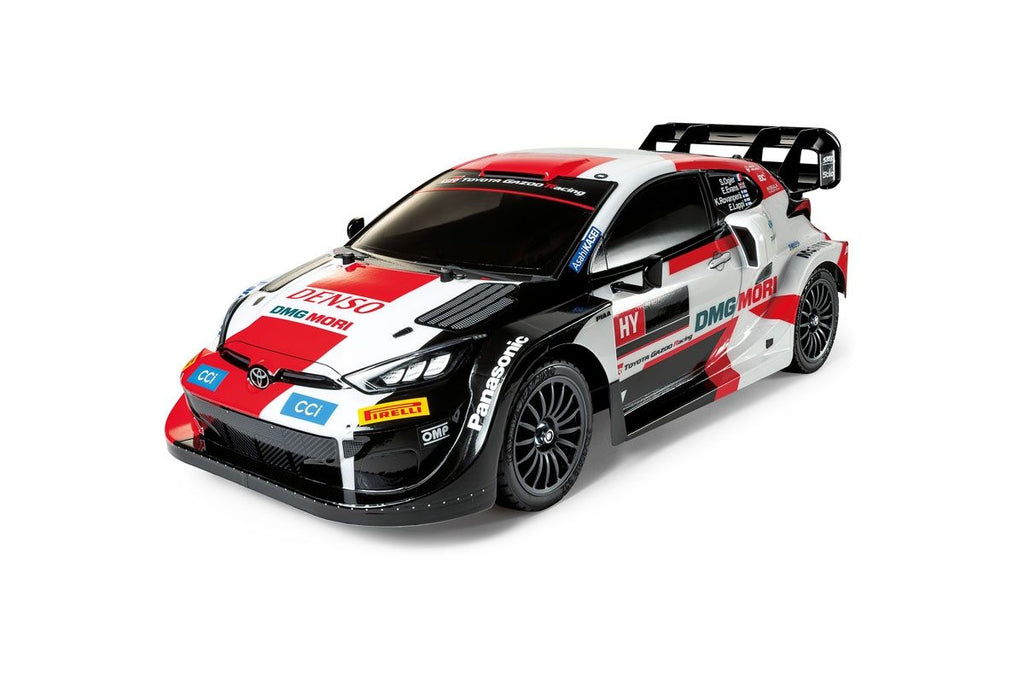

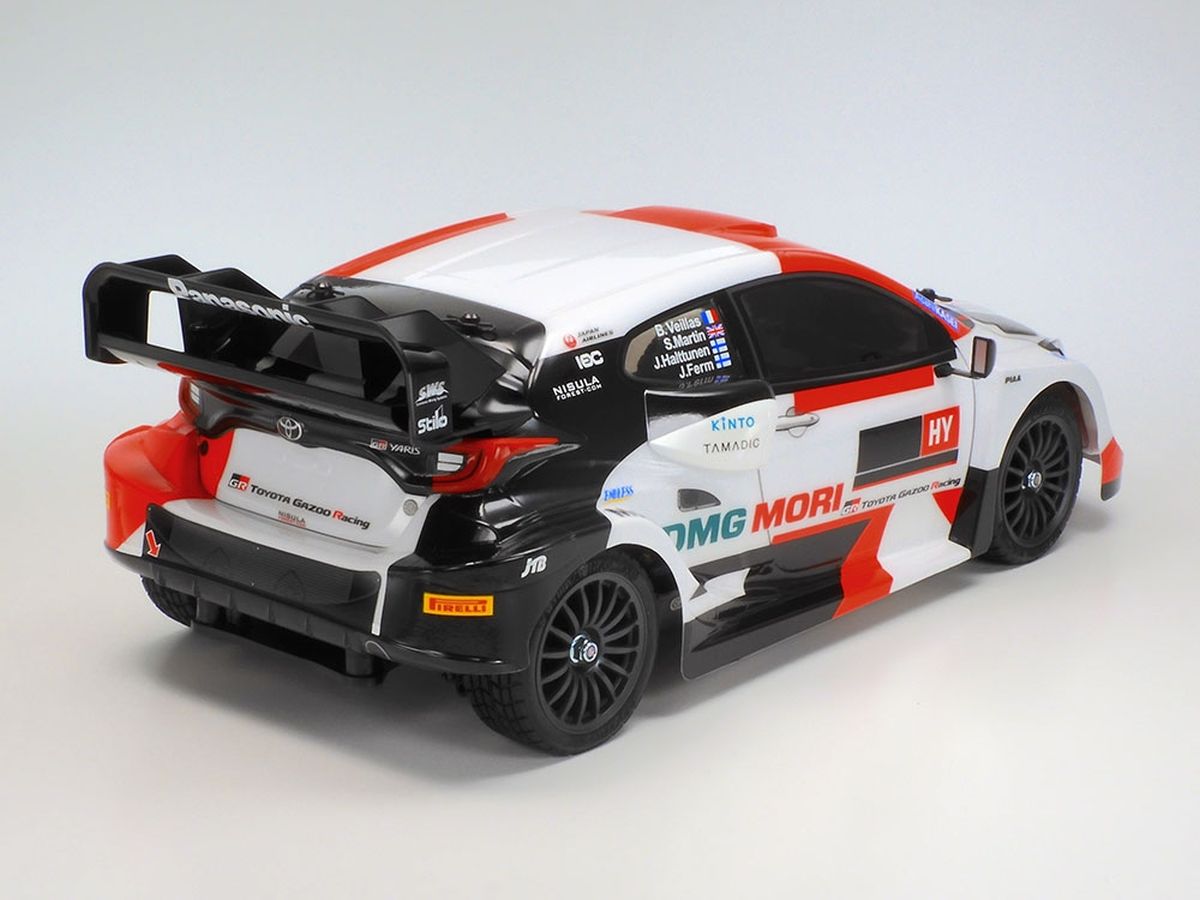

The Tamiya Toyota GAZOO Racing WRT/GR Yaris Rally1 Hybrid RC assembly kit brings cutting-edge World Rally Championship technology to the RC world. This 1/10 scale model recreates the hybrid-powered rally machine that dominated the 2022 WRC season, capturing both Manufacturer's and Driver's Championships. The GR Yaris Rally1 Hybrid represents the pinnacle of modern rally technology, combining a 1.6-liter inline 4-cylinder direct injection turbo engine with a hybrid motor and generator unit capable of producing over 500PS and 500Nm of torque.

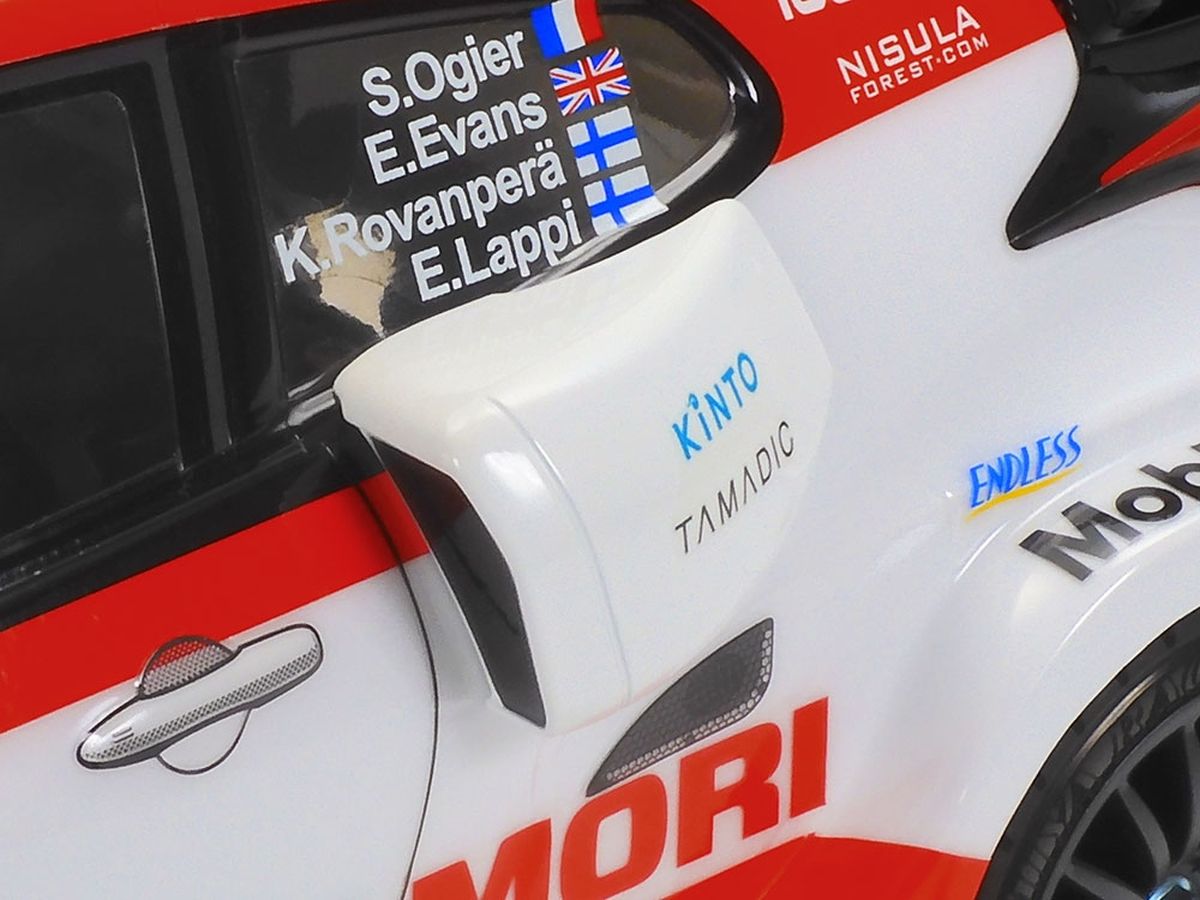

Built on Tamiya's proven TT-02 shaft-driven 4WD chassis, this kit delivers modern WRC styling with accessible RC performance. The souped-up polycarbonate body expertly recreates the complex form of this rally car, featuring separate polycarbonate headlight cases, black plastic side mirrors, a two-piece large rear wing, and distinctive side air ducts for hybrid unit cooling. Plentiful stickers allow you to replicate the championship-winning GAZOO Racing livery in stunning detail, while the included urethane bumper provides crash protection during spirited driving.
Key Features
- 1/10 scale R/C model assembly kit with 416mm length, 190mm width, 146mm height
- Authentic Toyota GR Yaris Rally1 Hybrid WRC Championship body
- Lightweight, durable polycarbonate body shell

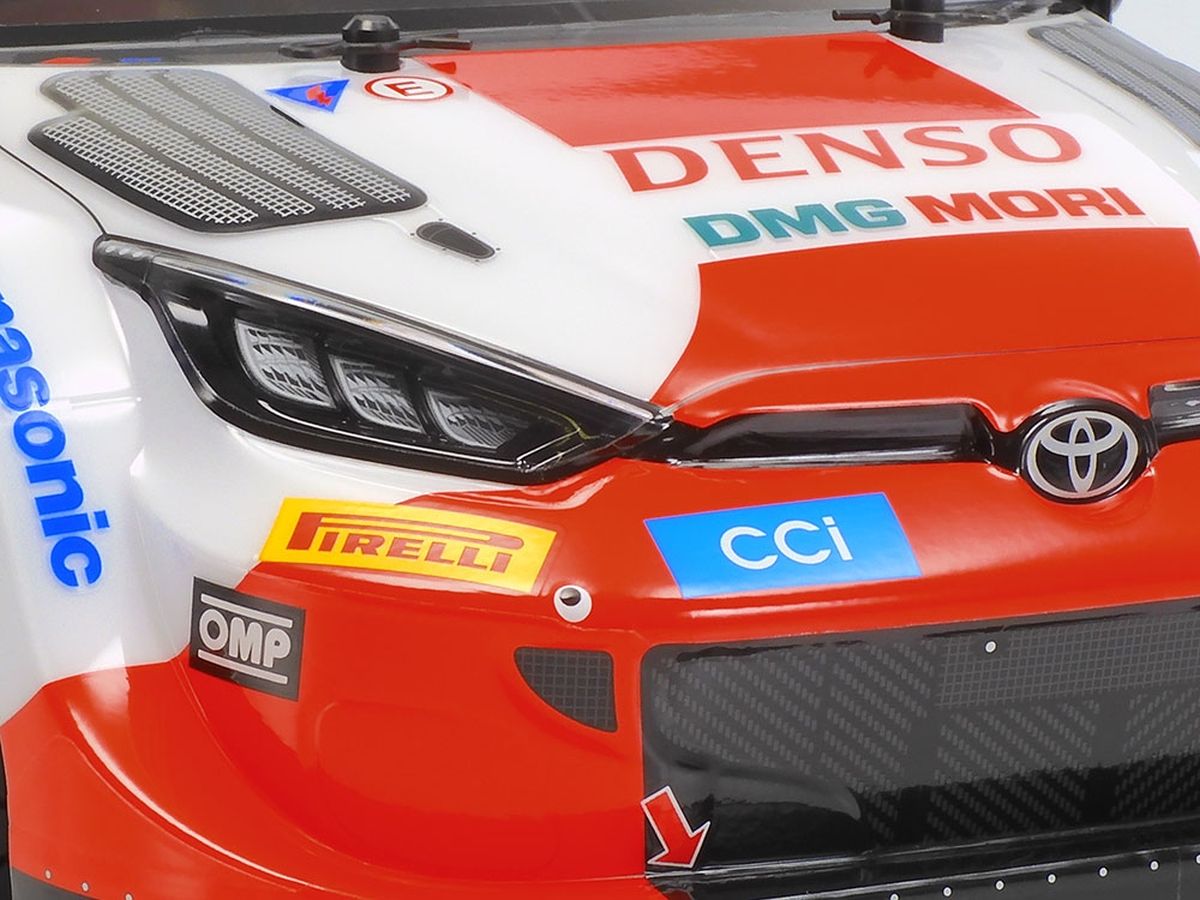

- Separate polycarbonate headlight cases for 3D realistic finish

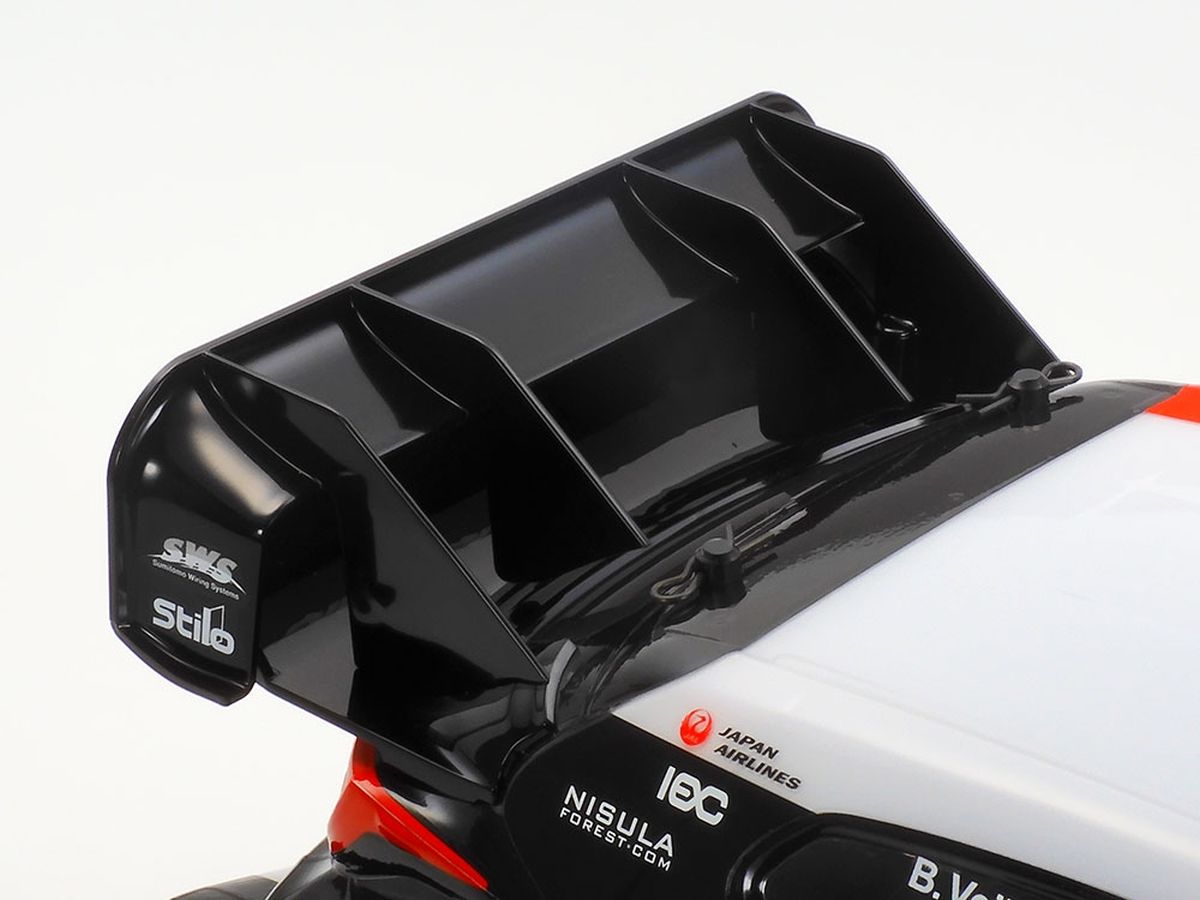

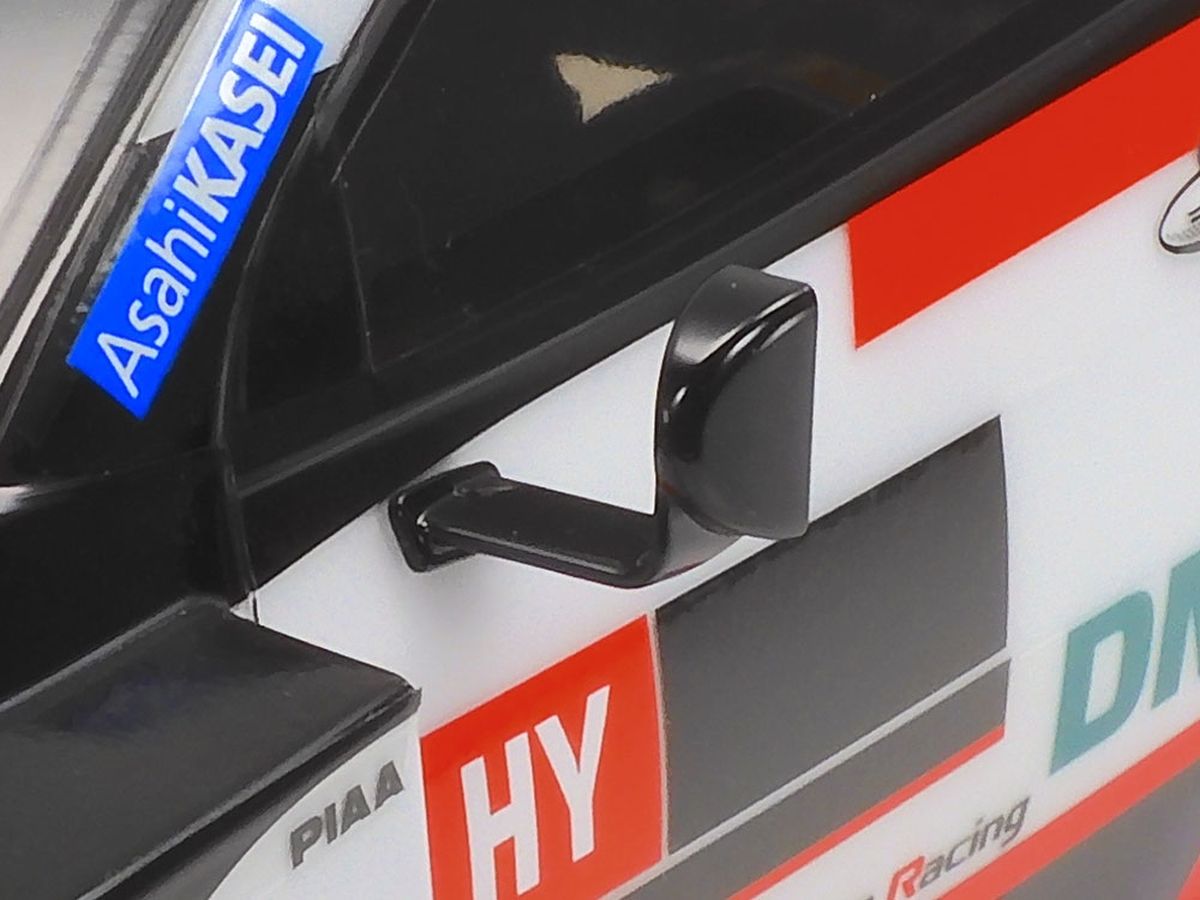

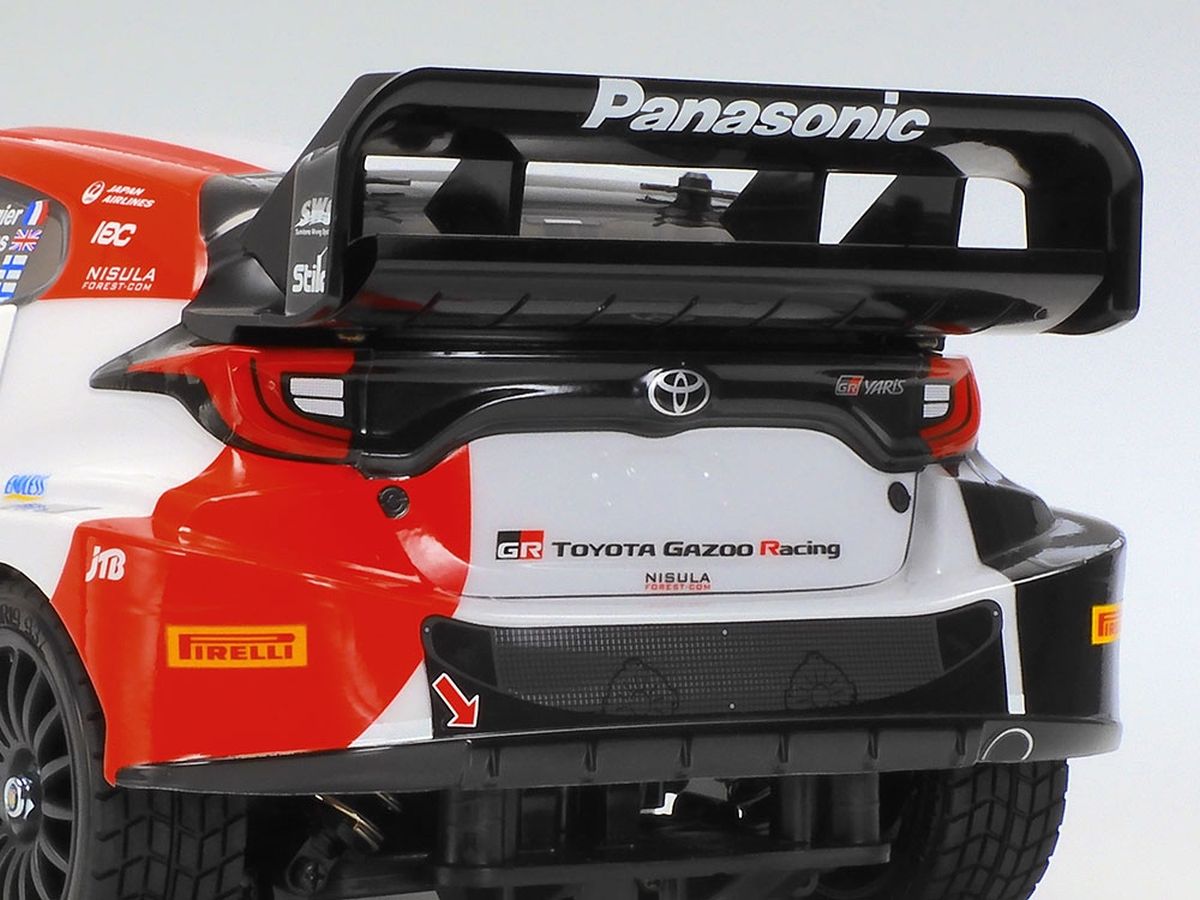

- Black plastic side mirrors, 2-piece large rear wing, side ducts and caps
- TT-02 shaft-driven 4WD chassis with longitudinal layout
- Dark gun metal color fin-spoke wheels (Item 50678)
- Racing radial tires (Item 50419)
- Urethane bumper (Item 51019) for crash protection
- 540 Torque Tuned motor included
- HobbyWing THW 1060 Brushed Motor ESC included
- Comprehensive GAZOO Racing decal sheet and window masking tape
Performance Benefits
- Excellent stability from balanced shaft-driven 4WD layout
- Battery on left, motor on right for optimal weight distribution

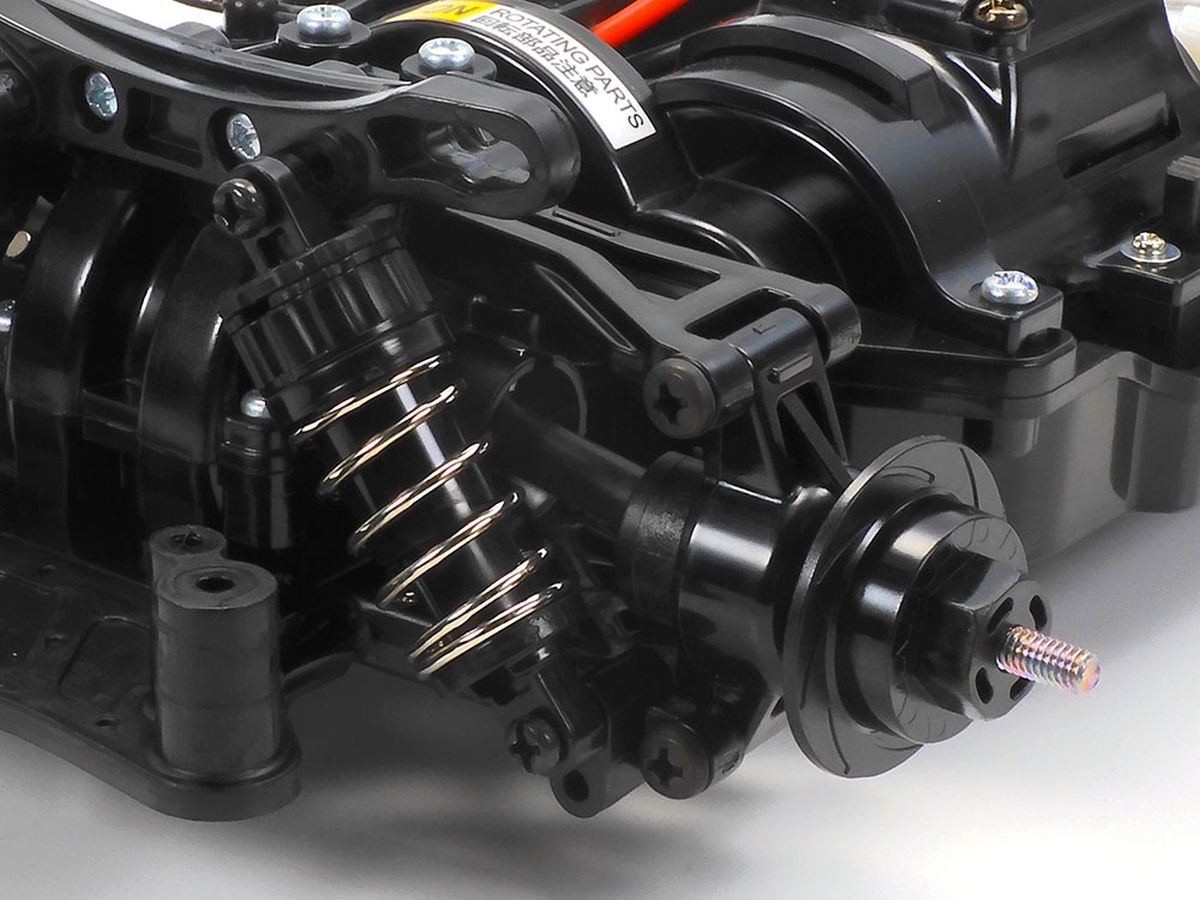

- 4-wheel independent double wishbone suspension
- Front and rear friction dampers for predictable handling
- 4-bevel plastic differentials for smooth cornering
- 3-piece steering tie-rod with resin ball links for comfortable motion
- Highly adaptable with 10 possible gear ratio configurations
- 2 wheelbase options, 2 ground clearance settings, 2 tread setups
- Urethane bumper protects body during impacts
Usage Notes
Optimized for on-road driving on smooth paved surfaces and light rally-style driving on flat dirt. The racing radial tires provide excellent grip on tarmac. Note that front LED lights cannot be attached to this body. The TT-02 chassis is beginner-friendly and highly customizable with extensive hop-up parts availability. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
-
Scale: 1/10
-
Length: 416mm
-
Width: 190mm
-
Height: 146mm
-
Wheelbase: 257mm
-
Tire Size: 26mm width × 66mm diameter
-
Frame: Bathtub-type
-
Drive: Shaft-driven 4WD
-
Chassis: TT-02
-
Body Material: Polycarbonate
-
Motor: 540 Torque Tuned brushed
-
ESC: HobbyWing THW 1060 (2-3S compatible)
-
Suspension: 4-wheel independent double wishbone
-
Dampers: Friction type front and rear
-
Differentials: 4-bevel plastic front and rear
-
Gear Ratio: 8.27:1 (9 additional ratios available)
-
Bearings: Plastic bushing (upgradeable)
-
Manufacturer: Tamiya
-
Item Number: 58716
What's Included
- Complete unassembled TT-02 chassis kit
- Polycarbonate GR Yaris Rally1 Hybrid body (clear)
- Separate polycarbonate headlight cases
- Black plastic side mirrors, 2-piece rear wing, side ducts and caps
- Dark gun metal fin-spoke wheels (4)
- Racing radial tires (4)
- Urethane bumper for crash protection
- GAZOO Racing livery decal sheet
- Window masking tape
- 540 Torque Tuned motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools (screwdrivers, pliers, hobby knife)
Summary
The Tamiya Toyota GR Yaris Rally1 Hybrid TT-02 captures modern WRC championship dominance in an accessible 1/10 scale package. With its detailed hybrid rally body, included motor and ESC, protective urethane bumper, and versatile TT-02 4WD platform, this kit delivers authentic contemporary rally styling for spirited driving or impressive display. Perfect for modern WRC enthusiasts, GAZOO Racing fans, and builders seeking a championship-proven rally design with extensive upgrade potential.
