Overview

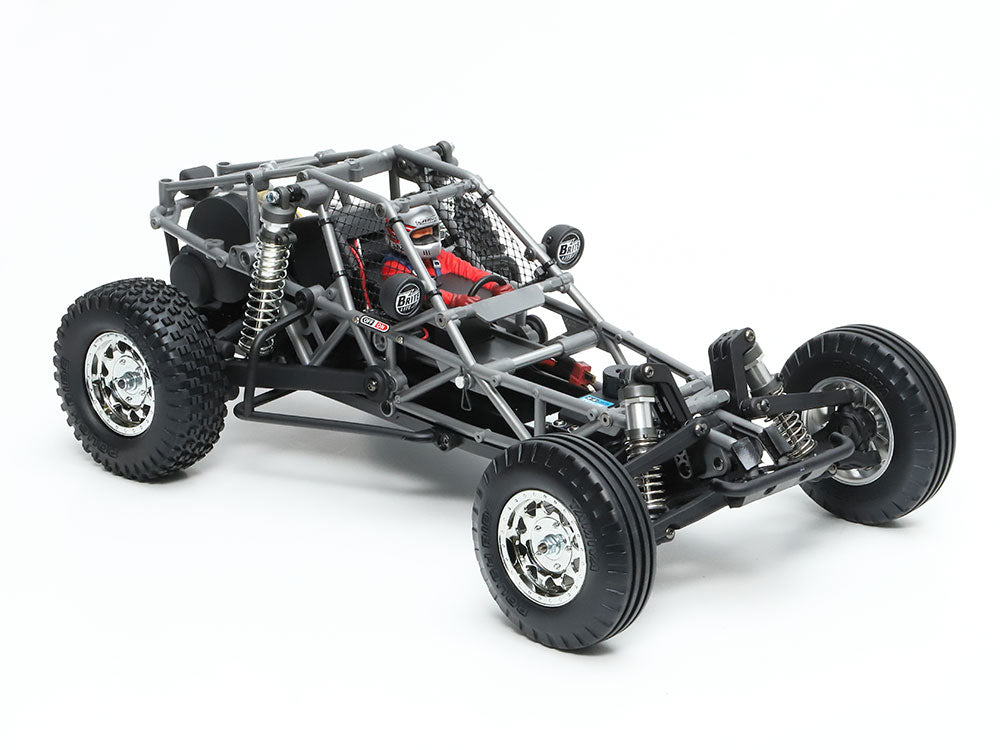

The Tamiya BBX is a 1/10 scale 2WD off-road buggy assembly kit that blends classic desert racing style with modern performance engineering. Inspired by iconic single-seat off-road buggies and 1980s sand rail dune buggies, the BBX delivers realistic scale looks, balanced handling, and a rewarding build experience on Tamiya's all-new BB-01 chassis. The body was designed by renowned Japanese artist Atsushi Arino, featuring a classic 1980s-inspired livery.
Designed for enthusiasts who appreciate both scale realism and capable off-road performance, the BBX offers a unique driving experience that stands apart from traditional racing buggies. Its hybrid monocoque-roll cage chassis construction, rear trailing arm suspension inspired by full-size UTVs, and premium aluminum aeration oil dampers deliver serious off-road capability wrapped in unmistakable retro styling.
Key Features
- 1/10 scale 2WD off-road buggy assembly kit
- All-new BB-01 rear-wheel drive chassis
- Hybrid monocoque and roll cage construction
- Front double wishbone suspension with A-shaped arms (25° skid angle)
- Rear trailing arm suspension inspired by full-size UTVs
- Premium aluminum aeration oil dampers (all four wheels)
- TA06 rear ball differential for consistent traction
- Full ball bearings and universal drive shafts included
- Retro-styled metal-plated bead lock wheels
- Scale body designed by Atsushi Arino with classic 1980s livery
- Driver figure and cockpit safety nets included
- Flip-up rear roll cage for easy motor access
Chassis Features
- BB-01 one-piece monocoque frame with integrated roll cage
- FRP (Fiber Reinforced Plastic) construction
- Lengthwise battery pack placement in chassis center
- Rear-mounted transverse motor for optimal rear traction
- Sealed gearbox with TA06 ball differential
- Front A-arms with 25-degree skid angle
- Long rear trailing arms for alignment adjustment
- 3-piece steering tie-rod with hi-torque servo saver
- Flat undersurface minimizes snagging on obstacles
- Plastic side guards protect suspension components
- Gear ratio: 12.42:1 with kit 18T pinion
Performance Benefits
- Rear-wheel drive with rear motor provides excellent rear traction
- Ball differential delivers consistent, predictable power delivery
- Aluminum aeration oil dampers offer superior shock absorption
- A-shaped front arms with skid angle handle rough terrain confidently
- Long trailing arm rear suspension allows alignment fine-tuning
- Universal drive shafts reduce binding through suspension travel
- Full ball bearings maximize drivetrain efficiency
- Flat chassis undersurface prevents hang-ups on obstacles
Usage Notes
- Designed for off-road surfaces including dirt, sand, and loose terrain
- Requires LOW-PROFILE steering servo (approx. 40.5mm x 20mm x 25.4mm)
- 540-size motor with shaft over 10.5mm required (not included)
- ESC sold separately
- Battery compartment accommodates square-shaped 2S LiPo battery
- 0.7mm polycarbonate body requires Tamiya PS spray paint
- Optional TA-06 oil-filled gear differential available for upgrade
- Spare tire mount adapter included (spare tire sold separately)
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Technical Specs
| Specification |
Detail |
| Scale |
1/10 |
| Length |
414mm (16.3") |
| Width |
233mm (9.2") |
| Height |
136mm (5.4") |
| Wheelbase |
283mm (11.1") |
| Tread (Front/Rear) |
196mm / 202mm |
| Tire Width/Diameter (Front) |
30mm / 92mm |
| Tire Width/Diameter (Rear) |
38mm / 96mm |
| Drive System |
2WD (Rear-Wheel Drive) |
| Chassis |
BB-01 (Monocoque + Roll Cage) |
| Chassis Material |
FRP (Fiber Reinforced Plastic) |
| Suspension (Front) |
Double Wishbone with A-Arms |
| Suspension (Rear) |
Trailing Arm |
| Dampers |
Aluminum Aeration Oil-Filled |
| Differential |
TA06 Ball Differential |
| Motor |
540-size (Not Included) |
| ESC |
Not Included |
| Gear Ratio |
12.42:1 (with 18T pinion) |
What's Included
- Tamiya BBX 6-piece polycarbonate body set
- Molded roll cage, light pods, and safety nets
- Driver figure
- BB-01 chassis kit components
- Aluminum aeration oil dampers
- TA06 ball differential
- Metal-plated bead lock style wheels
- Front rib pattern tires
- Rear square spike tires
- Tire inserts
- Universal drive shafts
- Full ball bearing set
- Spare tire mount adapter
- Decal sheet with 1980s-inspired livery
- Assembly hardware and instruction manual
Needed to Complete
- 2-channel radio system with receiver
- Low-profile steering servo (max dimensions: 40.5mm x 20mm x 25.4mm)
- 540-size motor (shaft length 10.5mm+)
- Electronic speed controller (ESC)
- 7.2-7.4V battery pack (square 2S LiPo compatible)
- Compatible battery charger
- Tamiya PS polycarbonate spray paint
- AA batteries for transmitter
- 1mm drill bit for shock caps (recommended)
Summary
The Tamiya BBX represents the perfect fusion of classic desert buggy aesthetics and modern RC engineering. Its all-new BB-01 chassis delivers serious off-road performance through the innovative hybrid monocoque-roll cage design, UTV-inspired rear trailing arm suspension, and premium aluminum aeration oil dampers. Designed by acclaimed artist Atsushi Arino, the multi-piece body captures the spirit of 1980s sand rail racing with authentic styling details. With full ball bearings, a TA06 ball differential, and extensive hop-up compatibility, the BBX offers both instant gratification and long-term tuning potential for off-road enthusiasts of all skill levels.
