Description
Overview

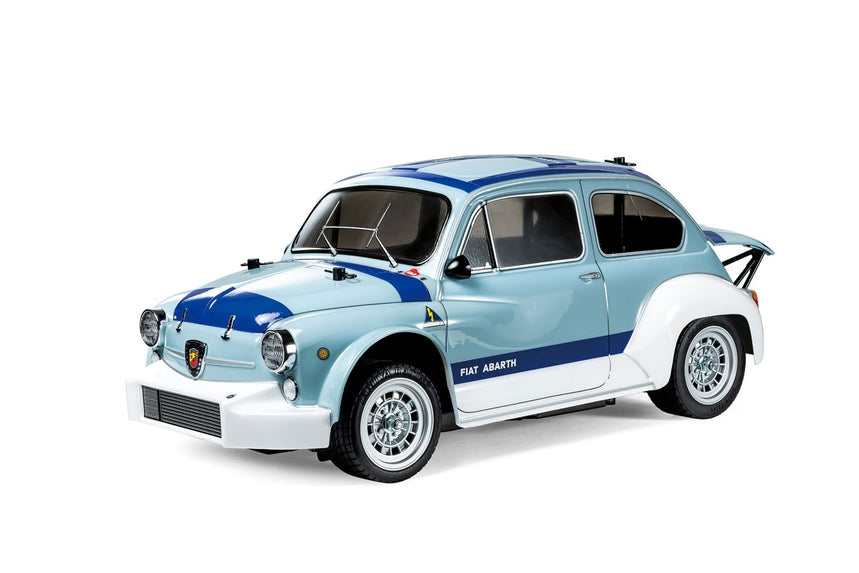

The Tamiya Fiat Abarth 1000 TCR Berlina Corse is a 1/10 scale 2WD on-road assembly kit that recreates one of the most iconic small-displacement touring cars of the late 1960s. Based on the compact Fiat 600 and heavily tuned by legendary Italian performance house Abarth, the 1000 TCR earned European Touring Car Championship class titles in 1968 and 1969, combining lightweight design with aggressive performance that punched well above its weight class.
This model brings that championship heritage to life on Tamiya's innovative MB-01 chassis, offering classic looks, balanced on-road handling, and multiple configuration options that make it ideal for both first-time builders and experienced RC enthusiasts. The all-new MB-01 platform represents the evolution of Tamiya's beloved M-chassis series, providing six different setup combinations through its modular design.
Key Features
- 1/10 scale 2WD on-road RC assembly kit
- Faithful reproduction of the championship-winning Fiat Abarth 1000 TCR
- All-new MB-01 modular chassis with multiple configuration options
- Midship motor, rear-wheel drive setup for realistic handling

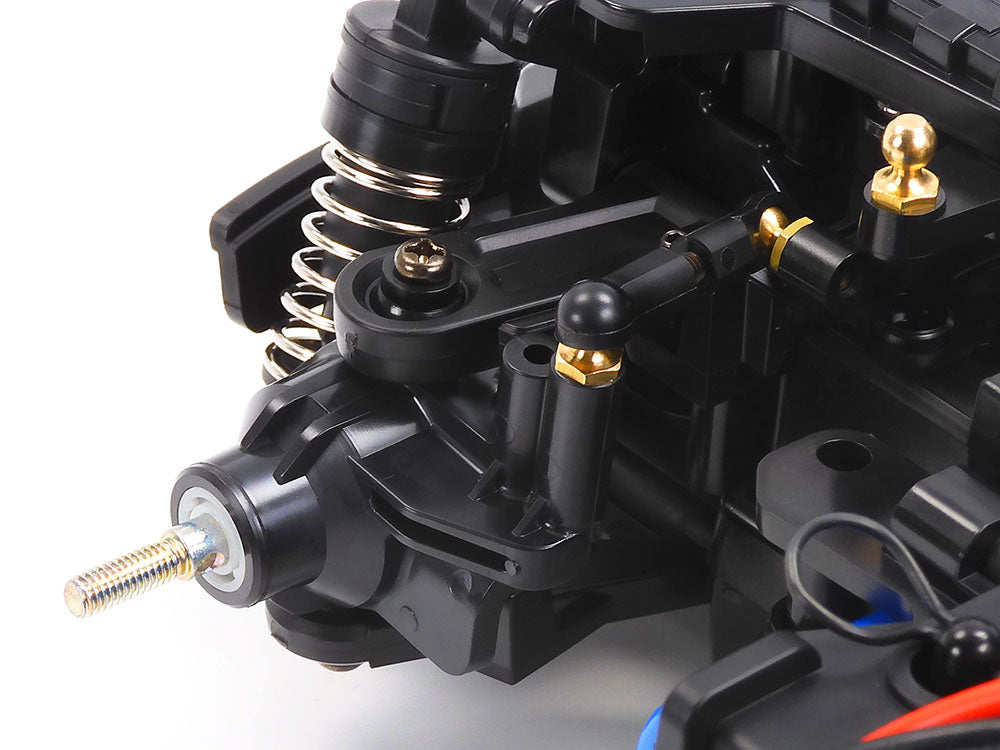

- Four-wheel double wishbone suspension with symmetrical arms
- Different-diameter front (55mm) and rear (60mm) tires for authentic stance
- Unitized motor mount, final gears, and suspension for easy maintenance
- Compatible with M-chassis and TT-02 hop-up option parts
- Type 540 brushed motor and Hobbywing 1060 ESC included
Historical Significance

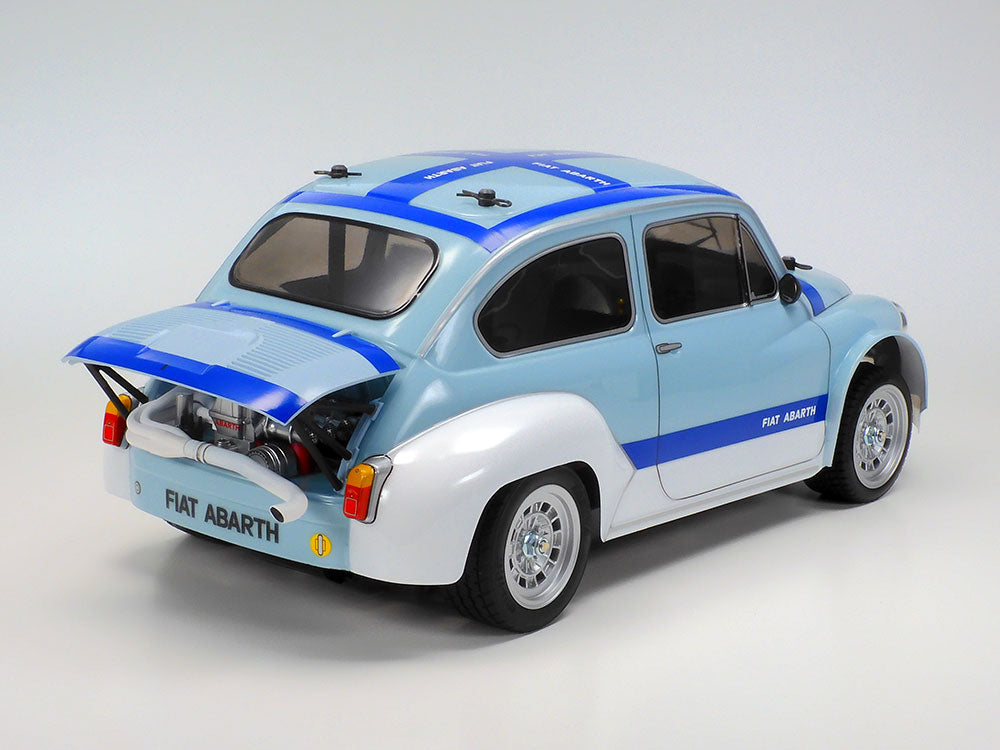

The full-scale Fiat Abarth 1000 TCR Berlina Corse was developed from the humble Fiat 600, transformed by Carlo Abarth's engineering team into a giant-killer that dominated its class in European touring car racing. Its 982cc inline-4 engine produced over 110 horsepower, propelling the lightweight car to class championships in 1968 and 1969. The muscular bodywork featured distinctive over-fenders, an integrated front radiator/oil cooler opening, and the signature horizontally-opening rear engine hood.
Chassis Features

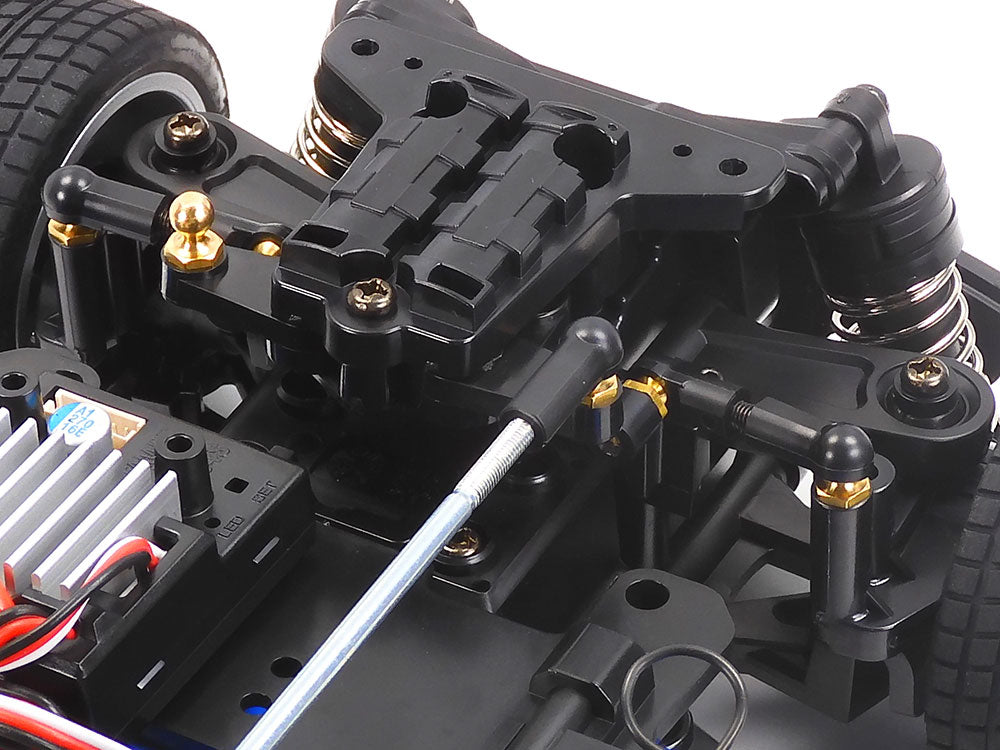

- MB-01 compact 2WD bathtub-style chassis
- Three wheelbase options: 209mm (Short), 224mm (Medium), 239mm (Long)
- Front-wheel or rear-wheel drive configurations available
- Low or high motor position for RWD setups

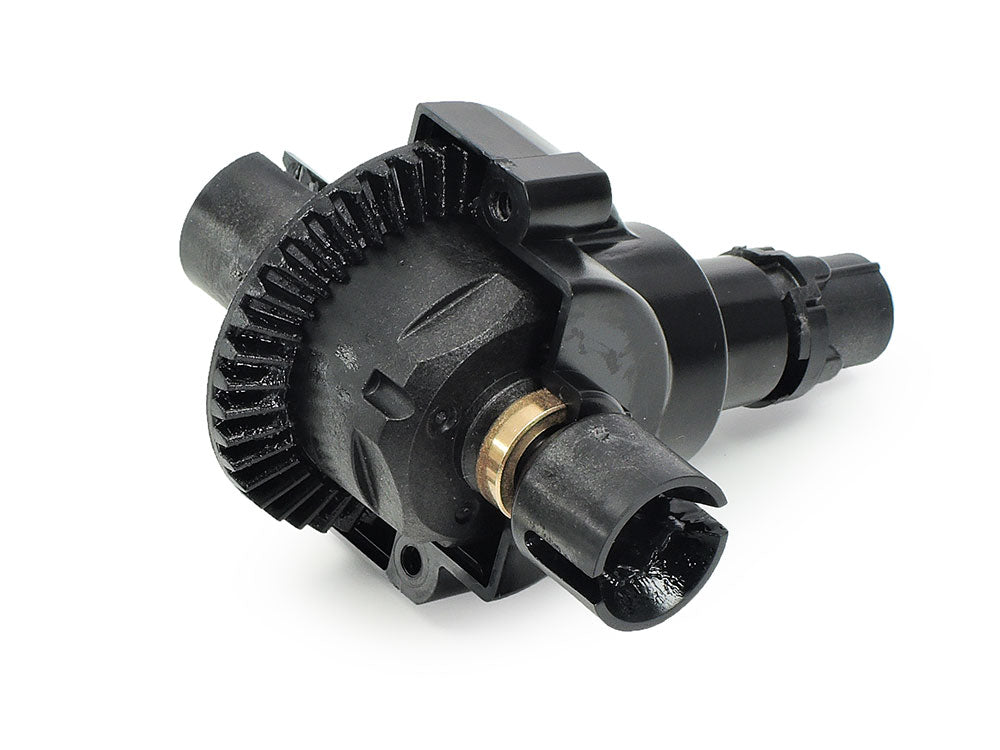

- 4-bevel differential gear (TT-02 compatible)
- 3-piece steering tie-rod assembly
- Flip-up battery holder for quick access
- Friction dampers (upgradeable to M-Chassis aluminum dampers)
- Gear ratio: 5.83:1 with kit-standard 29T pinion
Performance Benefits
- Midship motor placement provides balanced weight distribution
- Rear-wheel drive delivers realistic driving feel
- Symmetrical double wishbone suspension ensures consistent handling
- Unitized components facilitate quick pit stops and repairs
- Different-diameter tires recreate authentic vehicle stance
- 4-bevel differential compatible with TT-02 hop-up options
- Compact chassis offers excellent maneuverability
Usage Notes
- Designed for smooth on-road surfaces and indoor tracks
- This kit uses the Short (210mm) wheelbase configuration
- Polycarbonate body requires Tamiya PS spray paint
- Friction dampers can be upgraded to aluminum oil-filled dampers
- Plastic bushings should be replaced with ball bearings for best performance
- Many M-chassis and TT-chassis hop-up parts are compatible
- Multi-link suspension compatible with matched compound tires
Technical Specs
| Specification | Detail |
|---|---|
| Scale | 1/10 |
| Length | 374mm (14.7") |
| Width | 168mm (6.6") |
| Height | 140mm (5.5") |
| Wheelbase | 210mm (Short Configuration) |
| Tread (Front/Rear) | 140mm / 140mm |
| Tire Diameter (Front/Rear) | 55mm / 60mm |
| Tire Width | 25mm |
| Drive System | 2WD (Midship Motor, RWD) |
| Chassis | MB-01 Bathtub Type |
| Suspension | 4-Wheel Independent Double Wishbone |
| Dampers | Friction Type |
| Differential | 4-Bevel Gear |
| Motor | Type 540 Brushed (Included) |
| ESC | Hobbywing 1060 (Included) |
| Gear Ratio | 5.83:1 (with 29T pinion) |
What's Included
- Tamiya Fiat Abarth 1000 TCR Berlina Corse polycarbonate body
- Separately molded detail parts (mirrors, engine hood props, etc.)
- Metal-plated headlight rims
- MB-01 chassis kit components
- Type 540 brushed motor
- Hobbywing 1060 ESC
- Silver wheels with radial tires (55mm front, 60mm rear)
- Friction dampers
- Decal sheet with authentic racing livery
- Assembly hardware and instruction manual
Needed to Complete
- 2-channel radio system with receiver
- Steering servo
- 7.2-7.4V NiMH or compatible LiPo battery pack
- Compatible battery charger
- Tamiya PS polycarbonate spray paint
- AA batteries for transmitter
Summary
The Tamiya Fiat Abarth 1000 TCR Berlina Corse perfectly captures the spirit of classic European touring car racing on the versatile new MB-01 chassis. This championship-winning homologation special brought Abarth its consecutive 1968-1969 ETCC class titles, and now you can build and drive your own version. The MB-01's modular design offers unprecedented flexibility with six possible configurations, while included electronics and extensive hop-up compatibility make this kit accessible to beginners yet capable of satisfying experienced racers. For fans of vintage motorsport, Italian performance heritage, or simply beautiful compact cars, the Fiat Abarth 1000 TCR delivers on every level.
