Overview

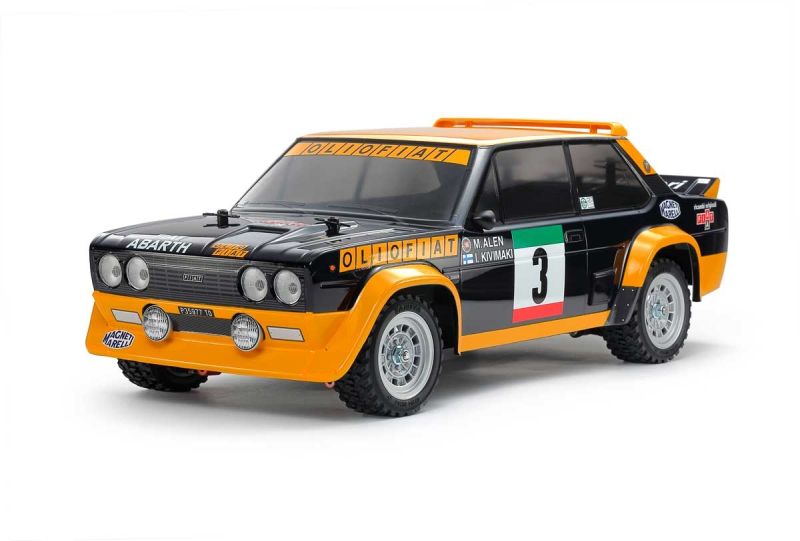

The Tamiya Fiat 131 Abarth Rally Olio Fiat RC assembly kit brings legendary 1970s World Rally Championship action to your workbench in stunning 1/10 scale detail. This model recreates the iconic Fiat 131 Abarth Rally that dominated global rally stages from 1976 to 1978, capturing three consecutive World Rally Championship titles. Developed by Abarth from the beloved Fiat 131 Mirafiori family car, the rally version became an instant legend with its distinctive orange and blue Olio Fiat livery representing Fiat's oil brand.
Built on Tamiya's compact and capable MF-01X chassis, this kit delivers authentic rally styling with genuine off-road capability. The MF-01X features a tough monocoque frame with integrated gearboxes, rear-mounted motor, and shaft-driven 4WD system that performs brilliantly on both tarmac and flat dirt surfaces. The detailed polycarbonate body captures the Fiat's alluring curves, with separate parts for quadruple headlights, spotlights, roof spoiler, and side mirrors for exceptional scale realism.
Key Features
- 1/10 scale R/C model assembly kit with 400mm length, 180mm width, 132mm height

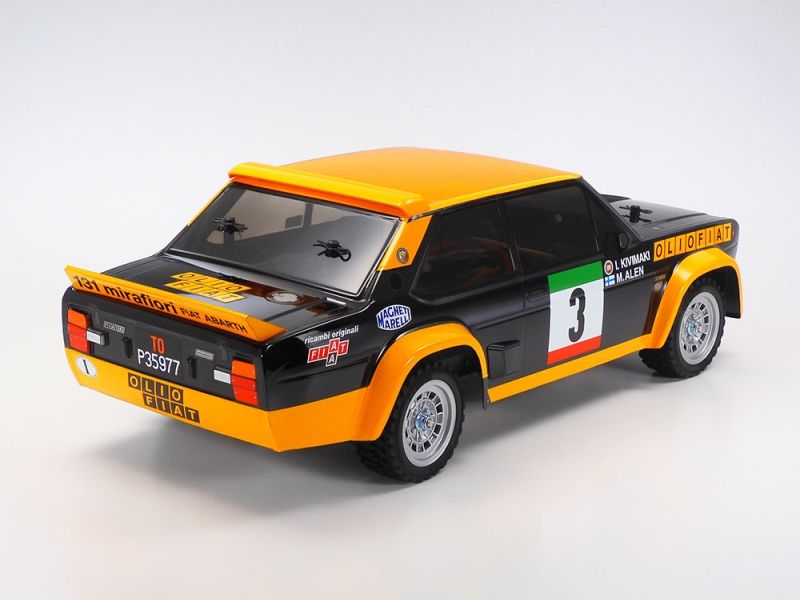

- Authentic Fiat 131 Abarth Rally Olio Fiat polycarbonate body

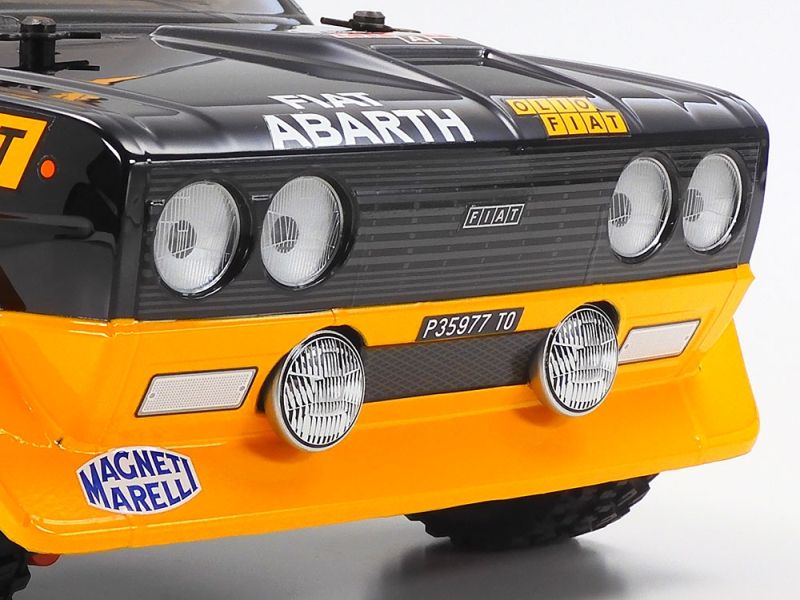

- Separate polycarbonate parts for quadruple headlights and spotlights

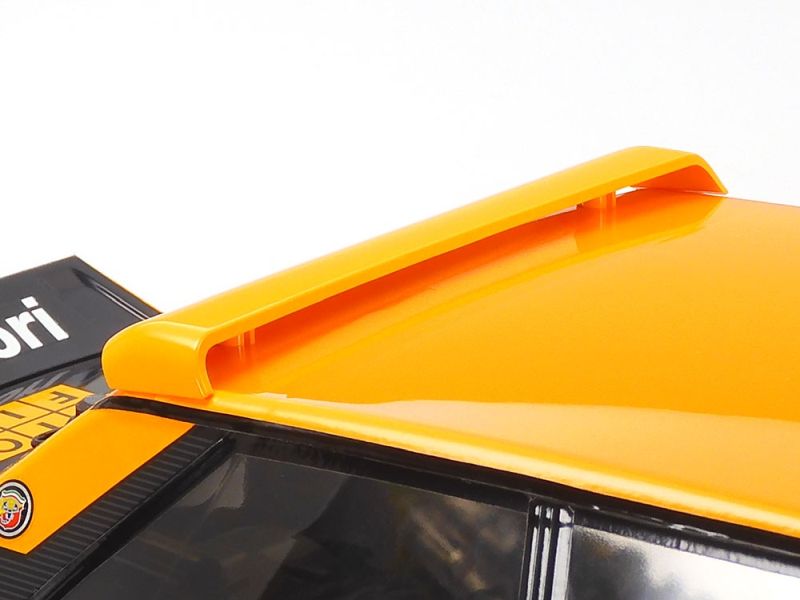

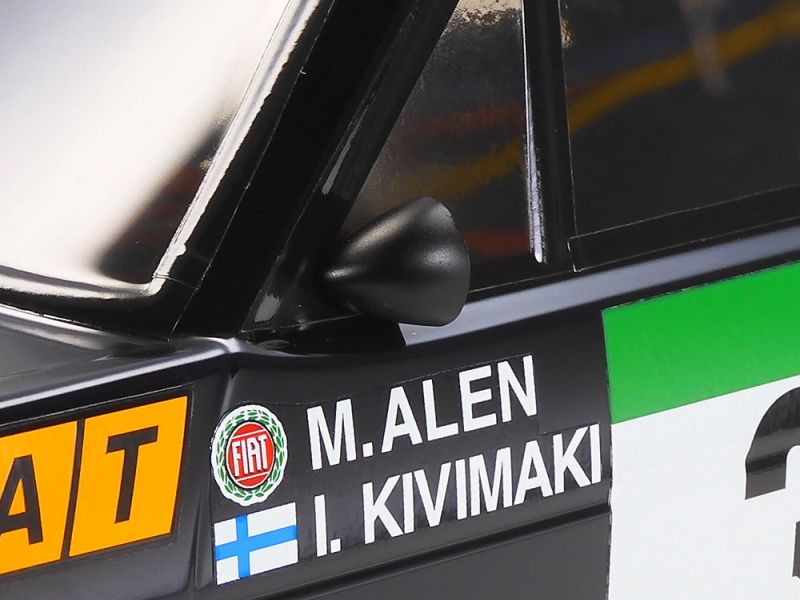

- Separately molded roof spoiler and side mirrors
- MF-01X compact 4WD rally chassis
- Rear-mounted motor with shaft-driven 4WD

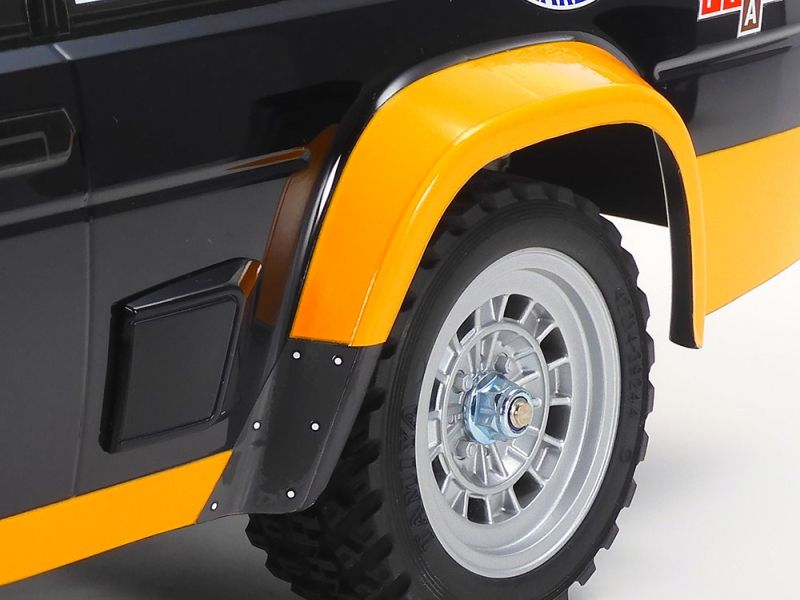

- Rally block tires on dish wheels
- Off-road capable M-05Ra chassis uprights and hub carriers included

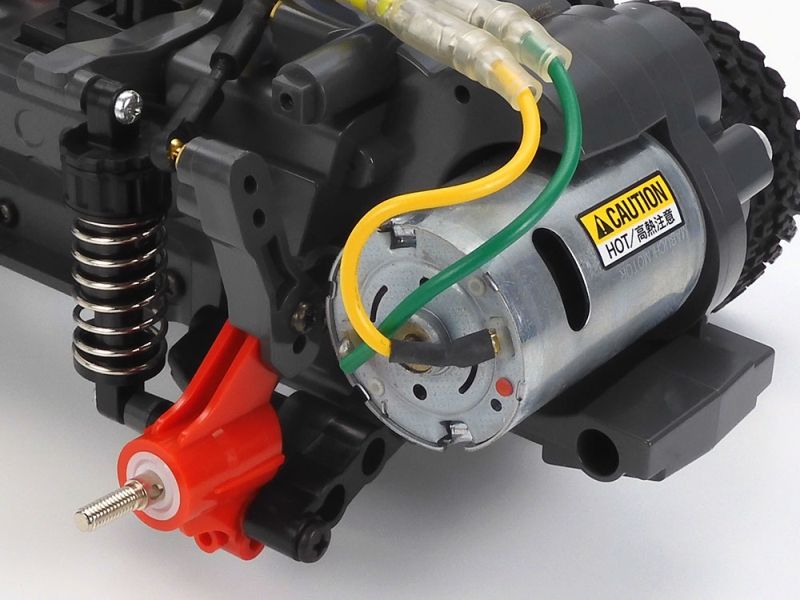

- 540-Type Torque Tuned motor included
- HobbyWing THW 1060 ESC included
- Light cases compatible with 5mm LEDs (sold separately)
Historical Significance
- 1977 WRC Manufacturer's Championship winner
- 1978 WRC Manufacturer's Championship winner
- Three consecutive championship titles
- Developed by legendary tuner Abarth
- Based on Fiat 131 Mirafiori platform

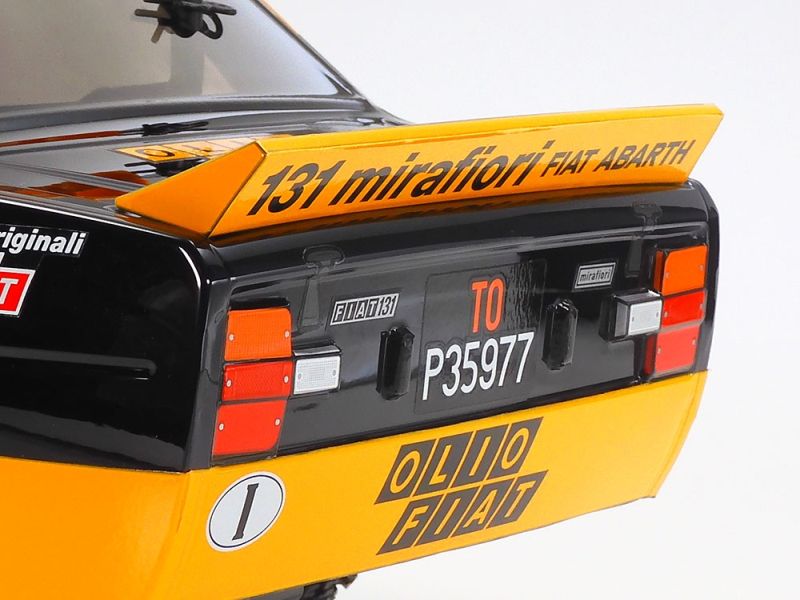

- Iconic Olio Fiat orange and blue livery
Chassis Features
- Tough monocoque frame with integrated gearboxes
- Rear-mounted motor for optimal weight distribution
- Gear-driven rear wheels with propeller shaft to front
- Front and rear 3-bevel differential gears

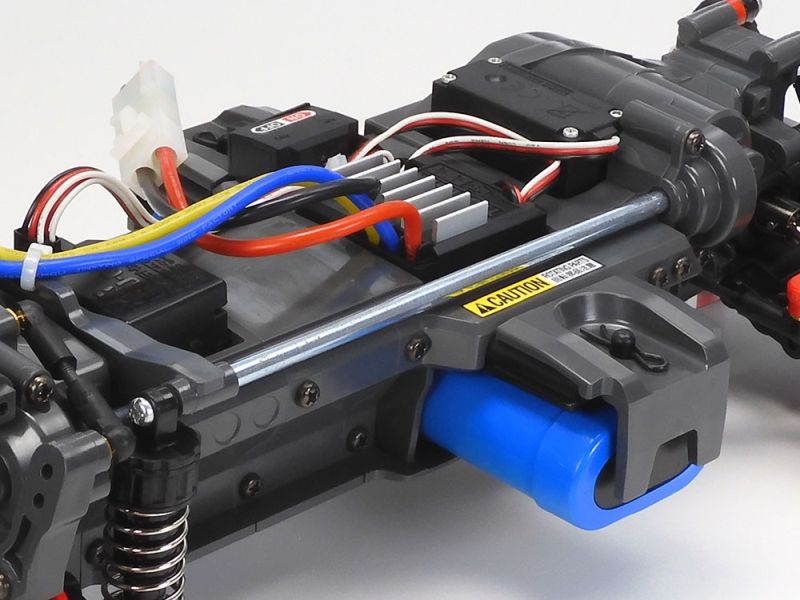

- Center-mounted battery for excellent balance
- 4-wheel independent double wishbone suspension
- Front and rear friction dampers
- 2-piece steering tie-rod system
- 239mm L-size wheelbase
Performance Benefits
- Thrilling drive on both road and flat dirt surfaces
- Excellent balance from center battery placement
- Smooth cornering from front and rear differentials
- Compact 4WD provides sure-footed traction
- Rally block tires handle varied terrain
- Off-road capable suspension components
- Extensive hop-up options available
Usage Notes
The MF-01X chassis excels on paved surfaces and flat dirt, making it perfect for rally-style driving. The off-road capable uprights and hub carriers allow light off-road use on grass and packed dirt. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints. Polycarbonate light cases accept 5mm LEDs for enhanced scale realism.
Technical Specs
-
Scale: 1/10
-
Length: 400mm
-
Width: 180mm
-
Height: 132mm
-
Wheelbase: 239mm (L-size)
-
Tread: 138mm (front and rear)
-
Tire Width/Diameter: 26/60mm
-
Drive: Shaft-driven 4WD
-
Chassis: MF-01X monocoque
-
Body Material: Polycarbonate
-
Motor: 540-Type Torque Tuned Brushed
-
ESC: HobbyWing THW 1060 (2-3S compatible)
-
Suspension: 4-wheel double wishbone
-
Dampers: Friction dampers
-
Differentials: 3-bevel gear type
-
Gear Ratio: 9.5:1
-
Manufacturer: Tamiya
-
Item Number: 58723
What's Included
- Complete unassembled MF-01X chassis kit
- Polycarbonate Fiat 131 Abarth Rally body (clear)
- Separate polycarbonate quadruple headlight cases
- Separate polycarbonate spotlight cases
- Separately molded roof spoiler
- Separately molded side mirrors
- Dish wheels (4)
- Rally block tires (4)
- Olio Fiat livery decal sheet
- 540-Type Torque Tuned brushed motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
- Optional: 5mm LEDs for light cases
Summary
The Tamiya Fiat 131 Abarth Rally Olio Fiat MF-01X brings three-time WRC championship heritage to 1/10 scale RC. Built on the compact, capable MF-01X 4WD platform with included motor and ESC, this kit delivers authentic rally styling and versatile on/off-road performance. With detailed body parts including separate headlights, spotlights, and roof spoiler, plus LED-compatible light cases, this kit is perfect for rally enthusiasts and collectors seeking a classic 1970s icon.
