Overview

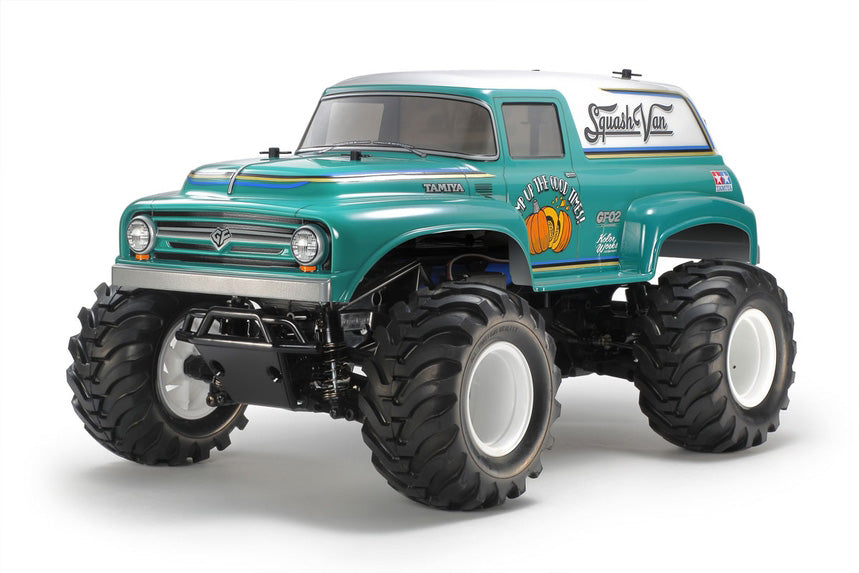

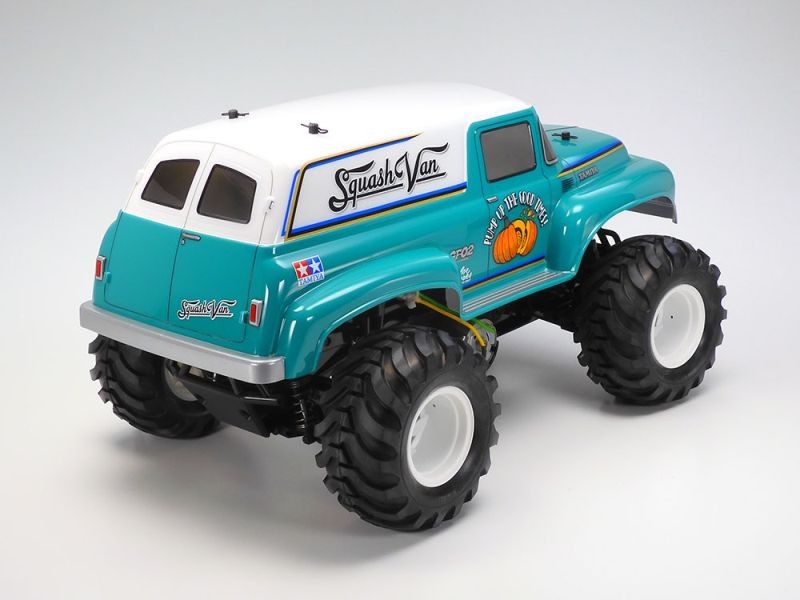

The Tamiya Squash Van is a fun-focused 1/10 scale 4WD monster truck kit inspired by classic 1950s American panel vans. Combining retro styling with oversized tires and modern 4WD performance, the Squash Van delivers a unique driving experience that stands out from traditional RC trucks. Built on Tamiya's innovative GF-02 gear-driven chassis, this kit offers exceptional durability, impressive stability, and plenty of personality for off-road adventures.
Designed for hobbyists who enjoy something different, the Squash Van blends nostalgic Americana looks with capable off-road handling. Its wide stance, long 267mm wheelbase, and massive 123mm diameter tires make it equally at home on dirt, grass, gravel, and pavement. The kit format provides a rewarding build experience while allowing extensive customization and future upgrades, including optional 4-wheel steering capability for enhanced maneuverability.
Key Features
- 1/10 scale 4WD monster truck assembly kit
- Unique 1950s American panel van styling
- Gear-driven 4WD GF-02 monocoque chassis
- Low, centrally mounted motor for optimal stability
- Long wheelbase (267mm) and wide tread (222mm) for confident handling
- Independent double wishbone suspension on all four wheels
- Friction dampers for durable off-road use
- Large-diameter 123mm semi-pneumatic tires
- Front and rear 3-bevel gear differentials
- 4-wheel steering compatible with optional equipment
- Integrated sealed gearboxes keep debris out
- Type 540 motor and ESC included

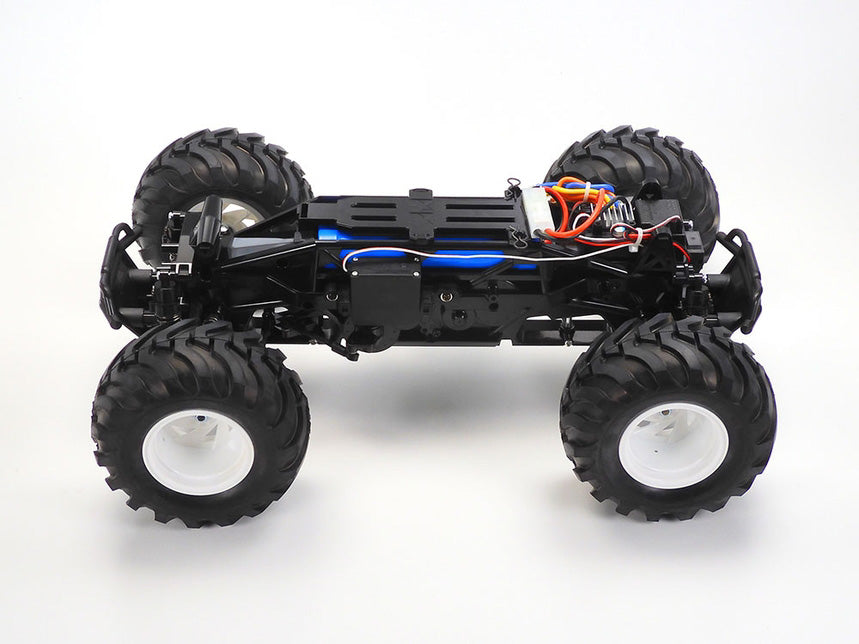

Chassis Features

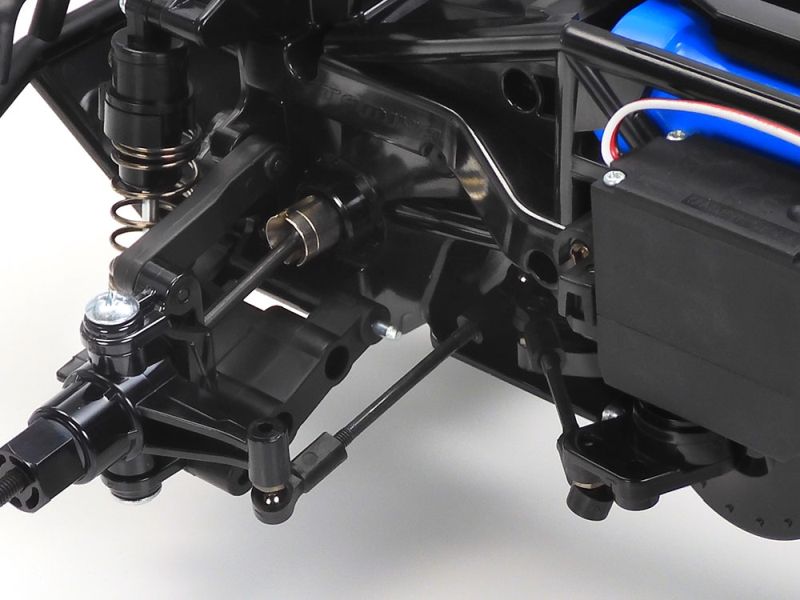

- GF-02 lightweight monocoque frame construction
- Slim ladder/pipe-inspired frame design
- Motor mounted in low, central position for balance

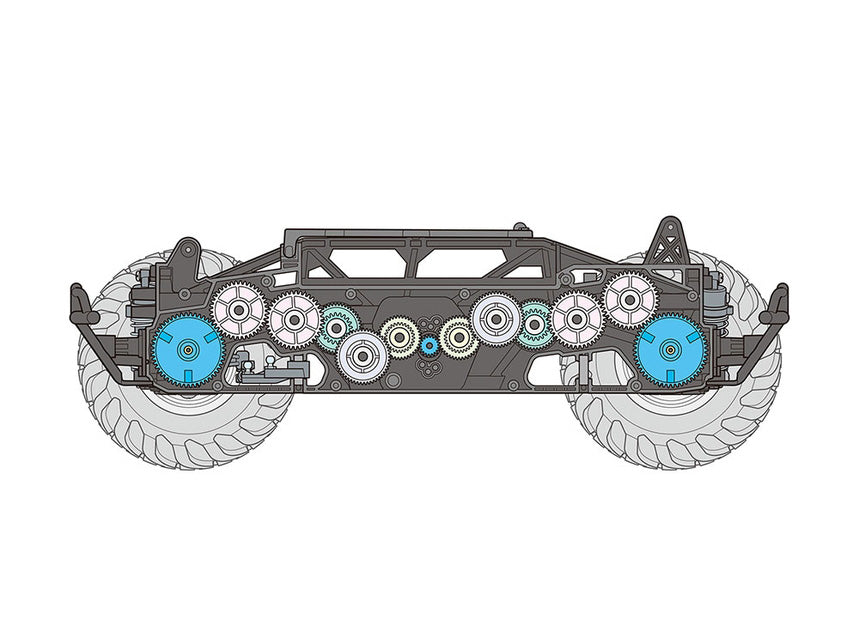

- Gear-driven 4WD power transmission
- Sealed front and rear gearboxes
- Identical-length steering tie-rods for precision
- Servo mounting on left side of chassis
- Second servo hole for 4WS conversion
- Three gear ratio options: 18.03:1, 16.23:1, or 19.09:1
- Motor guard for enhanced off-road reliability
Performance Benefits
- Gear-driven 4WD delivers consistent power to all wheels
- Central motor placement provides excellent balance and stability
- Long wheelbase prevents tipping during aggressive maneuvers
- Wide tread offers confident cornering grip
- Large 123mm tires absorb bumps and obstacles
- Gear differentials allow smooth, controlled cornering
- Double wishbone suspension maintains tire contact over rough terrain
- Semi-pneumatic tires provide cushioning and traction
Usage Notes
- Excellent for backyard bashing, parks, and casual off-road driving
- Works well on dirt, grass, gravel, and paved surfaces
- Polycarbonate body requires Tamiya PS spray paint
- Friction dampers can be upgraded to oil-filled dampers for improved performance
- Bush bearings should be replaced with ball bearings for optimal efficiency
- 4WS conversion available with third-party 4WS function transmitter
- Body post positions compatible with long wheelbase CC-02 chassis
- 18-tooth pinion gear included; optional 17T or 20T available for ratio adjustment
Fitment
Compatible RC vehicles: All 1/10 scale RC vehicles.
Technical Specs
| Specification |
Detail |
| Scale |
1/10 |
| Length |
454mm (17.9") |
| Width |
280mm (11.0") |
| Height |
238mm (9.4") |
| Wheelbase |
267mm (10.5") |
| Tread (Front/Rear) |
222mm / 222mm |
| Tire Width/Diameter |
60mm / 123mm |
| Drive System |
4WD (Gear-Driven) |
| Chassis |
GF-02 Monocoque |
| Suspension |
4-Wheel Independent Double Wishbone |
| Dampers |
Friction Type |
| Differentials |
3-Bevel Gear (Front & Rear) |
| Motor |
Type 540 Brushed (Included) |
| ESC |
Included |
| Gear Ratio |
18.03:1 (with 18T pinion) |
What's Included
- Tamiya Squash Van complete 4WD monster truck kit
- GF-02 monocoque chassis components

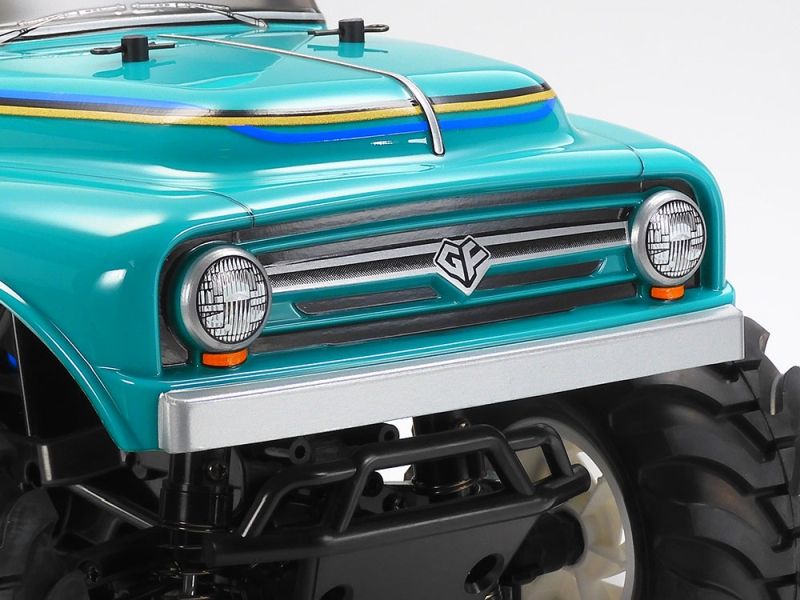

- Polycarbonate body with retro panel van styling

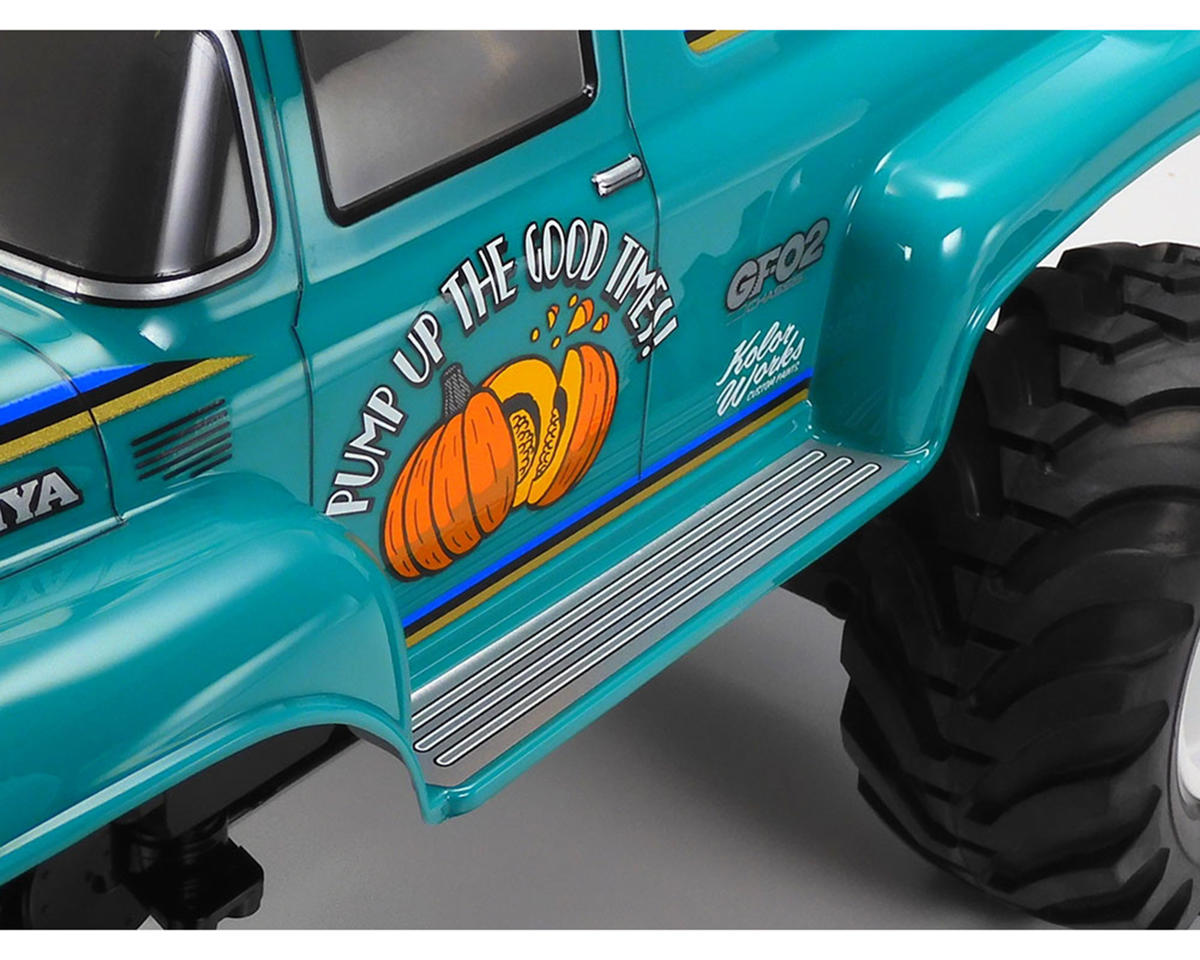

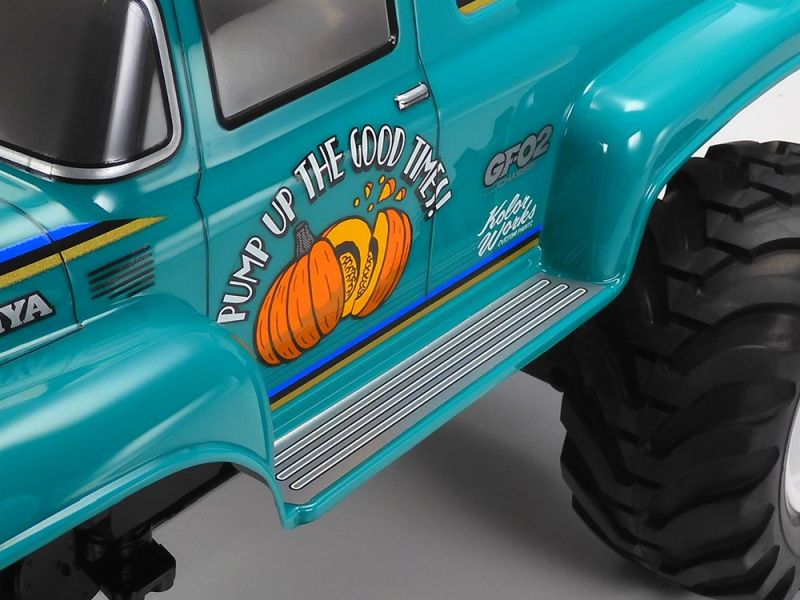

- Decal sheet with squash illustrations, logos, and pin stripes
- Type 540 brushed motor
- Electronic speed controller (ESC)

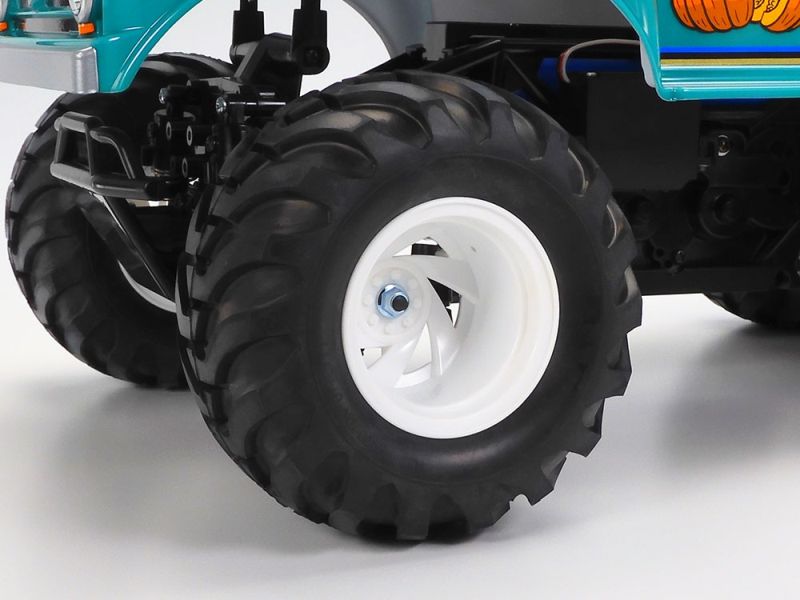

- Deep rim one-piece wheels (white)
- 123mm diameter semi-pneumatic tires
- Friction dampers
- 18-tooth pinion gear
- Assembly hardware and instruction manual
Needed to Complete
- 2-channel radio system with receiver
- Steering servo
- 7.2-7.4V battery pack
- Compatible battery charger
- Tamiya PS polycarbonate spray paint
- AA batteries for transmitter
Summary
The Tamiya Squash Van combines nostalgic 1950s American panel van styling with the capable GF-02 gear-driven 4WD chassis for a unique RC experience unlike anything else in the hobby. Its long wheelbase, wide tread, and massive 123mm tires deliver exceptional stability and off-road capability, while the central motor placement ensures balanced handling. Whether you're bashing through the backyard, cruising through parks, or simply enjoying the retro aesthetic, the Squash Van delivers smiles at every turn. The optional 4WS conversion capability adds even more versatility for enthusiasts seeking tighter turning and enhanced maneuverability.
