Description
Overview

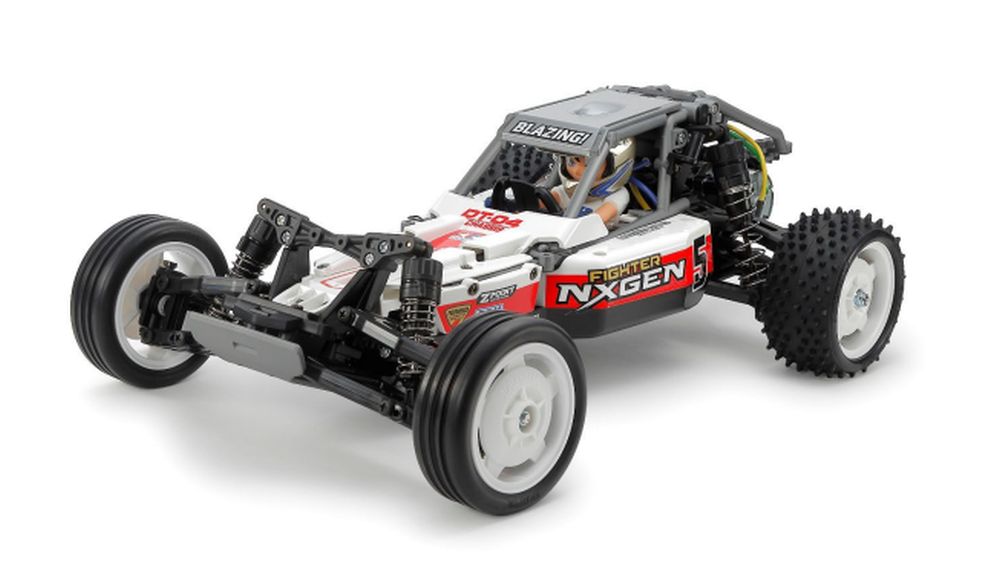

The Tamiya Fighter NXGEN represents the next generation of Tamiya's legendary Fighter Buggy series, now built on the all-new DT-04 chassis platform. The Fighter series has enjoyed tremendous worldwide popularity since it was developed for the German beginner buggy races that started in 1996. Through iterations like the Fighter Buggy RX (DT-01), Super Fighter G (DT-02), and Neo Fighter Buggy (DT-03), the series has continuously evolved, and the Fighter NXGEN takes this legacy to new heights with enhanced off-road capabilities and expanded setup options.
Inspired by full-size single-seater desert racing buggies popular in the United States, the Fighter NXGEN features a distinctive modular body design with separate injection-molded white polycarbonate panels that screw-fix to the chassis frame. This unique construction eliminates the need for painting—simply apply the included decals and hit the dirt! A driver figure is included to complete the authentic buggy racing appearance, making this kit perfect for both newcomers to the hobby and experienced builders looking for a fun, capable off-road platform.
Key Features
- All-new DT-04 chassis platform with enhanced off-road performance
- Modular body design with 7 pre-molded white polycarbonate panels
- No painting required—just apply decals for instant racing look
- Included driver figure for authentic single-seater buggy appearance
- Choice of red or blue color scheme decals
- CVA oil-filled dampers for superior shock absorption
- Front ribbed tires and rear square spike tires for optimal traction
- Dish design front wheels and star dish rear wheels
- Includes 540-Type brushed motor
- Hobbywing THW 1060 ESC included
Chassis Features
- Brand new DT-04 rear-wheel drive chassis platform
- Inline battery pack position for improved balance
- Rear-mounted motor for enhanced rear wheel traction
- Sealed gearbox with built-in 3-bevel gear differential
- Two selectable wheelbases: 265mm (handling) or 280mm (stability)
- 4-wheel independent double wishbone suspension with long arms
- CVA oil dampers front and rear
- 22.5-degree front skid angle for obstacle clearance
- 3-piece steering tie-rod for true, precise steering (first in Fighter series)
- Monocoque frame design for rigidity
- Compatible with DT-02 and DT-03 option parts
Design Heritage
- Inspired by full-size American single-seater desert racing buggies
- Continues the Fighter series tradition since 1996
- NXGEN = "Next Generation" with improved capabilities
- First Fighter series to use 3-piece steering tie-rod
- Roll cage design protects electronics during rollovers
Performance Benefits
- Rear-wheel drive delivers lively, exciting handling characteristics
- CVA oil dampers absorb big shocks for smooth off-road driving
- Long suspension arms handle rough terrain and jumps
- Sealed gearbox keeps dust and dirt out of drivetrain
- Two wheelbase options allow tuning for different conditions
- Square spike rear tires provide excellent grip on loose surfaces
- Compatible with extensive DT-series hop-up parts catalog
Usage Notes
- Ideal for dirt tracks, grass, gravel, and off-road surfaces
- Body panels pre-molded in white—no painting required
- Driver figure can be hand-painted for personalization (eye decals included)
- Access battery by lifting roll cage and removing driver figure
- Recommend ball bearings upgrade for improved performance
- Short wheelbase (265mm) for tighter handling, long (280mm) for stability
Technical Specs
| Specification | Value |
|---|---|
| Scale | 1/10 |
| Length | 395mm (265mm wheelbase) |
| Width | 245mm |
| Height | 125mm |
| Wheelbase | 265mm / 280mm (selectable) |
| Tread (Front/Rear) | 217mm / 204mm |
| Tire Width/Diameter (Front) | 27mm / 80mm |
| Tire Width/Diameter (Rear) | 41mm / 86mm |
| Chassis | DT-04 |
| Drivetrain | 2WD Rear-Wheel Drive |
| Differential | 3-bevel gear (sealed gearbox) |
| Suspension | 4-wheel double wishbone |
| Dampers | CVA oil dampers (front/rear) |
| Gear Ratio | 9.28:1 |
| Motor | 540-Type |
| ESC | Hobbywing THW 1060 |
| Frame Type | Monocoque/Bathtub |
What's Included
- DT-04 chassis kit with all hardware
- 7 pre-molded white polycarbonate body panels
- Driver figure
- Front dish wheels (2)
- Rear star dish wheels (2)
- Front ribbed tires (2)
- Rear square spike tires (2)
- CVA oil dampers (4)
- 540-Type brushed motor
- Hobbywing THW 1060 electronic speed controller
- Red and blue color scheme decal sheets
- Eye decals for driver figure
- Assembly instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo (standard size)
- 7.2V-7.4V battery pack (NiMH or LiPo)
- Battery charger compatible with your battery type
- AA batteries for transmitter
- Basic hobby tools for assembly
- Optional: paints for driver figure customization
Summary
The Tamiya Fighter NXGEN on the DT-04 chassis is the ultimate evolution of the beloved Fighter Buggy series. Perfect for beginners and experienced hobbyists alike, this kit offers the ease of pre-molded body panels (no painting required!), the excitement of rear-wheel drive handling, and the versatility of two selectable wheelbases. The all-new DT-04 platform combines the best elements of previous DT-series chassis with modern improvements like CVA oil dampers and a 3-piece steering tie-rod. With its authentic single-seater buggy styling, included electronics, and compatibility with extensive hop-up options, the Fighter NXGEN delivers outstanding value and endless off-road fun.
