Description
Overview

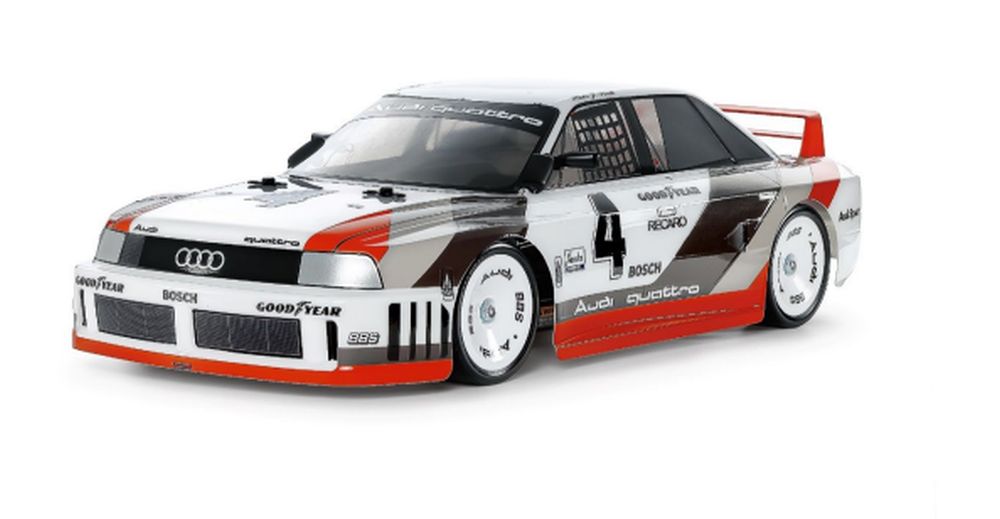

The Tamiya Audi 90 Quattro Racing recreates one of the most dominant and technologically advanced touring cars of the late 1980s American racing scene. The full-size Audi 90 quattro Racing flourished at American races in 1989, particularly in the IMSA GTO series where it dominated against larger-displacement V8 rivals. Powered by a 2.2-liter inline-5 turbocharged engine producing over 700 horsepower, combined with Audi's legendary Quattro all-wheel-drive system, this car showcased engineering superiority that would influence motorsport for decades to come.
This R/C model assembly kit faithfully captures the aggressive wide-body design of the racing legend, featuring a polycarbonate body that's significantly wider than the road car. The muscular form includes flared fenders, lightweight carbon and aluminum panel details, and the distinctive two-level rear wing that made this car instantly recognizable. Built on the reliable TT-02 chassis with dedicated +4mm offset white dish wheels, this model delivers authentic scale proportions while providing excellent handling characteristics.
Key Features
- Authentic 1/10 scale recreation of the 1989 IMSA GTO championship Audi
- Wide-body polycarbonate body capturing the car's muscular racing stance
- Separately molded A-pillar air ducts for enhanced realism
- Injection-molded side mirrors mounted on A-pillars
- Two-level rear wing molded in red ABS plastic
- Dedicated white flat dish wheels with +4mm offset for wide body fitment
- Stickers for mesh details, sponsor logos, and red/silver/black livery
- Window net sticker detail included
- Includes 540-Type Torque Tuned brushed motor
- Hobbywing ESC included for reliable performance
Historical Significance
- Dominated the 1989 IMSA GTO series with multiple victories
- First successful implementation of AWD in American touring car racing
- Over 700 horsepower from turbocharged 5-cylinder engine
- Showcased Audi Sport's engineering excellence against V8 competition
- Iconic Audi Sport livery became instantly recognizable in motorsport
- Pioneered technologies that would influence future racing regulations
Chassis Features
- Proven TT-02 shaft-driven 4WD chassis platform
- Longitudinal layout for excellent weight distribution
- Battery positioned on left, motor on right for balance
- Identical left/right suspension arms for simplified assembly
- Easy-to-maintain front and rear gearboxes
- 4-wheel double wishbone independent suspension
- Friction dampers front and rear
- Front/rear 4-bevel plastic differentials
- 3-piece steering tie-rod with resin ball links
- Brake disc-shaped wheel hubs
- Motor cover with removable cooling duct
Performance Benefits
- Shaft-driven 4WD provides superior traction like the full-size Quattro
- Balanced chassis design ensures predictable handling
- Wide dish wheels with proper offset for scale-accurate stance
- Slick tires deliver maximum grip on paved surfaces
- 10 possible gear ratios for track optimization (8.27:1 standard)
- Extensive TT-02 hop-up catalog for competition upgrades
Usage Notes
- Optimized for paved surfaces and on-road tracks
- Body requires painting with Tamiya PS polycarbonate paints
- Window masking tape included for clean paint lines
- Recommend upgrading to ball bearings for smoother operation
- CVA oil dampers available as hop-up for improved handling
- Compatible with 7.2V NiMH or 7.4V LiPo batteries
Technical Specs
| Specification | Value |
|---|---|
| Scale | 1/10 |
| Length | 446mm |
| Width | 192mm |
| Height | 127mm |
| Wheelbase | 251mm |
| Tire Width/Diameter | 26mm / 66mm |
| Chassis | TT-02 |
| Drivetrain | 4WD Shaft-Driven |
| Differential | Front/Rear 4-bevel plastic |
| Suspension | 4-wheel double wishbone |
| Dampers | Friction dampers (front/rear) |
| Gear Ratio | 8.27:1 (9 additional ratios available) |
| Motor | 540-Type Torque Tuned |
| ESC | Hobbywing THW 1060 |
| Frame Type | Bathtub |
| Wheel Offset | +4mm (dedicated design) |
What's Included
- TT-02 chassis kit with all hardware
- Polycarbonate Audi 90 quattro Racing body shell
- Red ABS plastic two-level rear wing
- ABS plastic A-pillar air ducts
- ABS plastic side mirrors
- Dedicated white flat dish wheels with +4mm offset (4)
- Semi-pneumatic slick tires (4)
- 540-Type Torque Tuned brushed motor
- Hobbywing electronic speed controller (ESC)
- Urethane front bumper (Item 51226)
- Detailed sticker sheet with sponsor logos
- Window masking tape
- Assembly instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo (standard size)
- 7.2V-7.4V battery pack (NiMH or LiPo)
- Battery charger compatible with your battery type
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic hobby tools for assembly
Summary
The Tamiya Audi 90 Quattro Racing on the TT-02 chassis is a celebration of one of motorsport's most revolutionary race cars. This kit captures the dominant 1989 IMSA GTO championship car that proved the superiority of all-wheel-drive racing technology against traditional American V8 competitors. With its wide-body polycarbonate shell, dedicated offset wheels for proper stance, and authentic Audi Sport styling details, this model is a must-have for fans of German engineering and touring car racing history. The included motor, ESC, and versatile TT-02 platform make it an excellent choice for both collectors and competitive RC enthusiasts.
