Description
Overview

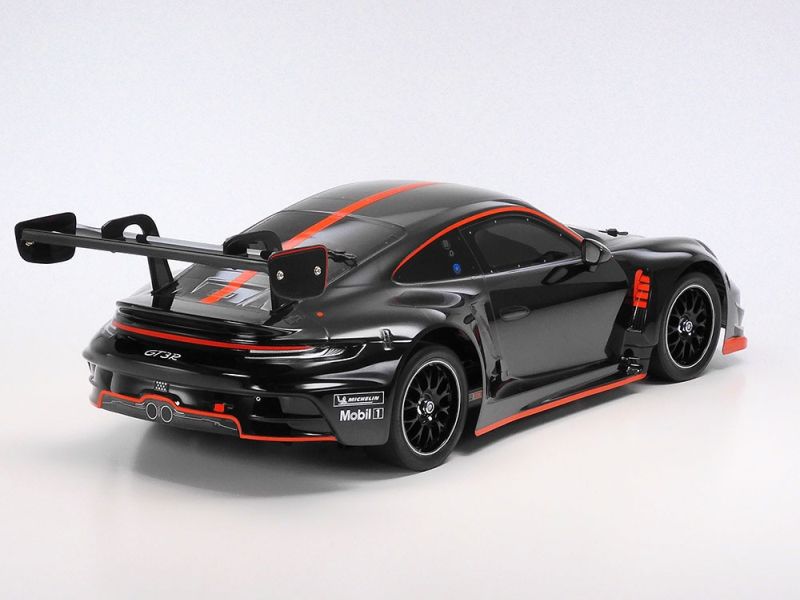

The Tamiya Porsche 911 GT3 R (992) brings the ultimate GT3-class racing Porsche to your RC collection in stunning 1/10 scale detail. The full-size Porsche 911 GT3 R (992), announced in July 2022, represents the pinnacle of customer racing Porsches, developed to conform to GT3 race regulations for competition in prestigious series including the Fanatec GT World Challenge Powered by AWS and SRO Motorsports Group events across Europe, North America, Asia, and Australia. With its water-cooled six-cylinder naturally aspirated boxer engine producing up to 416 kW (565 hp), this race car was built with one purpose: to win.
This R/C model assembly kit captures the mesmerizing form of the modern race-spec 911 with a highly detailed polycarbonate body. The harmonious shape emphasizes Porsche's heritage while incorporating sophisticated aerodynamic efficiency. Separate polycarbonate light cases, injection-molded side mirrors, and a distinctive rear wing with optional gurney flap allow for incredible authenticity. Built on Tamiya's versatile TT-02 chassis, this model offers the perfect combination of scale realism and excellent driving characteristics.
Key Features
- Authentic 1/10 scale recreation of the Porsche 911 GT3 R (992) GT racing car
- Stunning polycarbonate body capturing the 992-generation 911's iconic lines

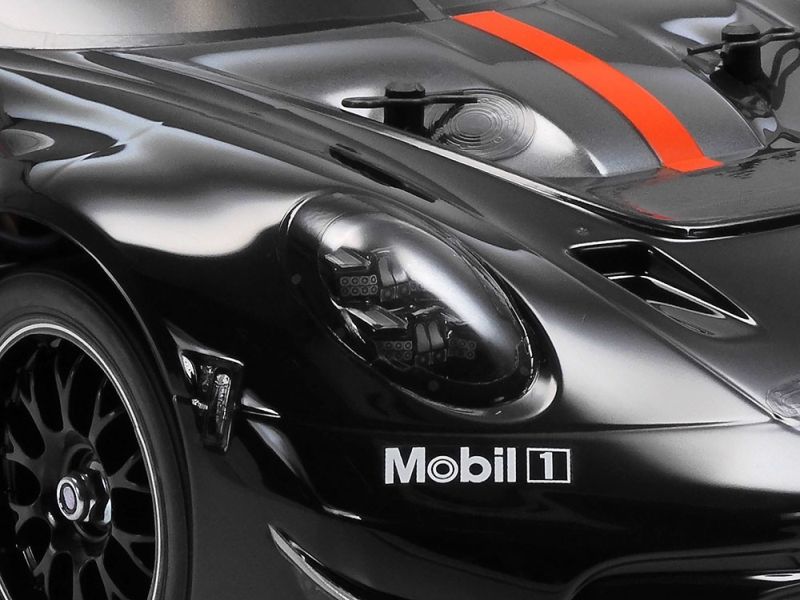

- Separate polycarbonate headlight cases for realistic detail

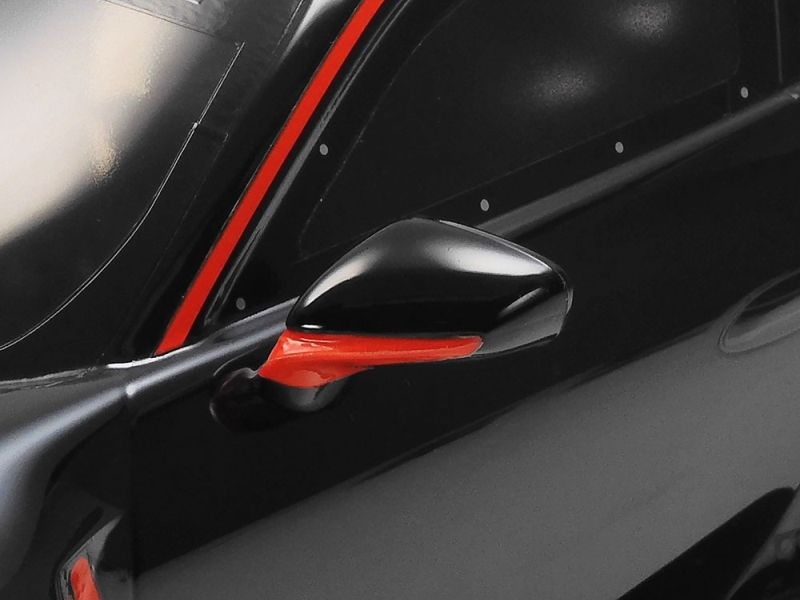

- Injection-molded side mirrors with red accent stickers
- Polycarbonate rear wing with optional gurney flap for tuning
- Black mesh-design wheels paired with semi-pneumatic slick tires
- Stickers for rear lights, exhausts, air outlets, and sponsor details
- Includes 540-Type Torque Tuned brushed motor
- Hobbywing ESC included for reliable power management
- Urethane bumper included (Item 51226) for body protection
Chassis Features
- Proven TT-02 shaft-driven 4WD chassis platform
- Longitudinal layout with battery on left, motor on right for optimal balance
- Identical left and right suspension arms for easy assembly
- Easy-to-maintain front and rear gearboxes
- 4-wheel double wishbone independent suspension
- Friction dampers front and rear
- Front and rear 4-bevel plastic differentials
- 3-piece steering tie-rod with resin ball links for smooth steering
- Brake disc-shaped wheel hubs for scale appearance
- Motor cover with removable cooling duct
- Bathtub-type frame for durability
Chassis Adjustability
- 2 different wheelbase options (251mm for this model)
- 2 ground clearance settings
- 2 tread setup options
- 10 possible gear ratios (8.27:1 to 7.28:1 with optional pinions)
Performance Benefits
- Shaft-driven 4WD provides excellent traction and stability
- Balanced weight distribution for predictable cornering
- Slick tires offer maximum grip on paved surfaces
- Wide range of gear ratio adjustments for different track conditions
- Extensive TT-02 hop-up parts catalog for racing upgrades
- Lightweight polycarbonate body minimizes unsprung weight
Usage Notes
- Best suited for paved surfaces, parking lots, and on-road tracks
- Body requires painting with Tamiya PS polycarbonate spray paints
- Window masking tape included for professional paint finish
- Recommended to upgrade to ball bearings for improved performance
- CVA oil dampers available as hop-up for enhanced handling
- Compatible with LiPo batteries (7.4V) for increased performance
Technical Specs
| Specification | Value |
|---|---|
| Scale | 1/10 |
| Length | 479mm |
| Width | 188mm |
| Height | 127mm |
| Wheelbase | 251mm |
| Tread (Front/Rear) | Standard TT-02 |
| Tire Width/Diameter | 26mm / 66mm |
| Chassis | TT-02 |
| Drivetrain | 4WD Shaft-Driven |
| Differential | Front/Rear 4-bevel plastic |
| Suspension | 4-wheel double wishbone |
| Dampers | Friction dampers (front/rear) |
| Gear Ratio | 8.27:1 (9 additional ratios available) |
| Motor | 540-Type Torque Tuned |
| ESC | Hobbywing THW 1060 |
| Frame Type | Bathtub |
What's Included
- TT-02 chassis kit with all hardware
- Polycarbonate Porsche 911 GT3 R (992) body shell
- Polycarbonate rear wing with gurney flap option
- Polycarbonate headlight cases
- Injection-molded side mirrors and wing stays
- Black mesh-design wheels (4)
- Semi-pneumatic slick tires (4)
- 540-Type Torque Tuned brushed motor
- Hobbywing electronic speed controller (ESC)
- Urethane front bumper (Item 51226)
- Detailed sticker sheet
- Window masking tape
- Assembly instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo (standard size)
- 7.2V-7.4V battery pack (NiMH or LiPo)
- Battery charger compatible with your battery type
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic hobby tools for assembly
Summary
The Tamiya Porsche 911 GT3 R (992) on the TT-02 chassis delivers an exceptional combination of stunning GT3 racing aesthetics and reliable 4WD performance. This kit faithfully recreates one of the most successful customer racing Porsches ever built, complete with authentic details like the distinctive rear wing, aggressive body lines, and race-inspired livery options. With the included Torque Tuned motor, Hobbywing ESC, and the highly adaptable TT-02 chassis platform, this model is perfect for collectors who appreciate Porsche motorsport heritage and racers seeking a competitive on-road platform with extensive upgrade potential.
