Description
Overview

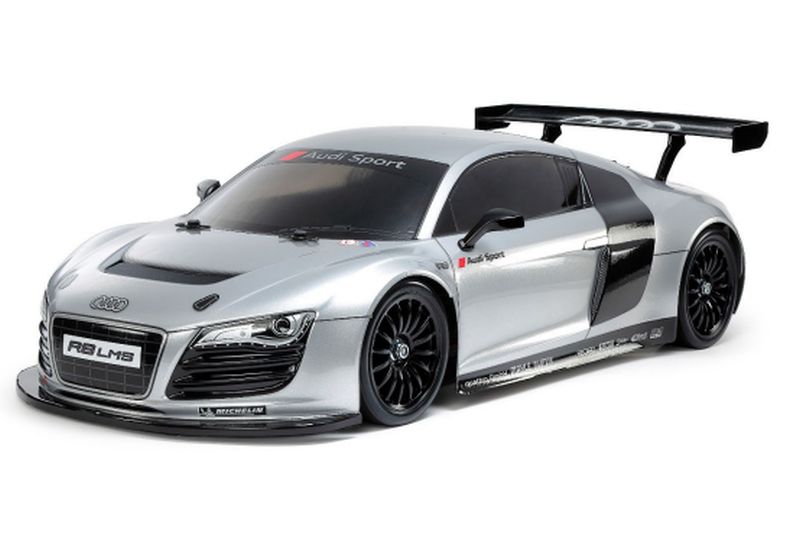

The Tamiya Audi R8 LMS 2008 RC assembly kit brings one of GT3 racing's most successful machines to 1/10 scale reality. Based upon the Audi R8 sportscar and conforming to GT3 regulations, the R8 LMS was announced in 2008 and quickly became a dominant force in customer racing worldwide. The full-size car mounted a 5.2-liter V10 midship engine capable of over 500hp in a lightweight aluminum space frame, with the drivetrain converted from the road car's 4WD to a rear-wheel drive racing configuration.
Built on Tamiya's versatile TT-02 shaft-driven 4WD chassis configured with wide rear tread, this kit delivers authentic GT3 styling with proven RC performance. The stunning polycarbonate body captures the R8 LMS's powerful form, with separate parts for the distinctive rear wing and side mirrors. Black 16-spoke fin design wheels paired with semi-pneumatic slick tires complete the racing appearance. From 2009 onward, this car achieved numerous racing successes around the world—now you can experience that winning heritage.
Key Features
- 1/10 scale R/C model assembly kit with 434mm length, 194mm width, 120mm height
- Authentic Audi R8 LMS 2008 polycarbonate body
- 1.0mm thick durable polycarbonate construction
- Separately molded rear wing
- Separately molded side mirrors with mirror stickers
- TT-02 shaft-driven 4WD chassis with wide rear tread
- Black 16-spoke fin design wheels
- Semi-pneumatic slick tires
- 540-Type Torque Tuned motor included
- HobbyWing THW 1060 ESC included
- Window masking tape included
Racing Heritage
- R8 LMS announced 2008
- Based on Audi R8 road car
- GT3-specification racing machine
- 5.2L V10 producing 500+ hp
- Aluminum space frame construction
- Multiple championship victories worldwide
Chassis Features
- Shaft-driven 4WD with longitudinal layout
- Battery on left, motor on right for balance
- Wide rear tread configuration
- Identical left/right suspension arms for easy assembly
- Easy-to-maintain gearboxes
- 257mm wheelbase
- Front and rear 4-bevel plastic differentials
- 3-piece steering tie-rod with resin ball links
- Brake disc-shaped wheel hubs
- Motor cover with removable cooling duct
Performance Benefits
- Excellent stability from balanced 4WD layout
- 4-wheel double wishbone suspension
- Friction dampers for predictable handling
- Smooth steering from resin ball link joints
- 10 gear ratio options available
- Extensive hop-up parts compatibility
- Wide rear tread for enhanced cornering grip
Usage Notes
Designed for on-road driving on smooth paved surfaces. The slick tires provide excellent grip on tarmac and are ideal for parking lot runs and RC tracks. The low body profile creates an authentic GT3 appearance at speed. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints.
Technical Specs
- Scale: 1/10
- Length: 434mm
- Width: 194mm
- Height: 120mm
- Wheelbase: 257mm
- Tire Width/Diameter: 27/67mm
- Drive: Shaft-driven 4WD
- Chassis: TT-02 (wide rear tread)
- Body Material: 1.0mm Polycarbonate
- Motor: 540-Type Torque Tuned Brushed
- ESC: HobbyWing THW 1060 (2-3S compatible)
- Suspension: 4-wheel double wishbone
- Dampers: Friction dampers
- Differentials: 4-bevel plastic type
- Gear Ratio: 8.27:1 (9 additional ratios available)
- Manufacturer: Tamiya
- Item Number: 58749
What's Included
- Complete unassembled TT-02 chassis kit
- 1.0mm polycarbonate Audi R8 LMS 2008 body (clear)
- Separately molded rear wing
- Separately molded side mirrors
- Black 16-spoke fin design wheels (4)
- Semi-pneumatic slick tires (4)
- Decal sheet with Audi emblems and details
- Window masking tape
- 540-Type Torque Tuned brushed motor
- HobbyWing THW 1060 electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
Summary
The Tamiya Audi R8 LMS 2008 TT-02 brings championship-winning GT3 heritage to 1/10 scale RC. With its stunning polycarbonate body, distinctive 16-spoke wheels, included motor and ESC, and the versatile TT-02 4WD platform, this kit delivers authentic Audi motorsport styling and enjoyable on-road performance. Perfect for GT racing enthusiasts, Audi fans, and builders seeking a beginner-friendly kit with professional racing pedigree.
