Overview
The Tamiya Mercedes-AMG GT3 EVO brings one of the world's most successful Customer Racing cars to the RC world. The full-scale GT3 was developed in 2020 as an evolution of the already formidable Mercedes-AMG GT3, featuring improved aerodynamics, an automatic data logging system for racing analysis, and a drop-start function from air jacks. Powered by an AMG 6.3-liter naturally aspirated V8 engine producing 550hp and 650Nm of torque, this racing machine has become a dominant force in GT3 championships worldwide.

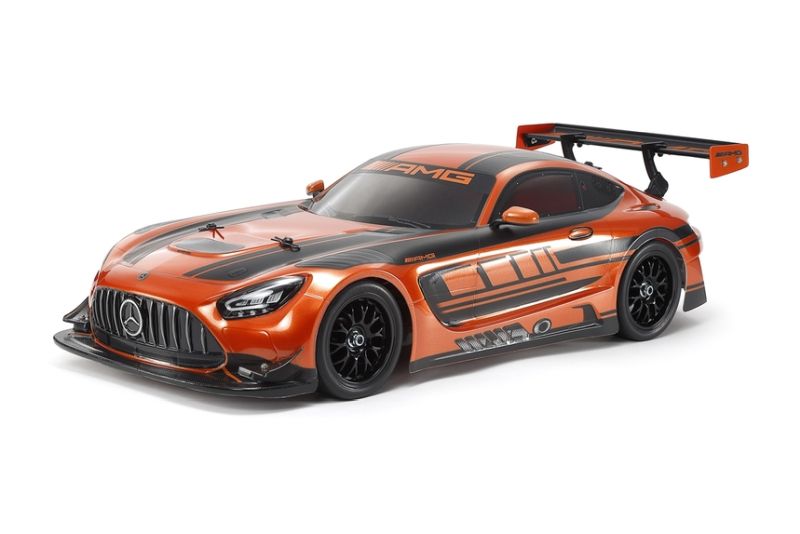

This 1/10 scale RC assembly kit faithfully captures the aggressive GT3 racing aesthetics with a detailed polycarbonate body featuring the distinctive long-nose, short-deck proportions. The kit includes separate polycarbonate components for the front light cases, rear wing, and canards, along with ABS plastic side mirrors and wing stays for authentic detail. Mounted on Tamiya's versatile TT-02 chassis in the 251mm short wheelbase configuration, this model delivers excellent balance and performance on any smooth surface.
Key Features
- Detailed polycarbonate body capturing the Mercedes-AMG GT3 EVO racing design

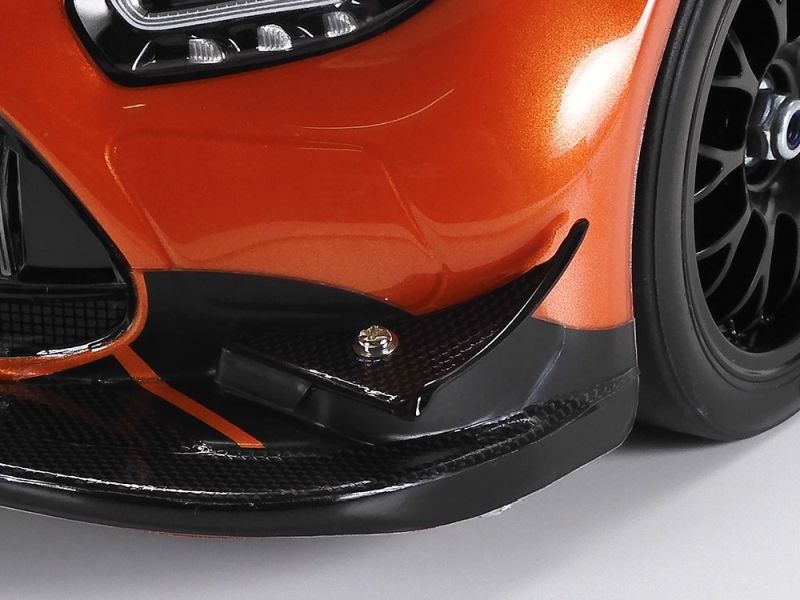

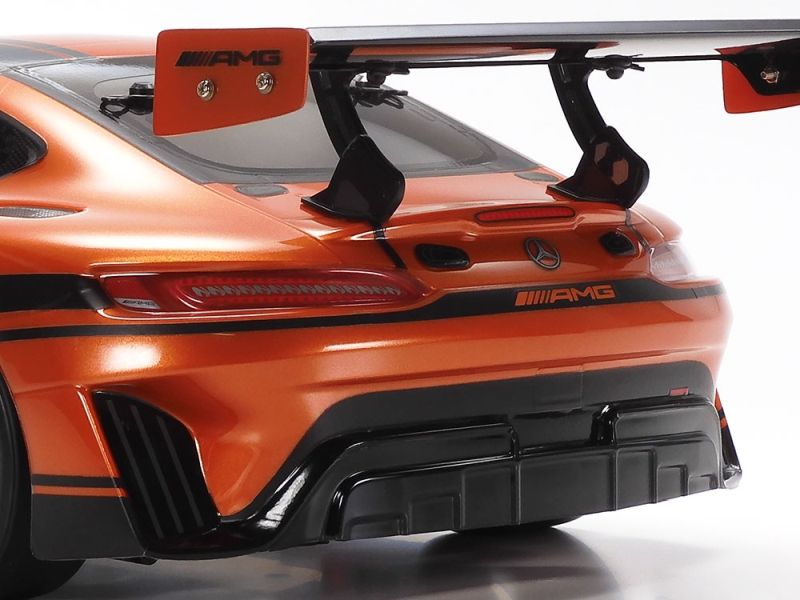

- Separate polycarbonate front light cases, rear wing, and canards

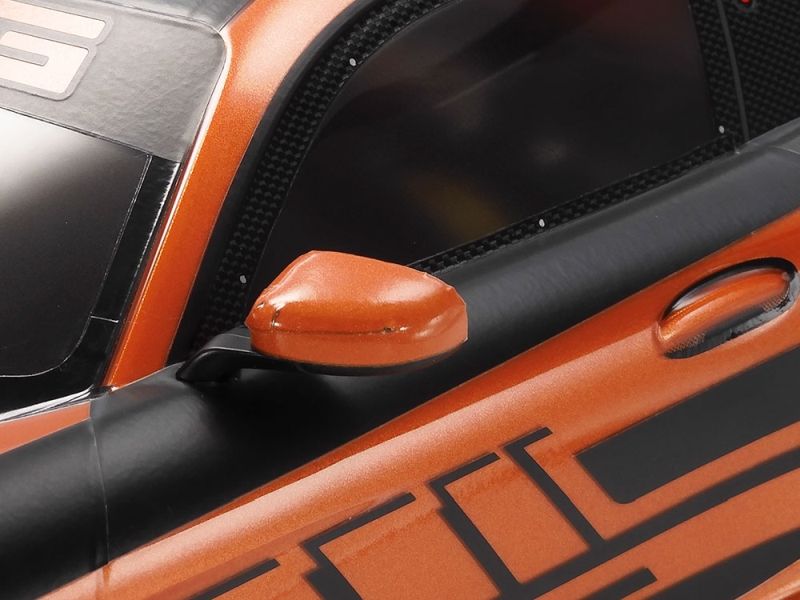

- ABS plastic side mirrors and rear wing stays for realistic appearance
- Black mesh-design wheels with semi-pneumatic racing slick tires
- Includes Item 53415 Touring Car Urethane Bumper Sponge for body protection
- Comprehensive sticker sheet with window masking tape included
- 540 brushed motor and HobbyWing THW 1060 ESC included
Chassis Features
- TT-02 shaft-driven 4WD chassis with longitudinal battery/motor layout
- Short wheelbase (251mm) configuration optimized for GT racing bodies
- Bathtub-type frame for durability and easy maintenance
- 4-wheel double wishbone fully independent suspension
- Front and rear 4-bevel plastic differentials
- 3-piece steering tie-rod for precise handling response
- Friction dampers front and rear
- Brake disc-shaped wheel hubs for authentic appearance
- 10 possible gear ratios (8.27:1 standard, 7.28:1 to 11.38:1 with optional pinions)
Performance Benefits
- Longitudinal drivetrain layout provides excellent weight distribution and stability
- Shaft-driven 4WD delivers consistent power to all four wheels
- Short wheelbase enhances agility and cornering response
- Racing slick tires provide maximum grip on smooth surfaces
- Highly adaptable chassis with 2 wheelbase, 2 ground clearance, and 2 tread settings
- Identical left/right suspension components simplify assembly and parts inventory
Usage Notes
- Designed for on-road use on smooth pavement, parking lots, or indoor tracks
- Polycarbonate body requires painting with Tamiya PS polycarbonate paints
- LED lights are not attachable to the light cases
- Upgrade to ball bearings and oil-filled dampers for enhanced performance
- Multiple gear ratio options allow tuning for different track conditions
Technical Specs
- Scale: 1/10
- Length: 454mm
- Width: 189mm
- Height: 120mm
- Wheelbase: 251mm (short spec)
- Tire Width/Diameter: 26/66mm (front and rear)
- Drivetrain: Shaft-driven 4WD
- Gear Ratio: 8.27:1 (standard)
- Motor: Type 540 brushed
- ESC: HobbyWing THW 1060 included
- Chassis: TT-02
What's Included
- Mercedes-AMG GT3 EVO polycarbonate body with wing and canards
- TT-02 chassis kit (short wheelbase spec)
- Black mesh wheels and racing slick tires
- Type 540 brushed motor
- HobbyWing THW 1060 Electronic Speed Controller
- Sticker sheet and window masking tape
- Touring car urethane bumper sponge
- Assembly instruction manual
Needed to Complete
- 2-channel radio transmitter and receiver
- Steering servo
- 7.2-7.4V battery pack
- Compatible battery charger
- Tamiya PS polycarbonate paint
- AA batteries for transmitter
Summary
The Tamiya Mercedes-AMG GT3 EVO on the TT-02 chassis offers an excellent entry point into competitive RC touring car racing. With its aggressive GT3 bodywork, versatile shaft-driven 4WD platform, and included electronics, this kit provides everything needed to build a capable on-road racer. The highly adaptable TT-02 chassis allows for extensive tuning as your skills develop, making this an ideal choice for both newcomers and experienced hobbyists looking to add a premium European GT machine to their collection.
