Overview

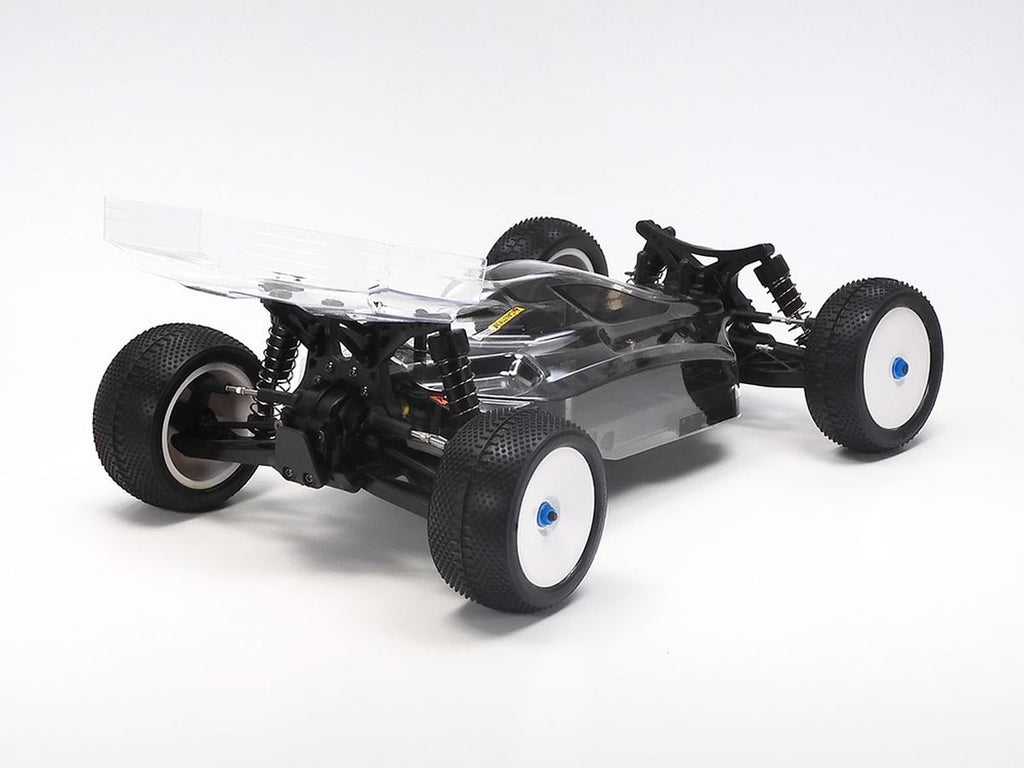

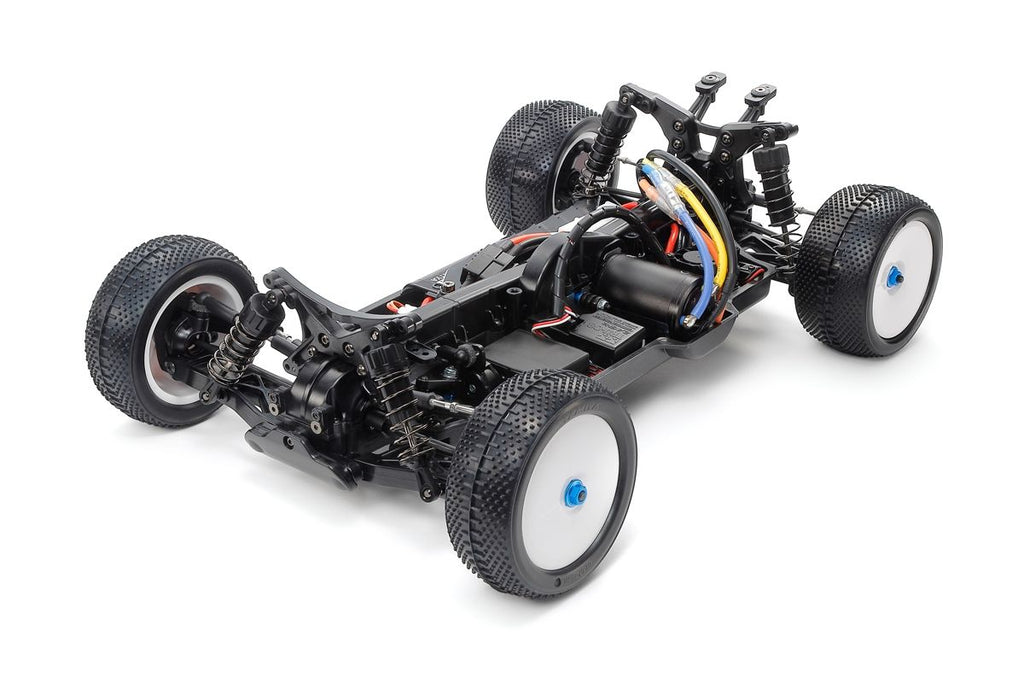

The Tamiya DB01SR is a 1/10 scale electric 4WD off-road buggy assembly kit built on the proven DB01 platform. A centrally located spur gear drives two belts of identical length for a balanced, efficient transfer of power to both axles.
This SR version comes loaded with a wide selection of Hop-Up Option parts for stronger off-road performance and durability, and it is dressed in the sleek Baldre body (Item 51338).
Key Features
- Twin belt-driven 4WD with identical-length belts and a central spur gear
- Spur gear and drive belts protected by plastic covers against dirt and debris
- Fiberglass-reinforced nylon chassis with integrated bulkheads
- Completely flat chassis underside for excellent skid characteristics
- Slipper clutch (from Item 54018) for stable off-road drive
- Oil-filled gear differentials (from Item 54329) with steel bevel gears (from Item 54428)
Performance Benefits
- Balanced belt drive delivers smooth, consistent power to all four wheels
- Steel bevel gears need less maintenance and handle high-power motors
- Universal shafts ensure efficient drive with minimal upkeep
- Hex hubs open up a wide choice of wheels and tires
Usage Notes
- Assembly kit: requires building and painting before use
- Battery compartment accepts square-shaped battery packs
- Box packaging can be used as a carrying case
- Original Baldre body stickers are not included
Technical Specs
- Brand: Tamiya
- Item No.: TAM58753
- Scale: 1/10
- Type: Electric 4WD off-road buggy chassis kit
- Drive: 2-belt 4WD with central spur gear
- Chassis: DB01 (fiberglass-reinforced nylon)
- Differentials: oil-filled gear diffs with steel bevel gears
- Body: Baldre (Item 51338)
What's Included
- (1) DB01SR chassis kit (unassembled)
- (1) Baldre body (Item 51338) with livery and window masking stickers
- (1) set Hop-Up Option parts: DB01 universal shafts front and rear (Items 54015/54016), aluminum hex hubs front and rear (Items 54668/54669), dish wheels front and rear (Items 51580/51581), TRF201 rear wing set (Item 54211), DB01 reinforced drive belts x2 sets (Item 54140)
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo
- Electronic speed control (ESC)
- Motor
- 7.2-7.4V battery pack with compatible charger
- Tamiya PS polycarbonate paint
Fitment
Compatible RC vehicles: Tamiya DB01 / DB01SR 1/10 4WD buggy platform. DB01 spare and option parts suit this chassis.
Summary
- Tamiya DB01SR 1/10 4WD belt-drive buggy kit
- Slipper clutch, oil-filled gear diffs and steel bevel gears
- Loaded with Hop-Up Option parts and the Baldre body
- Add radio, servo, ESC, motor, battery and paint to complete
