Description
Overview

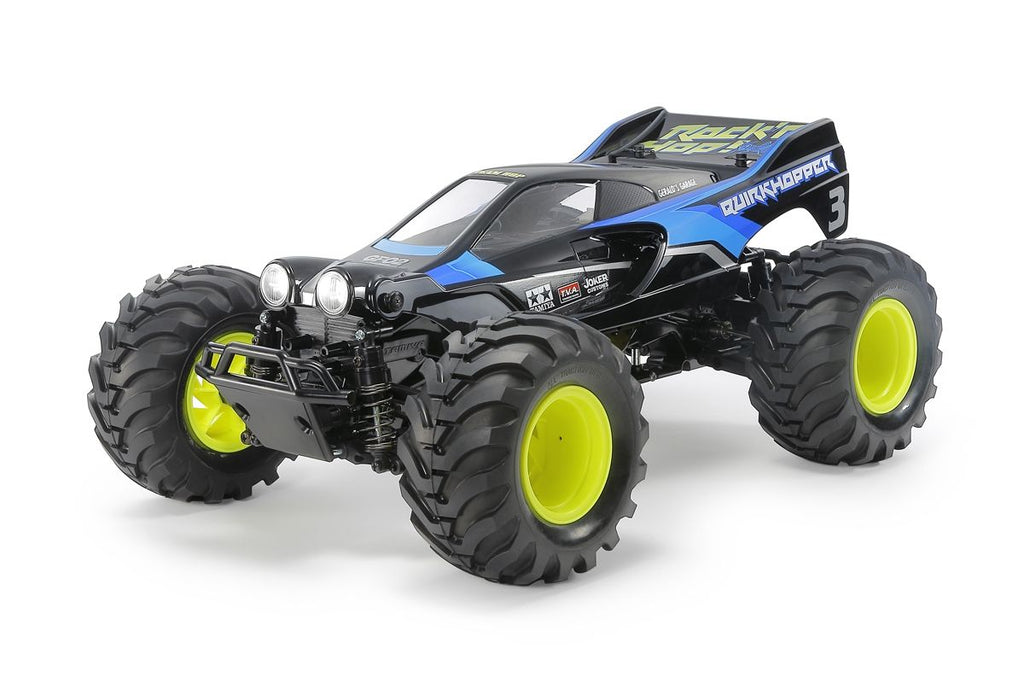

The Tamiya Quirkhopper is a uniquely original RC buggy that stands apart from typical scale replicas. This 1/10 scale 4WD off-road assembly kit features a distinctive bug-inspired polycarbonate body design created exclusively by Tamiya, paired with the capable gear-driven GF-02 chassis. The slim, aggressive body incorporates twin headlights, prominent side air intakes, and a flowing rear wing that seamlessly integrates with the body sides, creating an unmistakable presence on any terrain.
Built on the GF-02 chassis, the Quirkhopper delivers serious off-road performance thanks to its gear-driven 4WD system, centrally-mounted motor for optimal weight distribution, and massive 123mm large-diameter tires. The lightweight monocoque frame features sealed gearboxes to protect against dust and debris, while the long wheelbase and wide tread ensure stability across rough terrain. This is the perfect kit for builders who want something truly different—a character-driven design with proven Tamiya engineering underneath.
Key Features
- 1/10 scale R/C model assembly kit with 400mm length, 280mm width, 175mm height
- Original Tamiya bug-inspired polycarbonate body design
- 0.7mm thick lightweight rigid polycarbonate body shell
- Twin headlight design with separate polycarbonate parts
- Integrated rear wing flowing into body-side air intakes
- GF-02 gear-driven 4WD chassis with monocoque frame
- 123mm large-diameter semi-pneumatic tires
- Fluorescent yellow one-piece deep rim wheels
- 540-Type motor and ESC included
- 4-wheel steering (4WS) capability with optional transmitter
Chassis Features
- Low, central motor position for optimal balance
- Lightweight durable monocoque frame construction
- Integrated sealed gearboxes protect against dust and debris
- Ladder/pipe-inspired slim frame design
- Front and rear 3-bevel gear differentials
- 2-piece steering tie-rod system
- 267mm wheelbase with 222mm tread front and rear
- Three gear ratio options available with pinion changes
- Motor guard for enhanced off-road reliability
Performance Benefits
- Stable off-road handling from long wheelbase and wide tread
- 4-wheel independent double wishbone suspension
- Friction dampers for all-terrain adaptability
- Smooth cornering from front and rear differentials
- Powerful performance on and off-road with large-diameter tires
- Optional 4-wheel steering for tighter turning circles
- Central motor position lowers center of gravity
Usage Notes
The Quirkhopper excels on dirt, gravel, grass, and packed surfaces, while the large-diameter tires also provide capable on-road performance. The 4WS-ready chassis allows installation of a second servo and compatible transmitter for enhanced maneuverability. Recommended for builders ages 14 and up. Body requires painting with Tamiya PS polycarbonate spray paints—the included sticker designs complement a black painted body beautifully.
Technical Specs
- Scale: 1/10
- Length: 400mm
- Width: 280mm
- Height: 175mm
- Wheelbase: 267mm
- Tread: 222mm (front and rear)
- Tire Diameter: 123mm
- Tire Width: 60mm
- Drive: Gear-driven 4WD
- Chassis: GF-02 monocoque
- Body Material: 0.7mm Polycarbonate
- Motor: 540-Type brushed
- ESC: HobbyWing THW 1060 (2-3S compatible)
- Suspension: 4-wheel independent double wishbone
- Dampers: Friction dampers
- Differentials: 3-bevel gear type
- Gear Ratio: 18.03:1 (standard)
- Manufacturer: Tamiya
- Item Number: 58756
What's Included
- Complete unassembled GF-02 chassis kit
- 0.7mm polycarbonate Quirkhopper body (clear)
- Separate polycarbonate twin headlight parts
- Fluorescent yellow one-piece deep rim wheels (4)
- 123mm semi-pneumatic lug pattern tires (4)
- Dedicated sticker sheet with blue graphics
- 540-Type brushed motor
- Electronic speed controller
- Comprehensive instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Standard-size steering servo
- 7.2V-7.4V battery pack (NiMH or 2S LiPo)
- Compatible battery charger
- AA batteries for transmitter
- Tamiya PS polycarbonate spray paints
- Basic assembly tools
- Optional: 4WS-compatible transmitter and second servo
Summary
The Tamiya Quirkhopper GF-02 is a truly unique 4WD off-road buggy that combines original Tamiya design creativity with proven chassis engineering. Its bug-inspired body, massive 123mm tires, and gear-driven 4WD system deliver fun, stable performance across varied terrain. With included motor and ESC, optional 4-wheel steering capability, and that unmistakable character, the Quirkhopper is perfect for RC enthusiasts who want something genuinely different from the ordinary.
