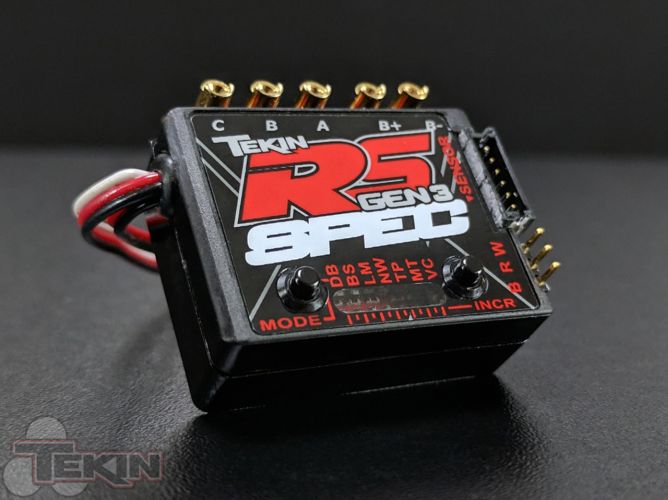

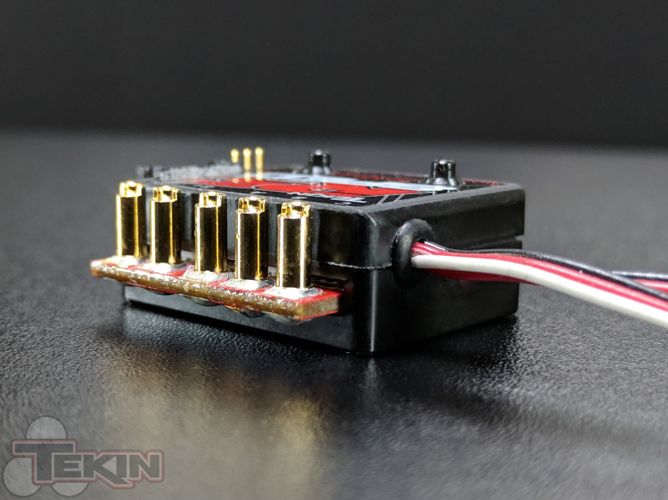

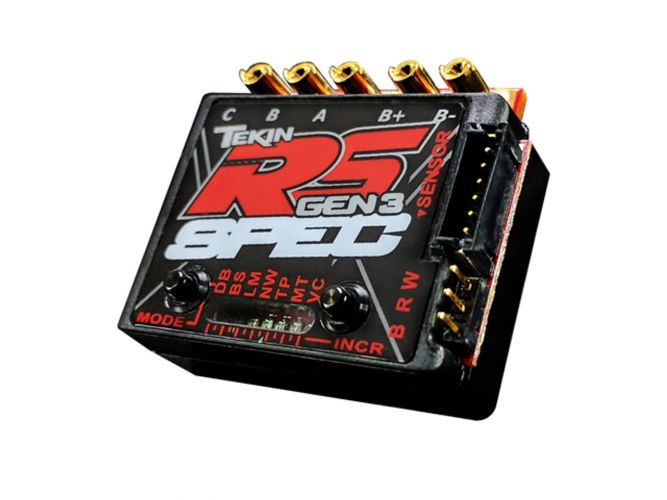

Tekin RS Gen3 Spec Sensored/ Sensorless D2 ESC TT1157

RS Gen3 Spec Sensored/Sensorless D2 ESC 13.5 Turn Limit

The RS GEN3 SPEC is designed for SPEC racing and offers professional performance at an affordable price. Packed with the latest hardware and HotWire programmable features like Data Logging, the RS SPEC gives you the tools and control you need to win. True ROAR SPEC mode with no timing or boost features with easily identifiable "blinky mode" LEDs. Rated for 13.5T and higher 540-size brushless motors, the RS SPEC is the ultimate in SPEC racing performance!

Next generation components and firmware make the RS GEN3 SPEC our smoothest, best-driving SPEC ESC ever.

Features:

• ROAR Spec Mode only - no Timing features
• New HD Solder Post Design
• QuickTune One Touch Programming
• 3rd Channel Input for On-The-Fly Drag Brake Adjustments
• Adjustable Torque Control *
• Adjustable Throttle and Brake Frequencies *
• HotWire Programming Port *
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• HDAC: High Density Copper PCB's
• Ultra-smooth and Precise Throttle and Braking Control
• * requires HotWire sold separately.

Specifications:

• Controls: Forward/Brake/Reverse
• Input Voltage: 2S LiPo / 4-7S NiMH-NiCD
• Motor Limit Brushless Mode 2S: 13.5T 2-pole 36mm Can
• Motor Limit Brushed 2S: 20Turn, 36mm Can
• Max Current: 70amps per phase*
• BEC: 6.0v / 3.7amps
• Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
• Weight: .80oz / 22.5g
• *per manufacturer specs

ON BOARD QuickTune™ PROGRAMMABLE FEATURES

• DB - Drag Brake (13 steps)
• BS - Brake Strength (13 steps)
• LM - Torque Limiter (7 steps)
• NW - Neutral Width (13 steps)
• TP - Timing Profiles 5 Preset - 2 Custom*
• MT - Motor Type
• Brushless Modes - FWD Only / FWD-REV / FWD-REV Delay / FWD-REV Delay REV Motor Direction
• Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay
• VC - Voltage Cutoff : 2S, 3S, Custom*
• * requires HotWire™ sold separately.
