Overview

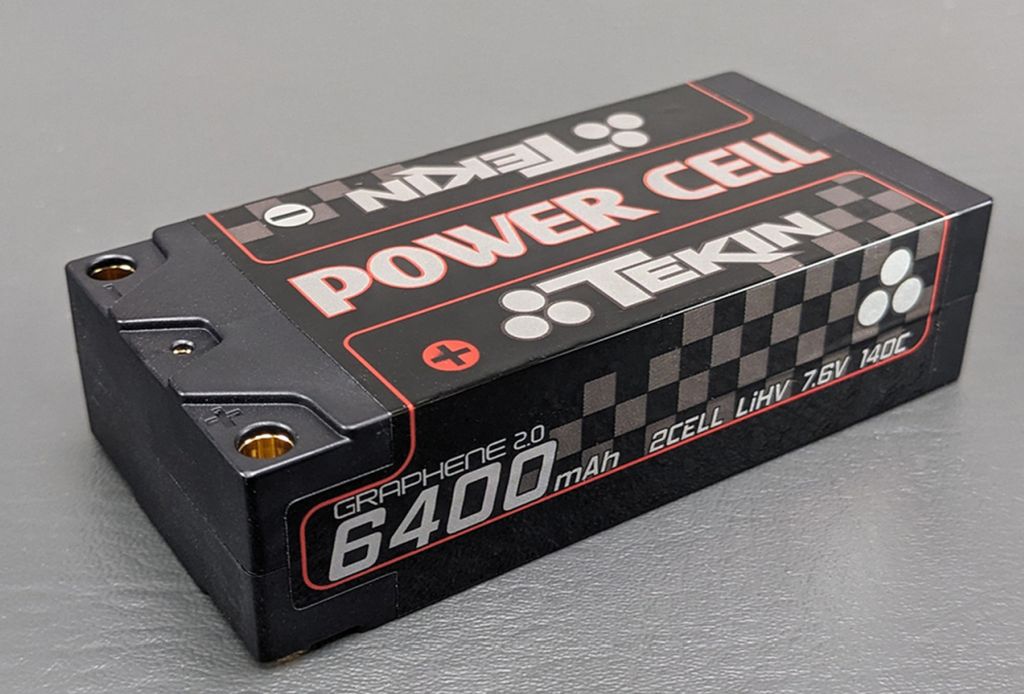

The Tekin 2S HV 7.6V 6400mAh 140C Shorty LiPo Battery is a competition-grade LiHV battery designed for racers who need strong punch, consistent voltage, and flexible chassis weight placement. Built with advanced LiHV graphene cell technology, this shorty pack supports higher charge voltage for improved efficiency and sustained performance throughout the run.
The compact shorty form factor allows for optimal weight distribution and fore/aft tuning in modern racing chassis. With a 140C continuous discharge rating and 6400mAh capacity, this battery delivers the power and runtime competitive racers demand in 2WD and 4WD applications.
Key Features
- LiHV graphene cell technology for enhanced efficiency
- 140C continuous discharge rating
- 6400mAh capacity with shorty form factor
- Compact design for flexible chassis placement
- Gold-plated 5mm bullet connectors included
- Durable hardcase construction
Performance Benefits
- Higher voltage output than standard LiPo (8.7V fully charged)
- Allows fore/aft weight tuning for improved handling
- Strong, on-demand power delivery
- Consistent performance throughout race mains
- Low internal resistance for maximum efficiency
Usage Notes
- Designed for 1/10 scale vehicles using shorty battery layouts
- Ideal for 2WD and 4WD off-road racing, touring cars
- Requires LiHV-compatible charger (4.35V per cell)
- Compatible with ESCs rated for 2S LiHV operation
- Balance charge every cycle for optimal lifespan
Technical Specs
-
Chemistry: Lithium-Polymer High Voltage (LiHV)
-
Configuration: 2S2P
-
Nominal Voltage: 7.6V
-
Fully Charged Voltage: 8.7V
-
Storage Voltage: 7.8V
-
Capacity: 6400mAh
-
Discharge Rate: 140C continuous
-
Max Continuous Current: 896A
-
Energy: 48.64Wh
-
Dimensions: 96 × 47 × 25mm
-
Weight: 229g
-
Connector: 5.0mm bullet connectors
-
Balance Port: 2.0mm bullet
What's Included
- (1) Tekin 2S HV 7.6V 6400mAh 140C Shorty LiPo Battery

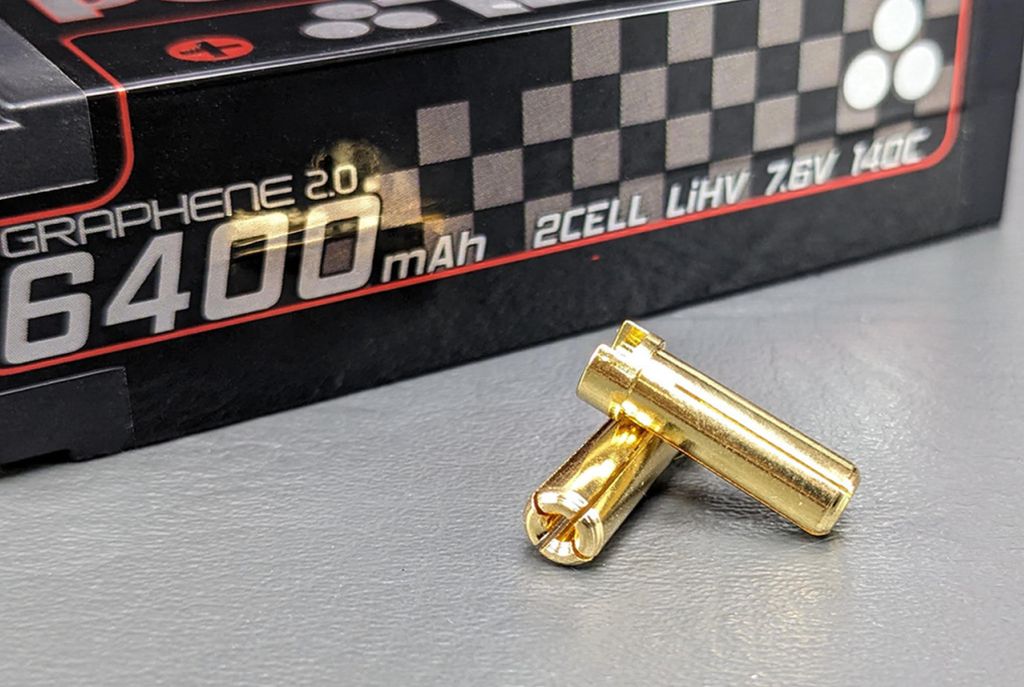

- (2) 5.0mm high-power bullet connectors
Summary
The Tekin 2S HV 6400mAh 140C Shorty Battery combines advanced LiHV technology with a compact form factor for competitive RC racing. With strong discharge capability, flexible chassis placement options, and professional-grade construction, this battery is built to win.
