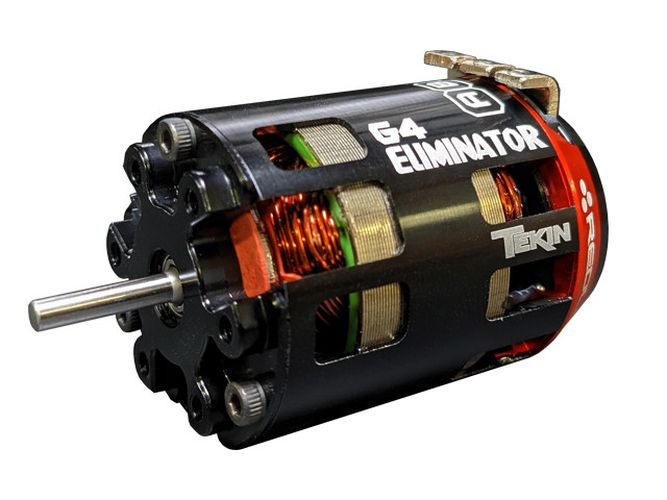

Tekin's fourth generation brushless motors are engineered for award-winning performance. Utilizing the best materials available they redesigned the GEN4 to cut weight while reducing resistance, resulting in a purebred racing machine. From Drag Racing to 4Mod, the GEN4 motors handle all situations, providing smooth power and control across all RPMs when you need it. The GEN4 Modified is competition performance with the speed you need to win.
Features:
- CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
- Neodymium Sintered Magnet
- Precision Engineered for Maximum Energy Conversion
- High Purity Copper Windings Maximize Conductivity
- Dual-Plug Sensor Wire Harness for use with all Sensored and Sensorless Systems
- Anodized Endbell Plates Maximize Corrosion and Wear Resistance
- High RPM Precision Bearings
- Oversized Front Bearing
- Legal in Major Governing Race Bodies
- ROAR Approved
Specs:
- or Turns: 2.0T
- Input Voltage: 1S-2S LiPo/LiHV / 4.2V-8.7V
- Weight: 5.1oz / 145g
- Shaft Size: 3.18mm / 1/8in
- Motor Length: 50.25mm / 1.987in
- Motor Diameter: 35.85mm / 1.40in
- Bearing Dimensions: Front 4 x 13 x 5mm / Rear 1/8 x 3/8 x 5/32in
- Rotor Size: 13.5mm Ultra Torque Yellow
- Max Operating Temperature: 180F / 82C
- Max RPM: 100,000
- Mounting Pattern: M3 @ 25.4mm / M3 @ 1.0in
- Rebuildable: YES
