Overview

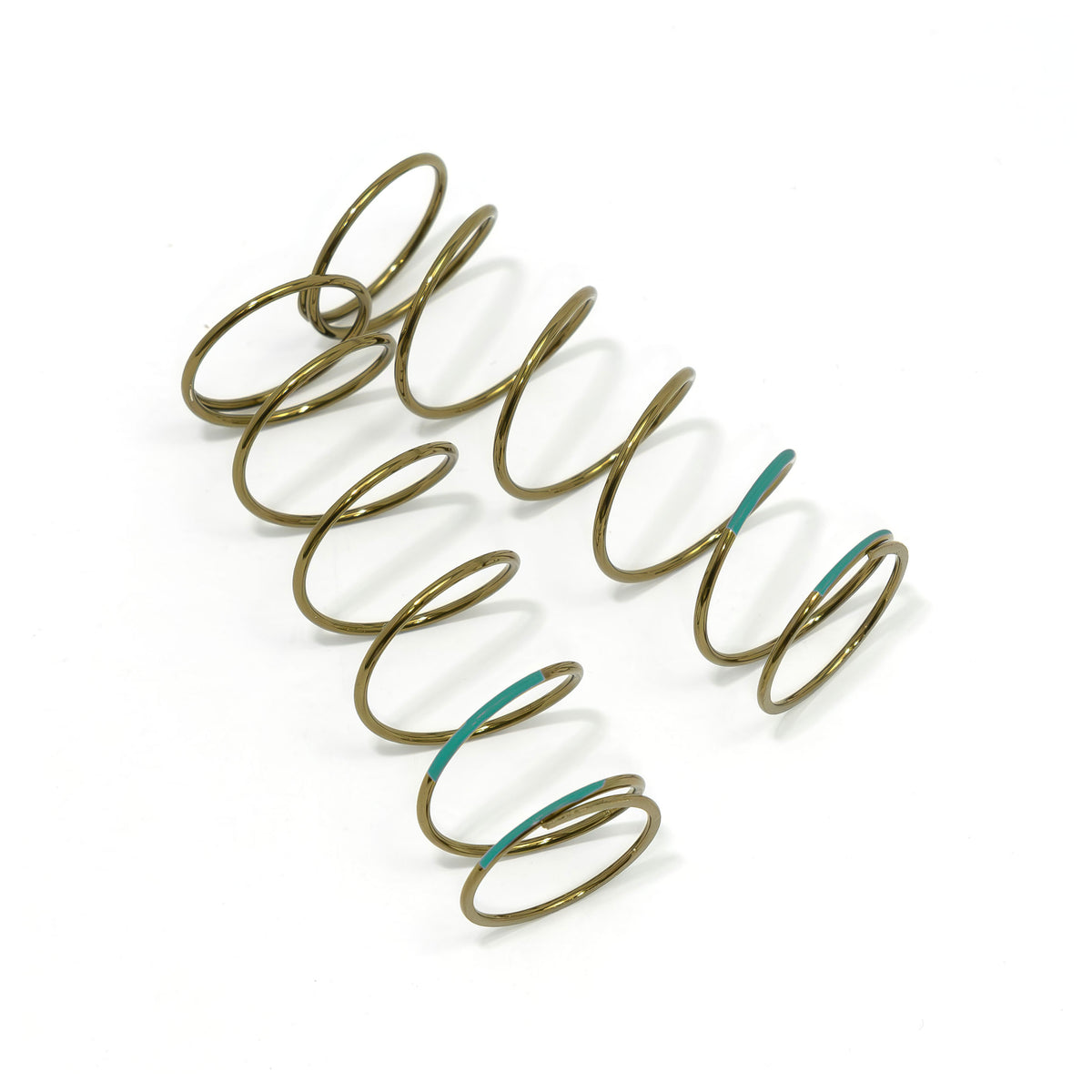

Tekno RC's 68mm shock springs are the short-spring option built for lowered shock towers and shorter shocks. This set is wound from 1.4mm wire with 7.0 active turns and finished in green, right in the middle of the nine-step range and a sensible baseline to tune around.
The 68mm range runs stiffer than Tekno's previous springs, covering 4.18 lb/in to 5.17 lb/in across nine coil counts from 8.0 turns down to 6.25 turns. Fewer turns over the same free length means a higher rate, so you can walk chassis balance up or down in small, repeatable steps without touching oil or pistons.
Key Features
- 68mm free length, intended for lowered shock towers and shorter shocks
- 1.4mm wire with 7.0 active turns
- Green color coding for fast identification in the pits
- Can be used on the front and/or rear of compatible vehicles
- Part of a nine-step range from 8.0T down to 6.25T
Performance Benefits
- Added support through the middle of the shock stroke
- Quicker suspension response on rough or high-grip surfaces
- A more planted feel over bumps and through long corners
- Fine rate steps between colors let you tune in small increments
Usage Notes
- Supplied as a pair — you need two sets to change both front and rear
- Write the color and turn count on your setup sheet before you change anything
- White (8.0T) is the softest in this range; blue (6.25T) is the stiffest
- Designed around lowered towers and shorter shocks — confirm your shock length first
- Replace any spring that has taken a hard hit or lost free length
Technical Specs
- Brand: Tekno RC
- Item No.: TKR36031E
- Type: Shock springs
- Free Length: 68mm
- Wire Diameter: 1.4mm
- Active Turns: 7.0T
- Color: Green
- Position: Front and/or rear
- Quantity: 2 springs
- Country of Origin: Taiwan
What's Included
- (2) 68mm shock springs, 1.4mm x 7.0T, green
Fitment
Compatible RC vehicles: Tekno RC EB48 2.0, EB48 2.1, EB48 2.2, NB48 2.0, NB48 2.1 and NB48 2.2 — front and/or rear.
Summary
- 68mm springs for lowered shock towers and shorter shocks
- 1.4mm wire, 7.0 turns, green color code
- Stiffer overall than Tekno's previous spring line
- Pair of springs, usable front or rear
