Overview

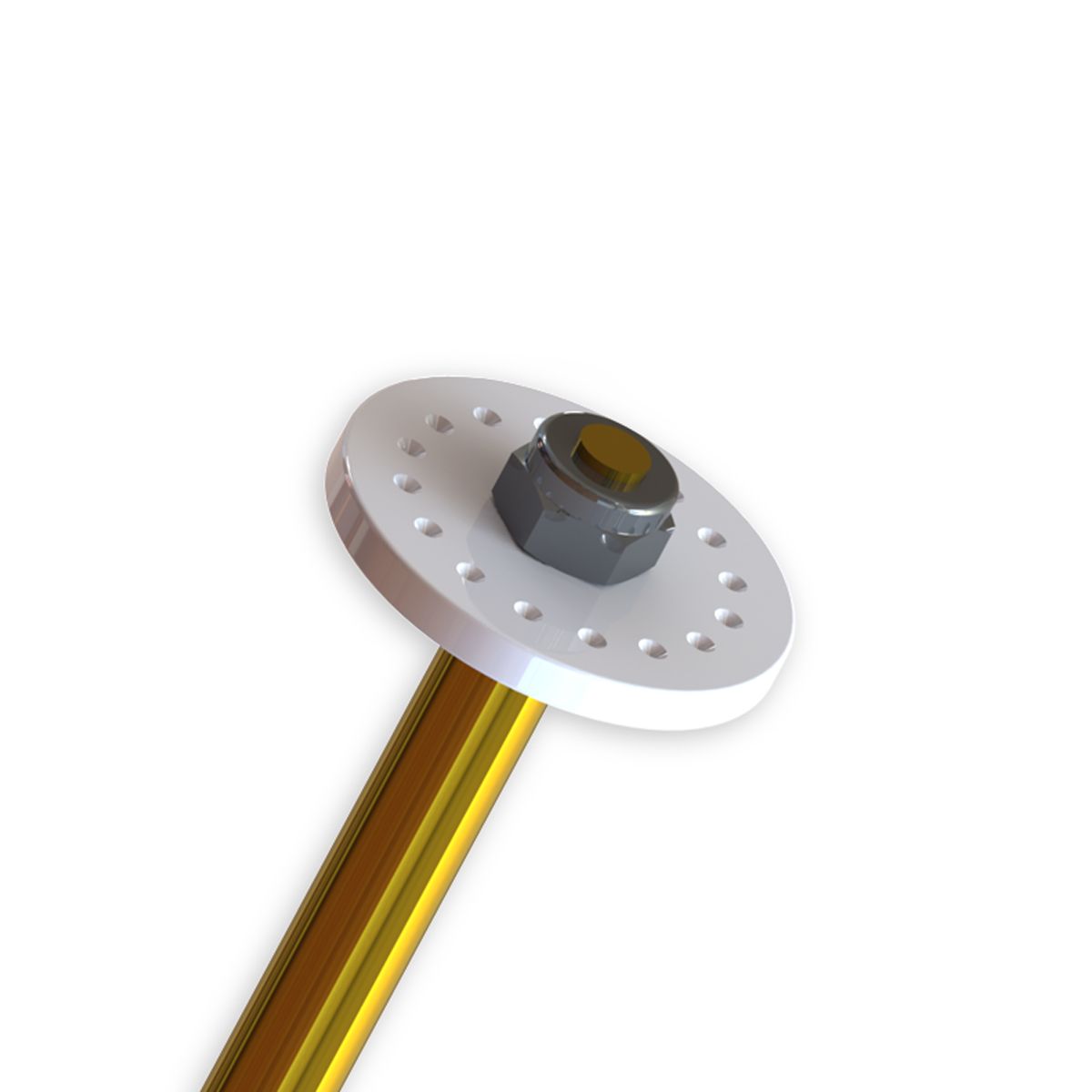

These Tekno RC shock piston blanks are CNC machined from self-lubricating Delrin with a flat/tapered profile. Each blank has 16 dimples machined in as drilling guides, so you can create your own hole pattern for fully custom shock damping.
Tekno RC designs them for its vehicles and other vehicles that use 16mm bore shocks. Machined pistons hold tight tolerances, and the self-lubricating material helps the piston move smoothly in the shock body. The shock shaft and nut are sold separately.
Key Features
- Genuine Tekno RC CNC machined piston blanks
- Self-lubricating Delrin material
- Flat/Tapered profile
- 16 machined dimples for easy drilling
- Made for 16mm bore shocks
Performance Benefits
- Tight machining tolerances for consistent damping
- Self-lubricating material for smooth shock action
- Full control over hole count and size
- A premium base for building race shocks
Usage Notes
- Drill on a drill press or piston jig for straight, accurate holes
- Deburr holes and build matched pairs per axle
- Shock shaft and nut are sold separately
- Rebuild with fresh shock oil after installing new pistons
Technical Specs
- Brand: Tekno RC
- Item No.: TKR6160
- Type: Shock piston blanks
- Construction: CNC machined
- Material: Delrin (self-lubricating)
- Profile: Flat/Tapered
- Dimples: 16
- Shock size: 16mm bore
- Scale: 1/8 and 1/10
- Country of Origin: Taiwan
What's Included
- (4) Tekno RC CNC Delrin shock piston blanks, flat/tapered
Fitment
Compatible RC vehicles: Tekno RC EB48 2.0, EB48 2.1, EB48 2.2, EB48.3, EB48.4, ET48 2.0, ET48 2.2, ET48.3, MT410, MT48 2.0, NB48 2.0, NB48 2.1, NB48 2.2, NB48.3, NB48.4, NT48 2.0, NT48 2.2, NT48.3 and SCT410.3 vehicles, plus other vehicles that use 16mm bore shocks.
Summary
- Genuine Tekno RC CNC Delrin piston blanks
- Flat/Tapered profile with 16 drilling dimples
- Fits Tekno RC 16mm bore shocks
- Shock shaft and nut sold separately
