WS Deans Ultra Plug HB High‑Temp Black Male & Female Pair
with 3/16″ Heat Shrink (1310)
Overview
High‑Performance Power Connector Pair for RC Systems
The WS Deans Ultra Plug HB High‑Temp Male & Female Pair is a trusted, industry‑standard solution for high‑performance RC power connections. Designed for 12–16 gauge wire, these connectors deliver ultra‑low resistance, lightweight construction, and excellent heat tolerance, making them ideal for demanding racing, bashing, and flight applications.

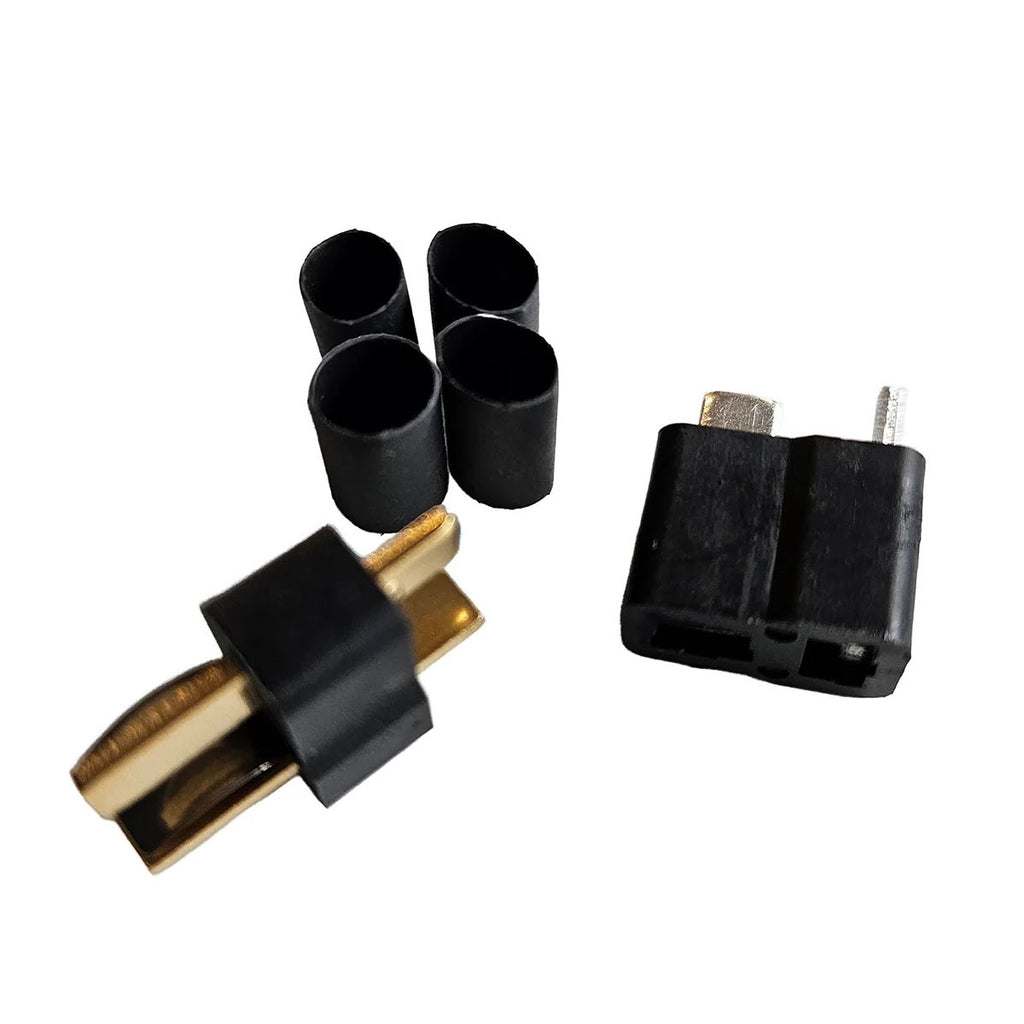

This set includes one black male and one black female Ultra Plug HB connector, along with 3/16″ heat shrink tubing, providing everything needed for a clean, professional‑grade installation.
This part is a direct replacement for WSD1320.

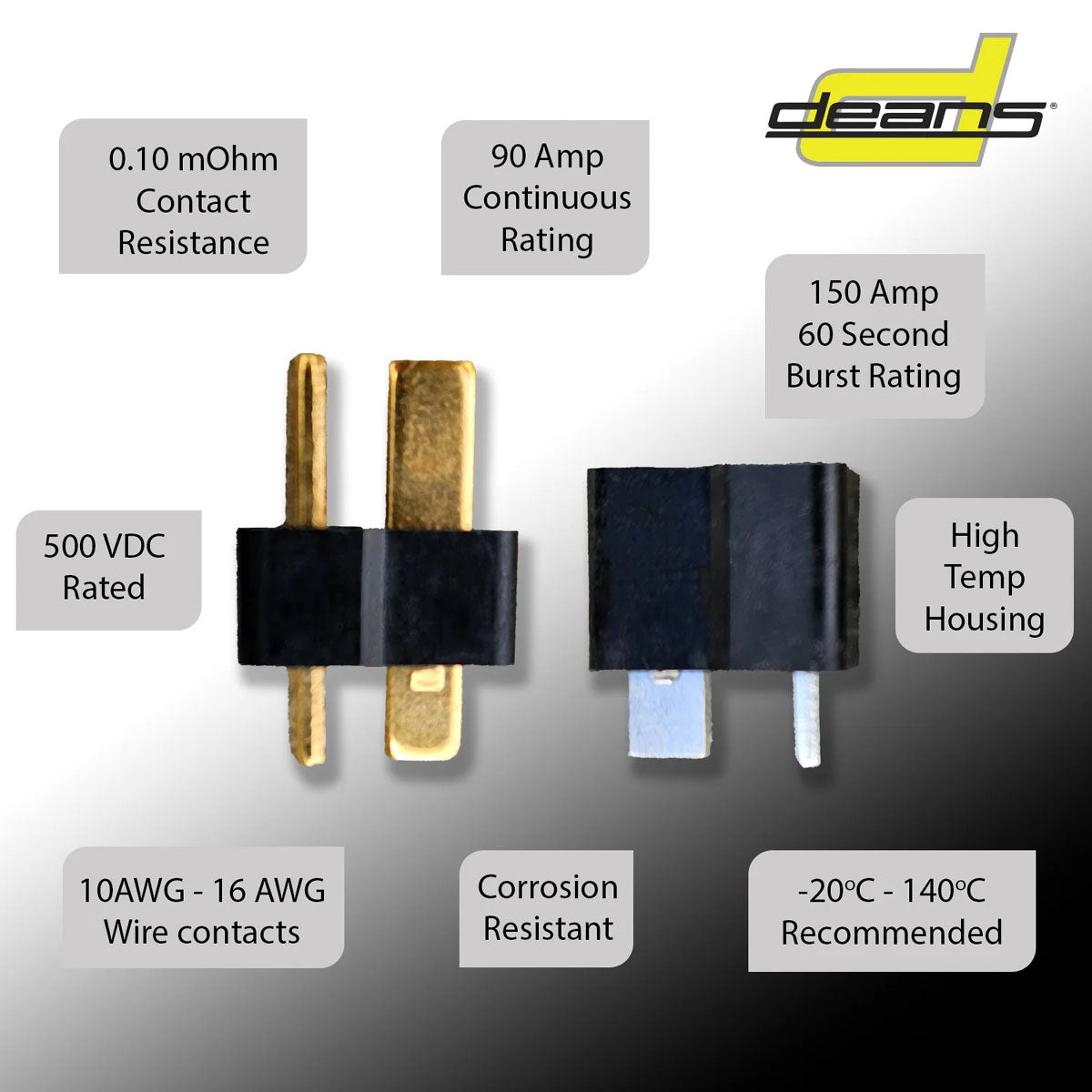

Connector Specifications
-
Connector Type: Ultra Plug HB (Male & Female)
-
Quantity: 1 male + 1 female
-
Color: Black
-
Wire Compatibility: 12–16 AWG
-
Included Heat Shrink: 3/16″ diameter

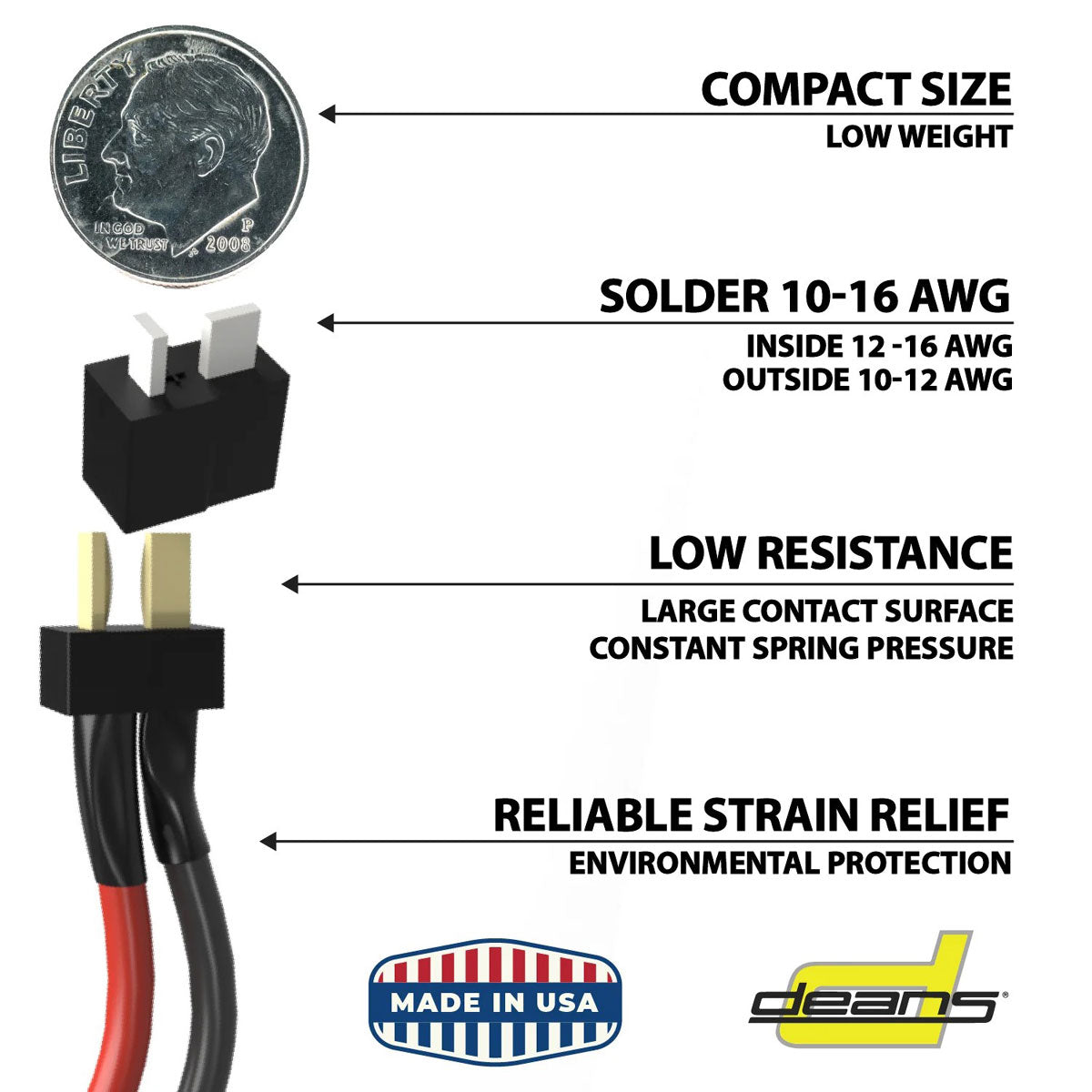

Performance & Reliability
- Ultra‑low resistance design for maximum power transfer
- High‑temperature housing for high‑current applications
- Lightweight and compact for efficient installations
- Reliable electrical contact under vibration and load
The Ultra Plug HB design ensures efficient power delivery from the battery to your ESC and motor with minimal loss.
Design & Construction
- Compact, race‑proven connector bodies
- High‑temperature molded housings
- Optimized solder cups for strong, clean solder joints
- Heat shrink included for insulation and strain relief
Application & Compatibility
Ideal For:
- Battery and ESC connections
- High‑performance RC cars and trucks
- Aircraft and electric flight systems
- Racing and competition builds
Compatible With:
- 12–16 gauge silicone wire
- Genuine WS Deans Ultra Plug HB connectors
Features
- Genuine WS Deans Ultra Plug HB connectors
- High‑temperature black housings
- Ultra‑low electrical resistance
- Optimized for 12–16 gauge wire
- Lightweight, compact design
- Includes 3/16″ heat shrink tubing
- Replacement for WSD1320
- Trusted industry standard for RC power systems

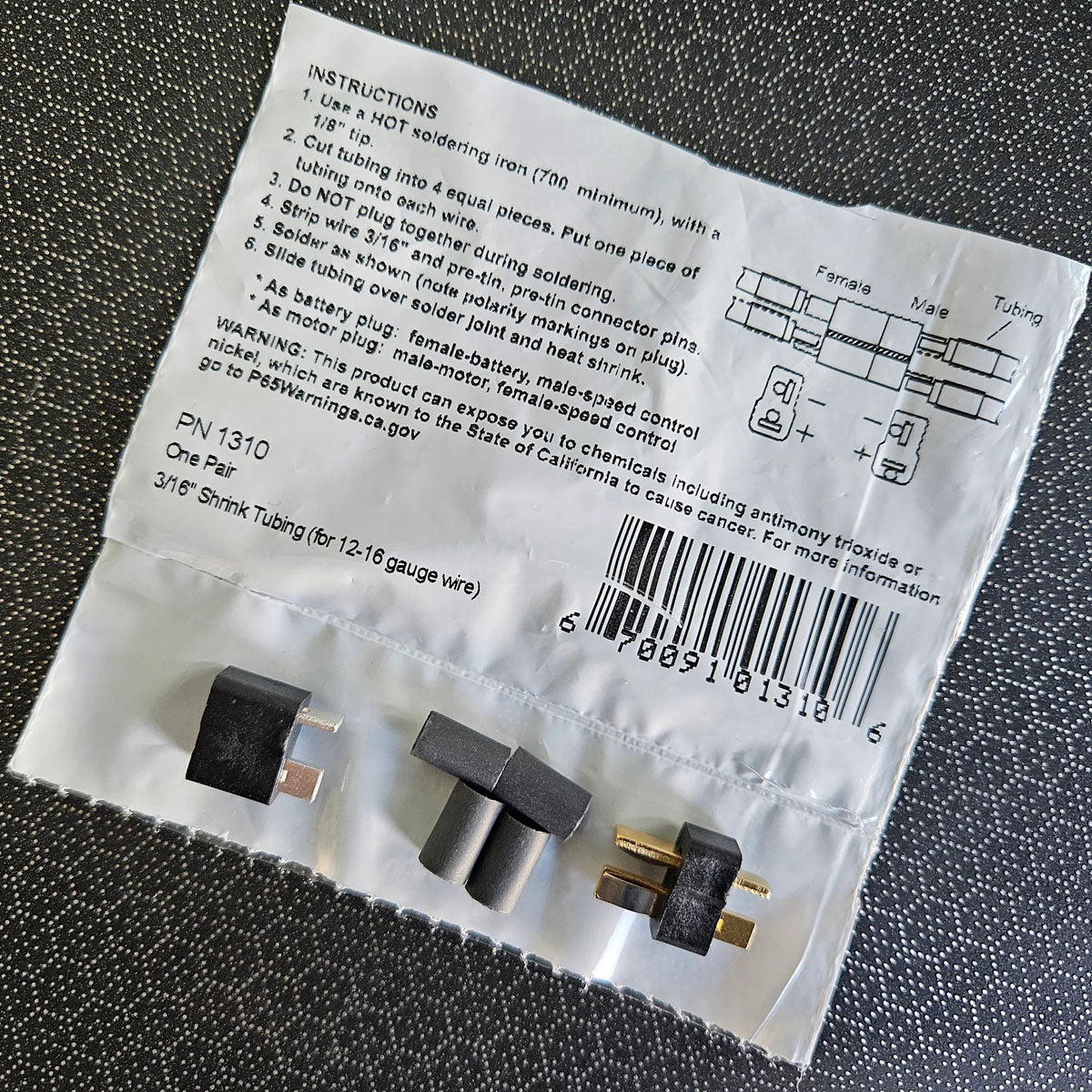

Installation & Usage Notes
- Use proper soldering technique and adequate heat
- Slide heat shrink onto wire before soldering
- Verify correct polarity before final assembly
- Allow solder joints to cool fully before use

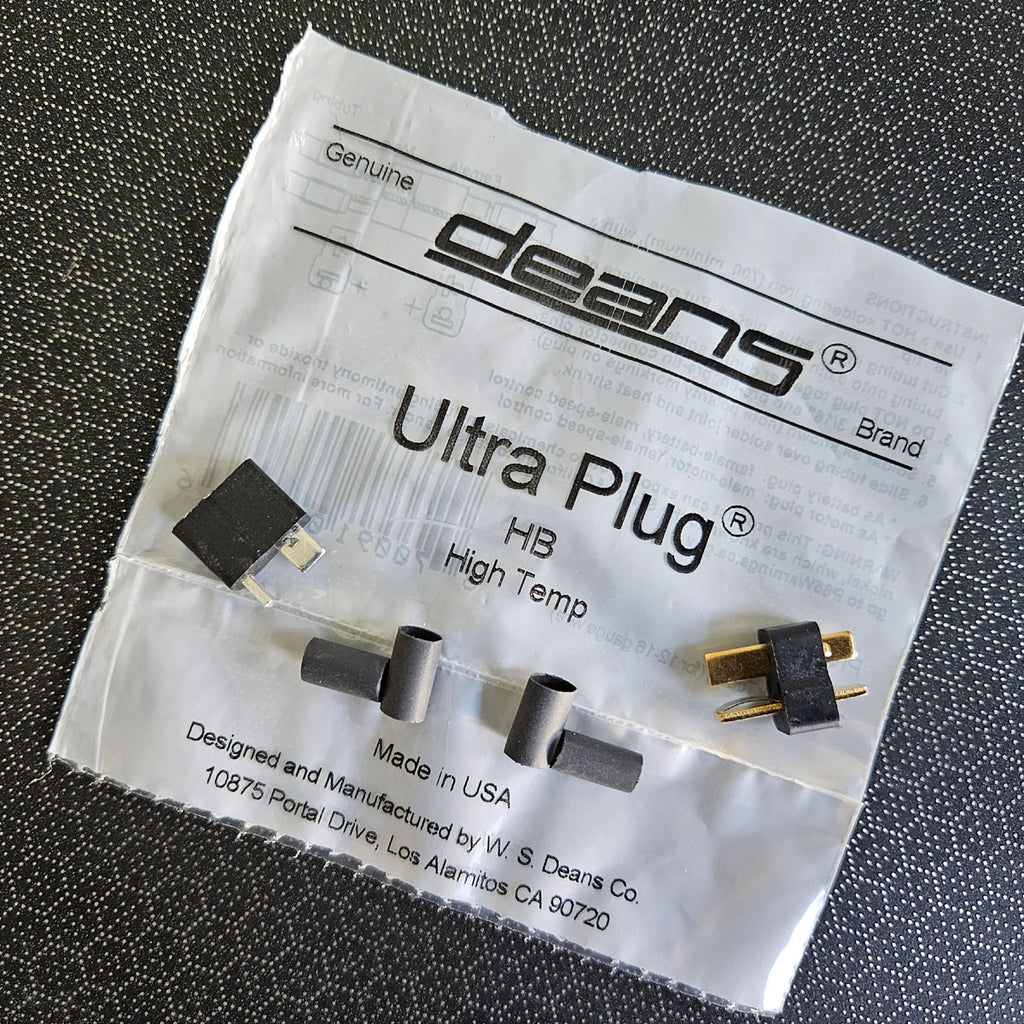

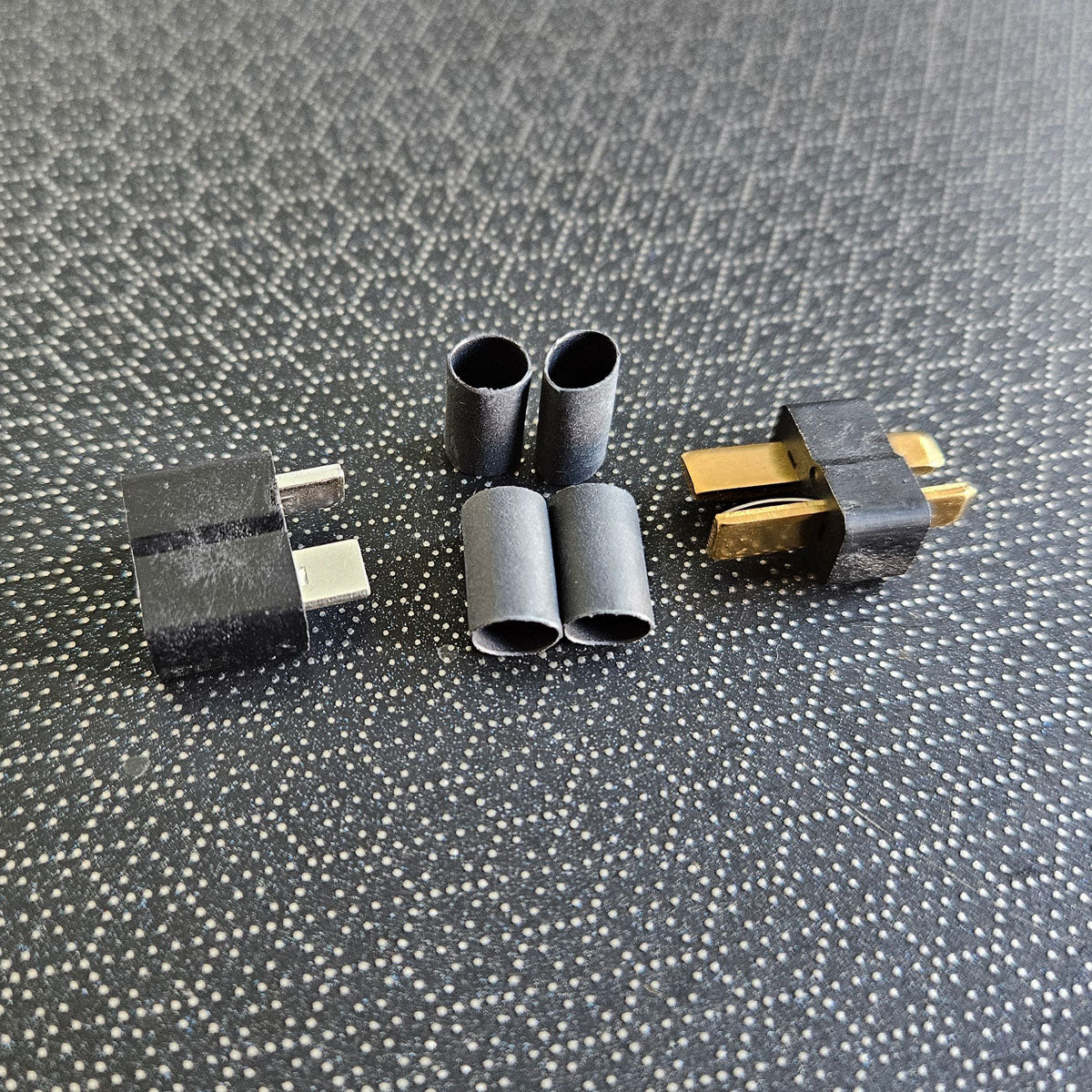

What’s Included
- (1) WS Deans Ultra Plug HB Male Connector – Black
- (1) WS Deans Ultra Plug HB Female Connector – Black
- (2) Pieces of 3/16″ heat shrink tubing
