WS Deans Ultra Plug HB High‑Temp Black Male & Female Pair
with 1/4″ Heat Shrink (1313)
Overview
Industry‑Standard High‑Performance Power Connector Pair for RC Systems
The WS Deans Ultra Plug HB High‑Temp Male & Female Pair is the industry standard for high‑performance RC power connections, trusted by racers and hobbyists worldwide. Designed for 10–12 gauge wire, these connectors deliver ultra‑low resistance, lightweight construction, and excellent heat tolerance, making them ideal for demanding competition and flight conditions.
This set includes one black male and one black female Ultra Plug HB connector, along with 1/4″ heat shrink tubing, providing a complete, professional‑grade solution for ESC or battery wiring upgrades.

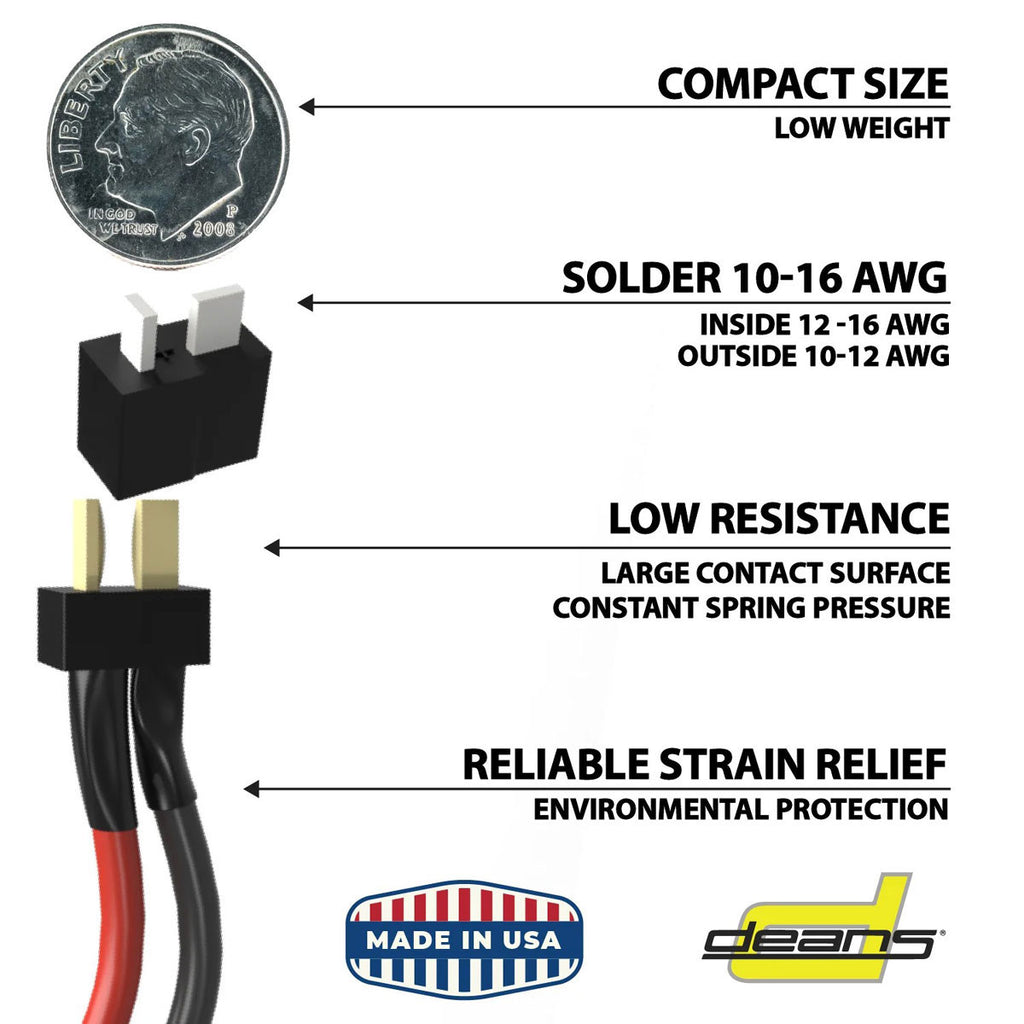

Connector Specifications
-
Connector Type: Ultra Plug HB (Male & Female)
-
Quantity: 1 male + 1 female
-
Color: Black
-
Wire Compatibility: 10–12 AWG
-
Included Heat Shrink: 1/4″ diameter
Performance & Reliability
- Ultra‑low resistance for maximum power transfer
- High‑temperature housing for high‑current loads
- Lightweight design minimizes electrical loss
- Reliable contact under vibration and stress
The Ultra Plug HB design is engineered to deliver more usable power to your system with minimal loss, even under demanding racing or flight conditions. [plazajapan.com]
Design & Construction
- Compact, race‑proven connector bodies
- High‑temperature molded housings
- Optimized solder cups for strong, clean solder joints
- Includes heat shrink for insulation and strain relief
Application & Compatibility
Ideal For:
- ESC and battery connections
- High‑performance RC cars and trucks
- Aircraft and electric flight systems
- Racing and competition builds
Compatible With:
- 10–12 gauge silicone wire
- Genuine WS Deans Ultra Plug HB connectors
Features
- Genuine WS Deans Ultra Plug HB connectors
- High‑temperature black housings
- Ultra‑low electrical resistance
- Optimized for 10–12 gauge wire
- Lightweight, compact design
- Includes 1/4″ heat shrink tubing
- Trusted industry standard for RC power systems
Installation & Usage Notes
- Use proper soldering technique and adequate heat
- Slide heat shrink onto wire before soldering
- Ensure correct polarity before final assembly
- Allow solder joints to cool fully before use
What’s Included
- (1) WS Deans Ultra Plug HB Male Connector – Black
- (1) WS Deans Ultra Plug HB Female Connector – Black
- (2) Pieces of 1/4″ heat shrink tubing
